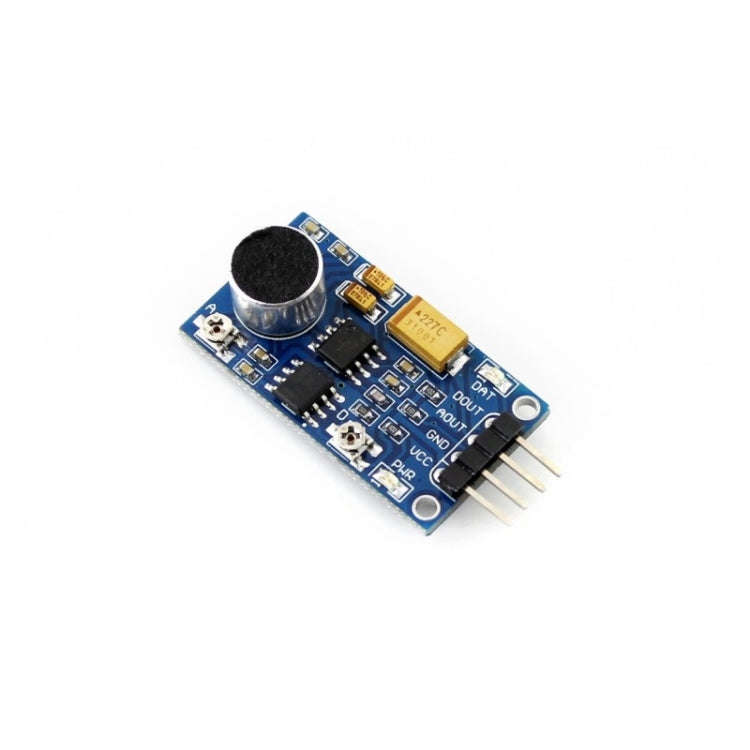

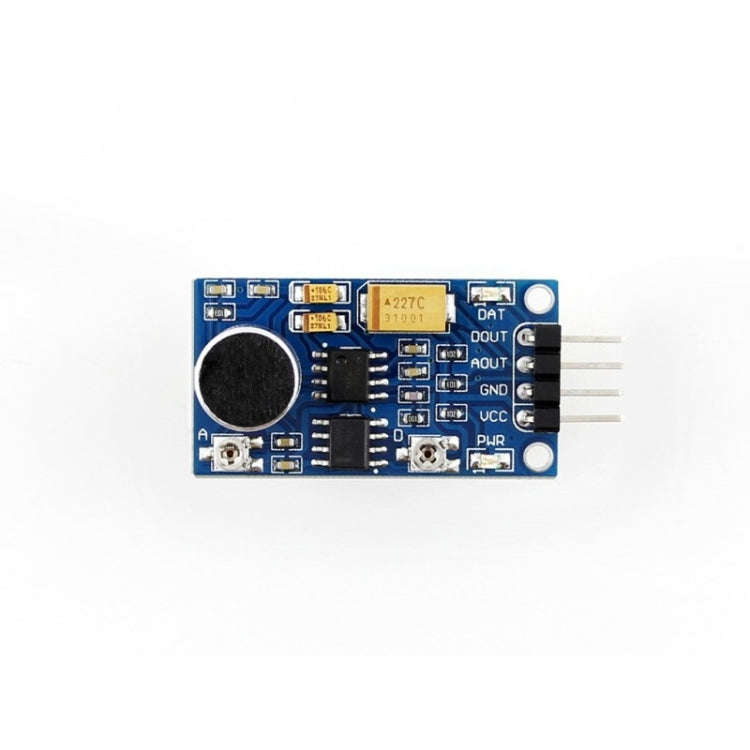

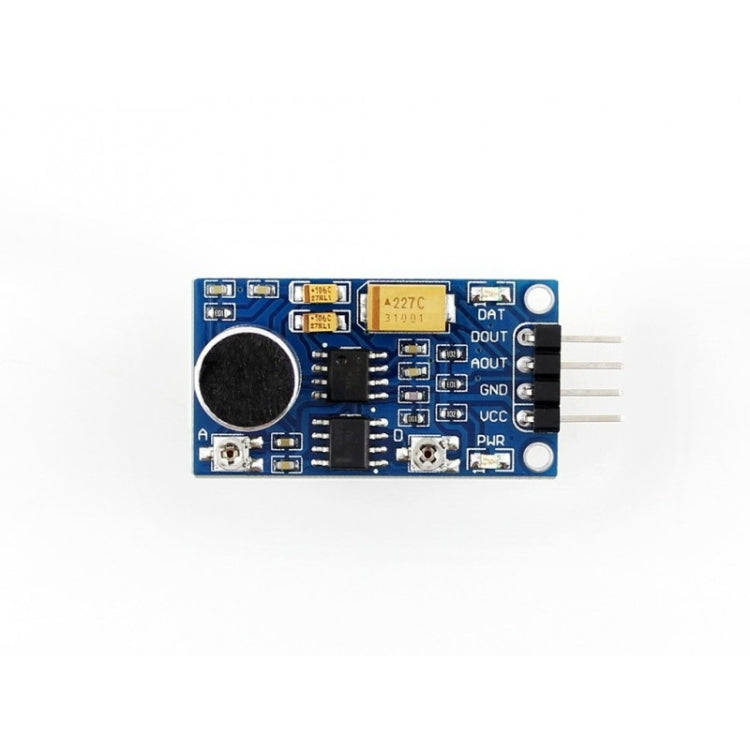

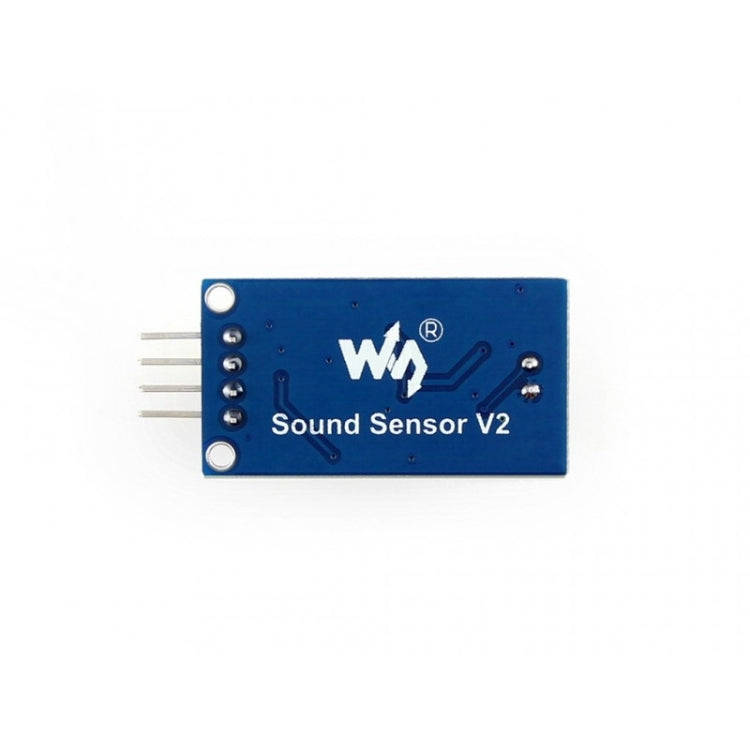

Waveshare Sound Sensor

New 10 available
R247.78
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY15926678
Bob Shop ID
628965831
Overview
1. Onboard audio power amplifier LM386
2. Audio signal gain up to 200
3. Adjustable accuracy
4. Signal output indicator

Specifications
1. Mic sensitivity: 52dB
2. Frequency range: 50Hz ~ 20KHz
3. Power: 3.3V ~ 5.3V

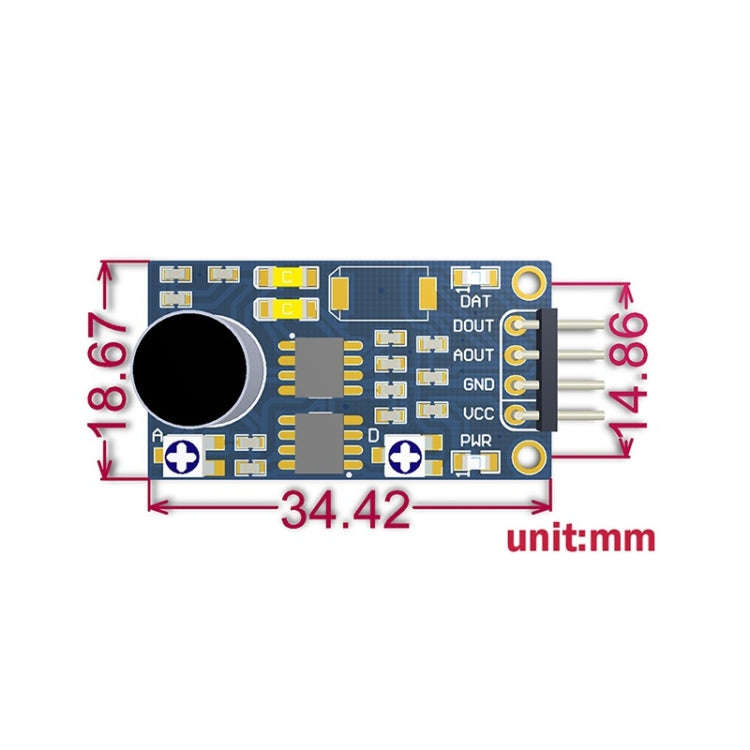

4. Mounting holes size: 2.0mm

Applications
1. Audio amplifier
2. Ambient sound detection
3. Sound level detection (unable to get exact dB value)

How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)

Package Contents
1. Sound Sensor x1
2. 4-pin custom connector jumper wire x1
