Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32
Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32 Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32
Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32
+3

Waveshare STLINK-V3MINIE In-Circuit Debugger And Programmer Board For STM32

New 100 available
R855.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0581
Bob Shop ID
621641968

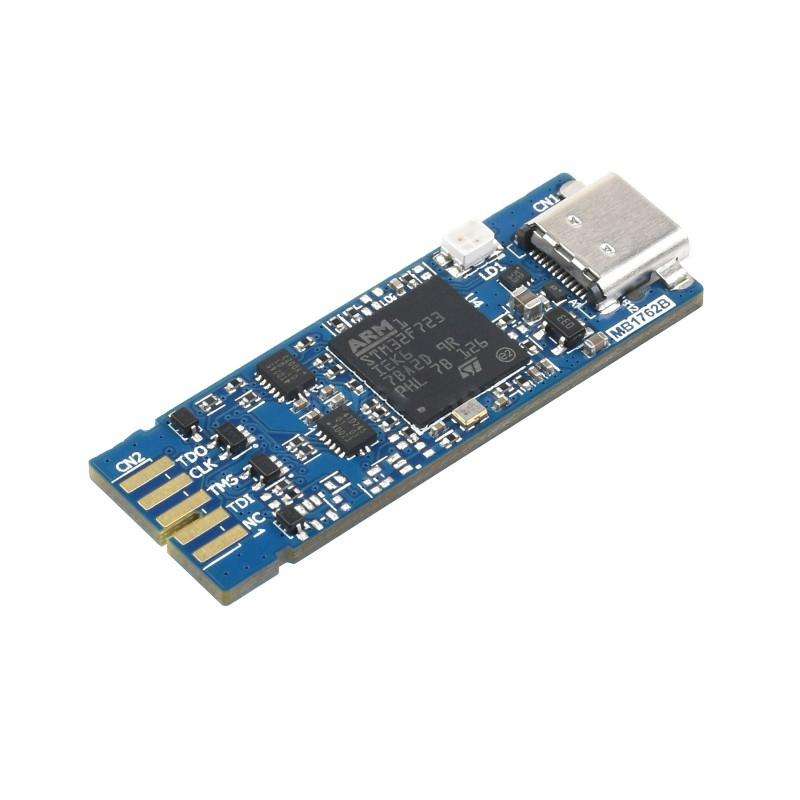

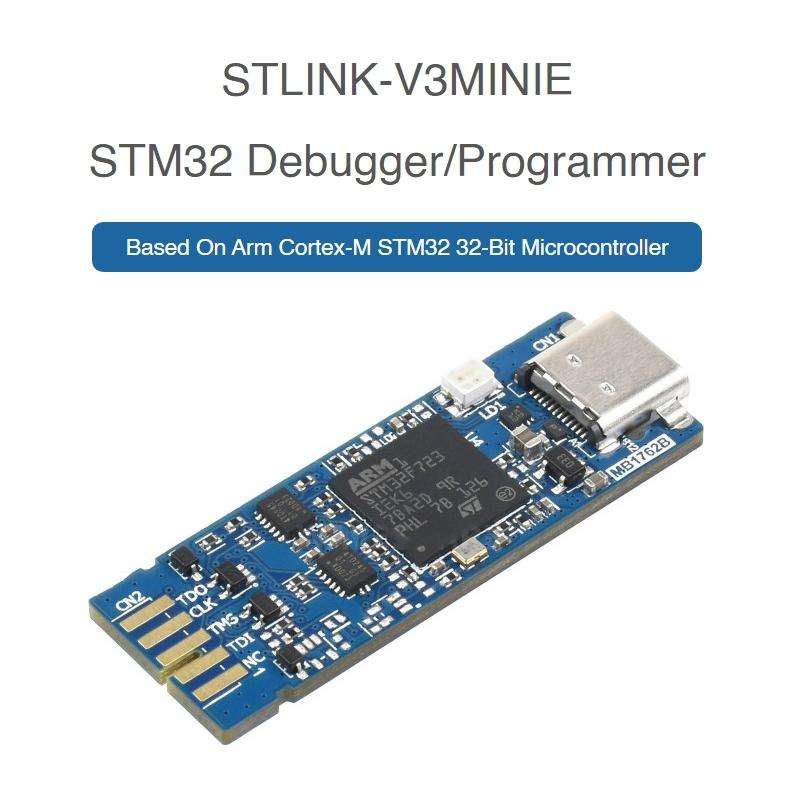

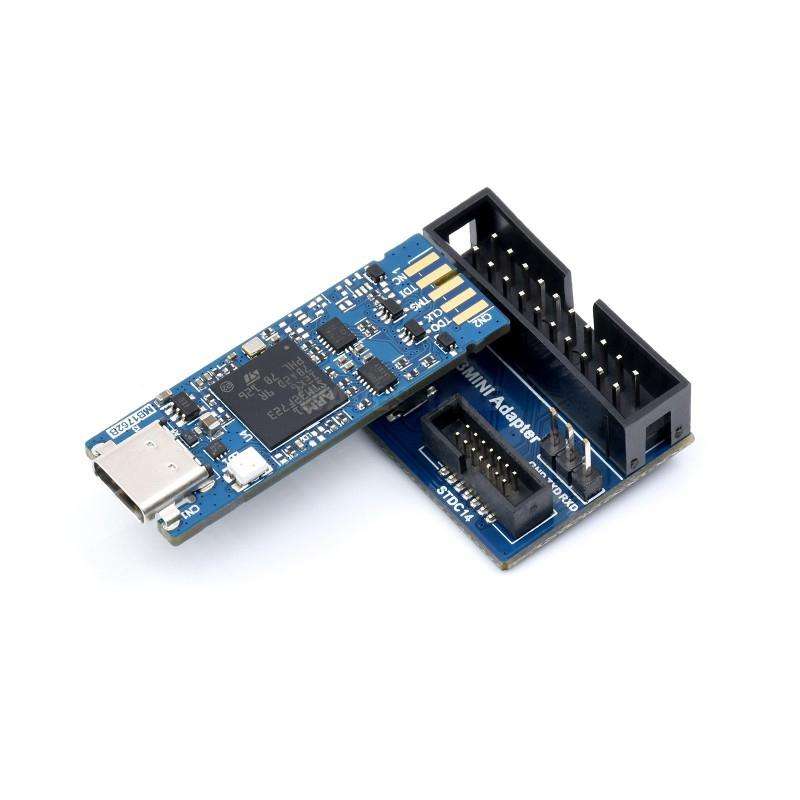

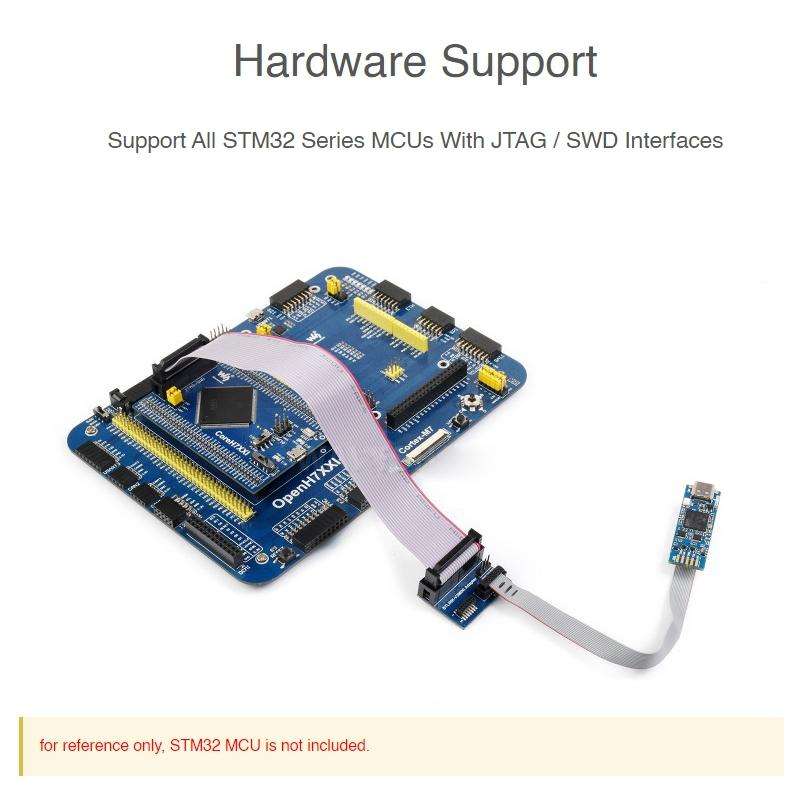

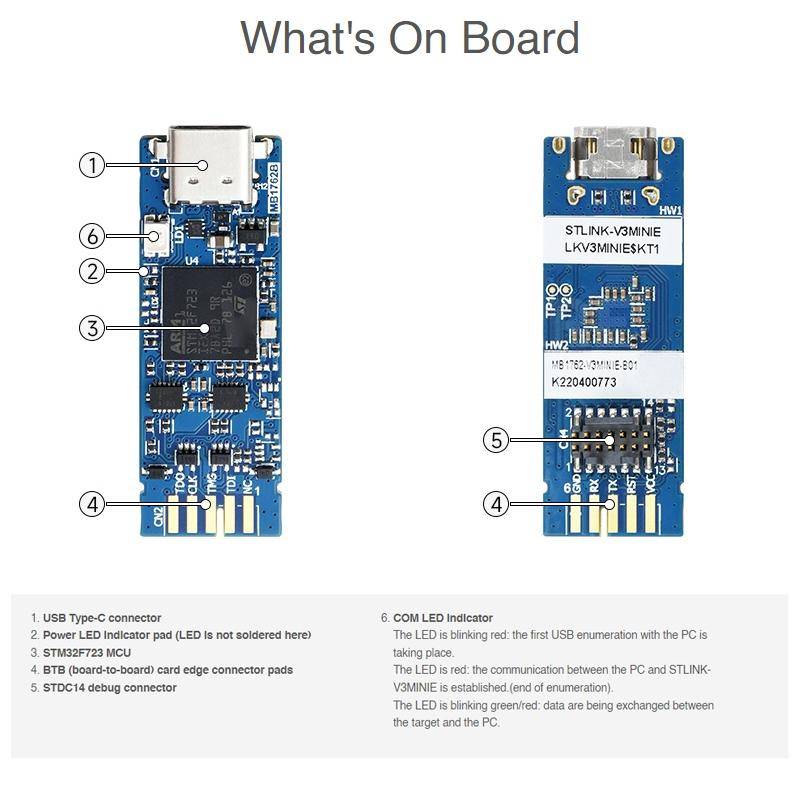

The STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers, portable and easy-to-use. Onboard JTAG/SWD interfaces for communicating with STM32 microcontroller, also provides a virtual COM port for the host PC to communicate with the target microcontroller through one UART.

Features:

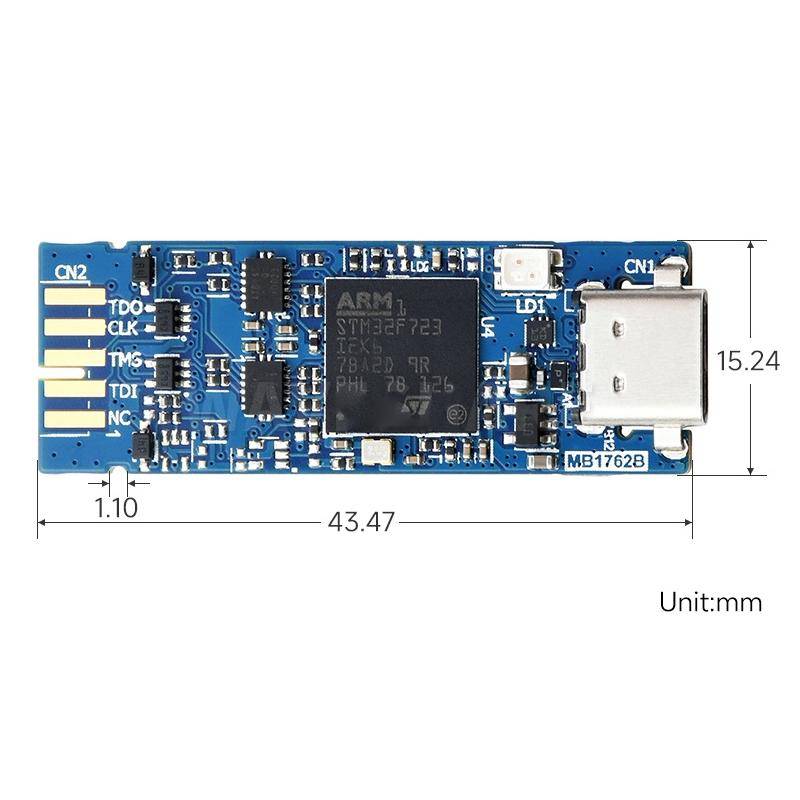

1. Tiny 15 mm x 42 mm stand-alone debugging and programming probe for STM32 microcontrollers

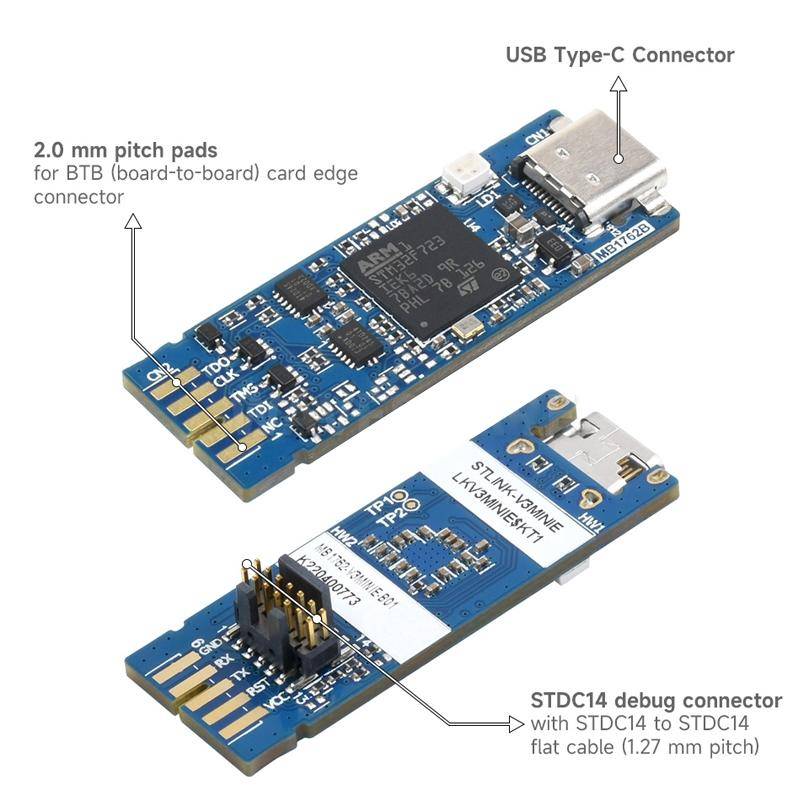

2. Self-powered through a USB Type-C connector
3. USB 2.0 high-speed interface
4. Probe firmware is updatable through USB
5. Support drag-and-drop Flash programming of binary files
6. Two color LEDs: communication, power
7. JTAG communication support up to 21 MHz
8. SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
9. Virtual COM port (VCP) up to 15 Mbps
10. 1.65 to 3.60 V application voltage support
