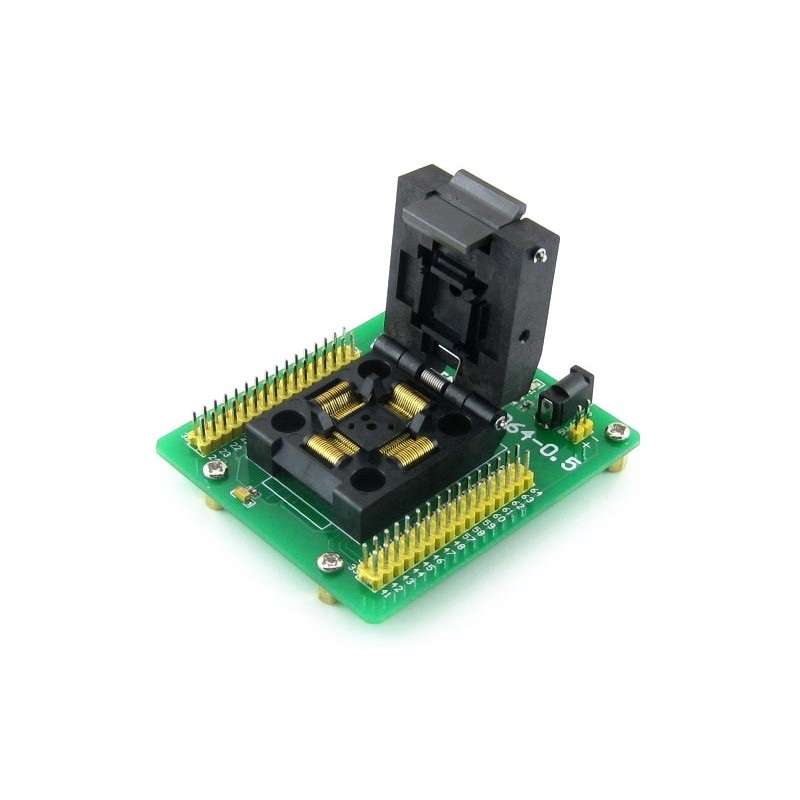

Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter
Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter Waveshare STM8-QFP64-0.5, Programmer Adapter

Waveshare STM8-QFP64-0.5, Programmer Adapter

New 10 available
Indicative market price: R3,212.00
R1,606.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY14345167
Bob Shop ID
683956437
Features
1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors

Supported Devices
STM8 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts
- STM8S207RxTx / STM8S208RxTx
- STM8Ax51x9T / STM8Ax52x9T / STM8Ax61x9T / STM8Ax62x9T

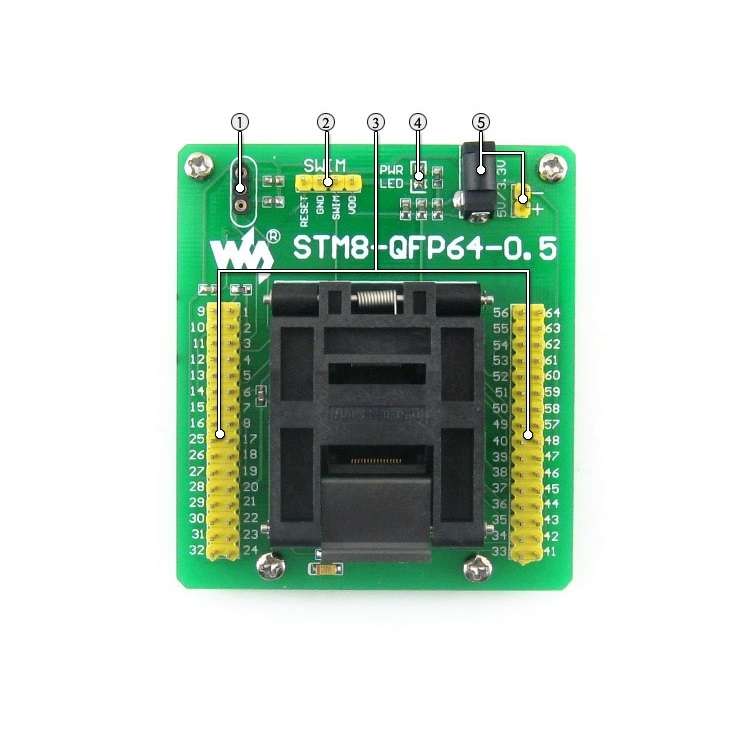

Photos
1. External crystal socket
- Insert crystal to the holes on two sides, regardless of the middle hole

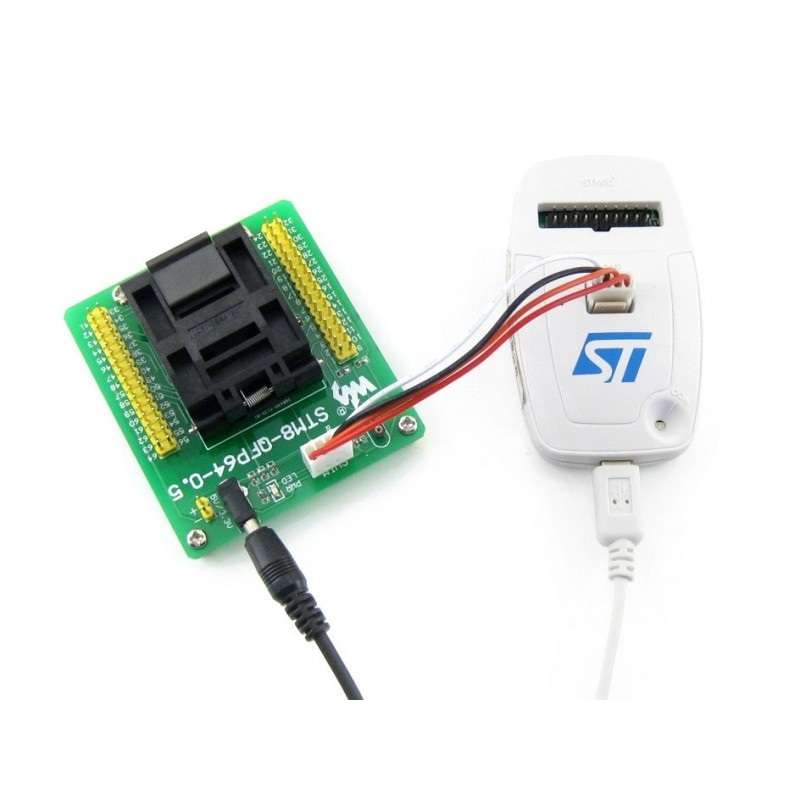

2. SWIM port
- For programming/debugging/testing
- Compatible with ST-LINK, ST-LINK/V2, etc.
3. Pin headers connected to MCU pins
- Clearly labeled with onboard marks
- Easy for testing and further expansion
4. Power indicator
5. Power input
- DC5V/3.3V

Package Contents
1. STM8-QFP64-0.5 × 1
2. USB power cable × 1


ZY14345167
