Waveshare Tracker Sensor, Infrared Line Tracking

New 100 available
R226.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY13866703
Bob Shop ID
621642082

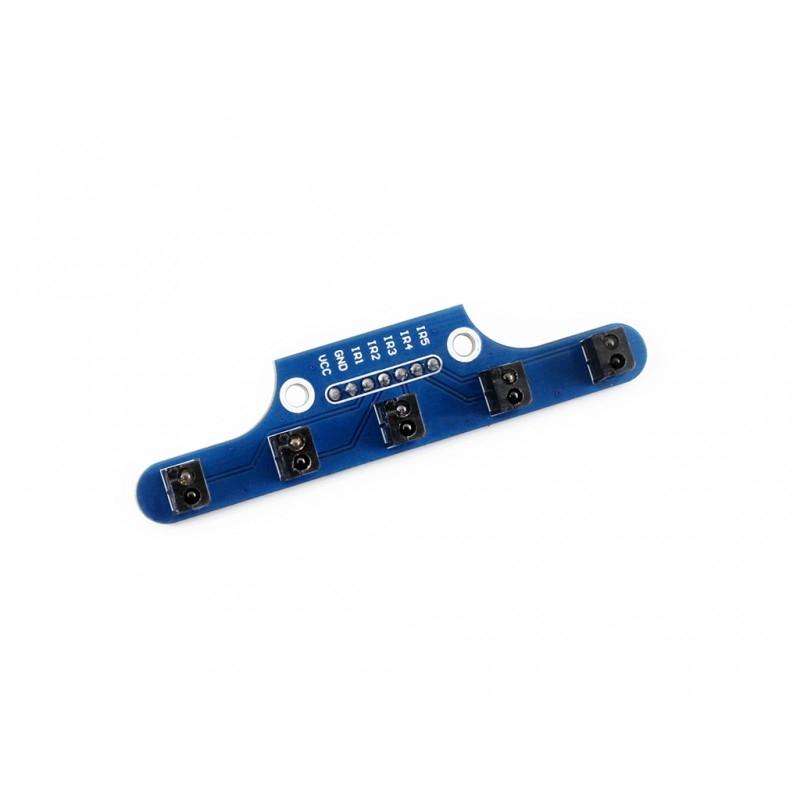

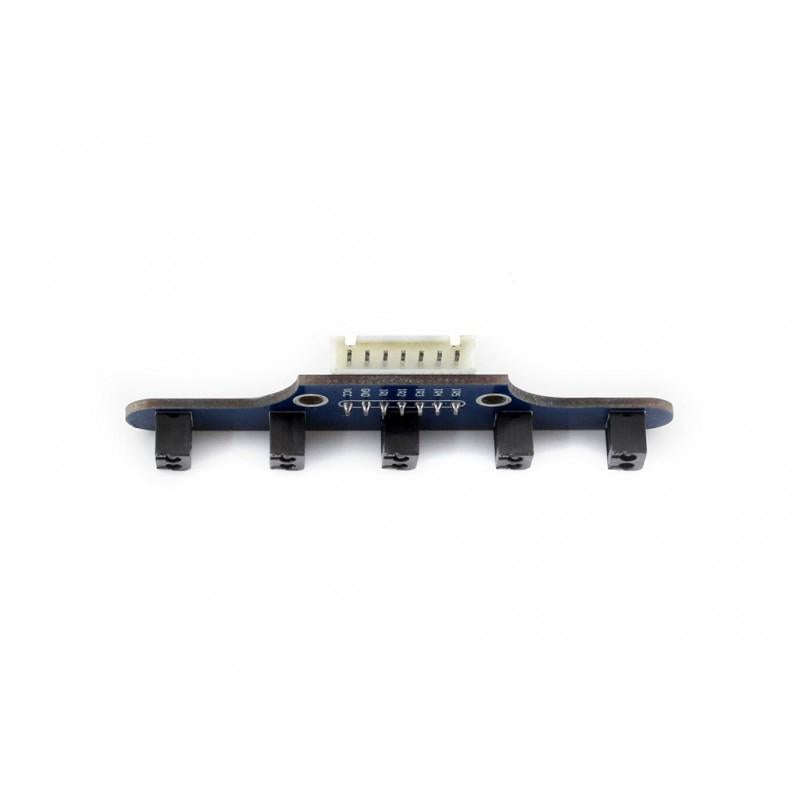

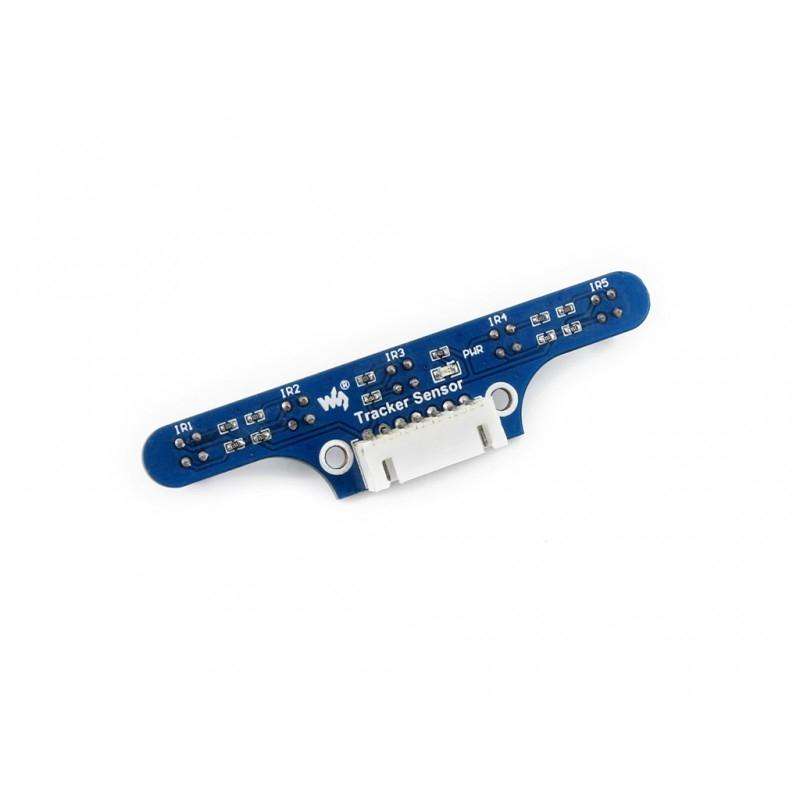

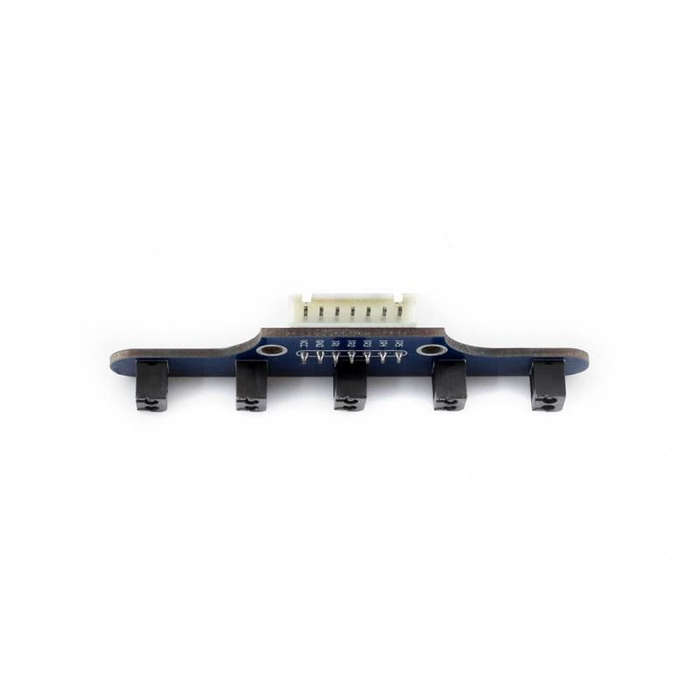

1. 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
2. High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable

Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 78mm 18mm
3. Detector spacing: 16mm
4. Mounting holes size: 3mm
5. Detection range: 1cm ~ 5cm

Applications
Robot line tracking

How to Use
In the case of working with a MCU:

- VCC ? 3.3V ~ 5V
- GND ? GND
- IR1 ? MCU.IO (ch1, analog output)
- IR2 ? MCU.IO (ch2, analog output)
- IR3 ? MCU.IO (ch3, analog output)
- IR4 ? MCU.IO (ch4, analog output)
- IR5 ? MCU.IO (ch5, analog output)
