Waveshare Tracker Sensor, Infrared Line Tracking
+4

Waveshare Tracker Sensor, Infrared Line Tracking

10 available / new
Indicative market price: R436.00
R218.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
7761352
Bob Shop ID
628912046

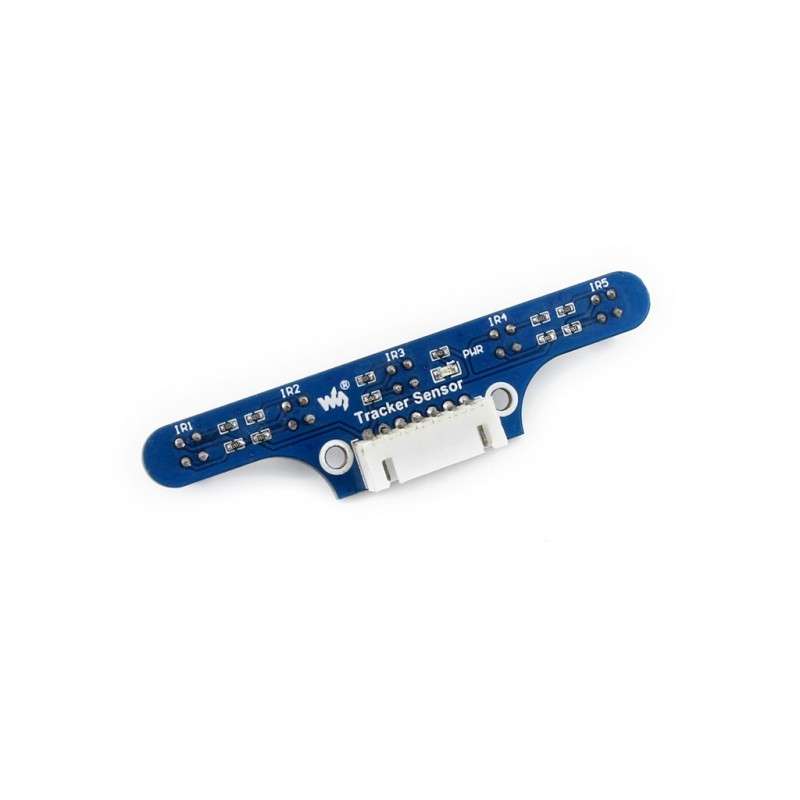

Waveshare Tracker Sensor, Infrared Line Tracking

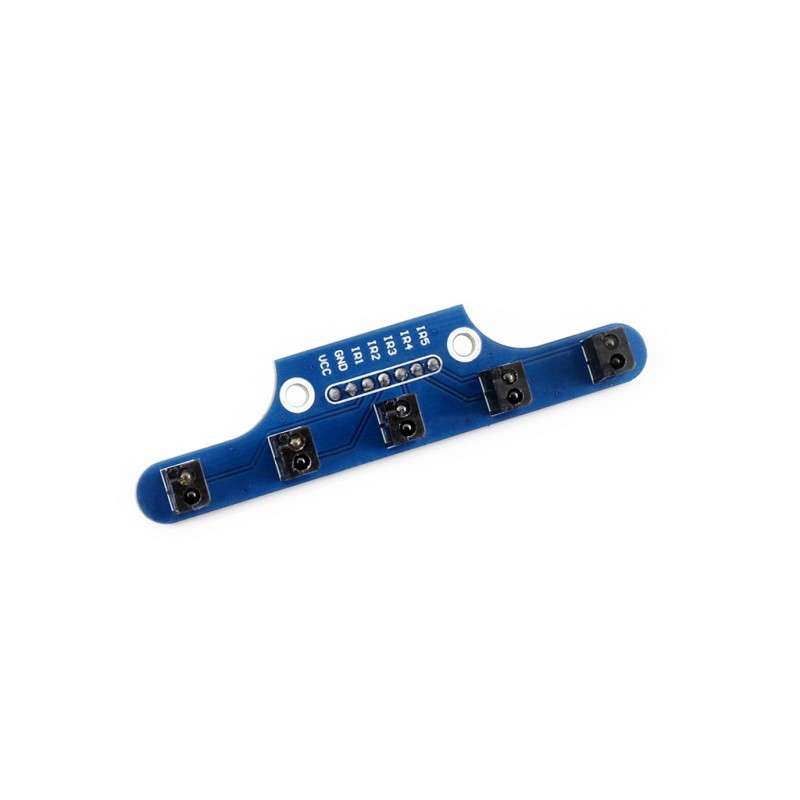

1. 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
2. High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable

Specifications
1. Power: 3.3V ~ 5V

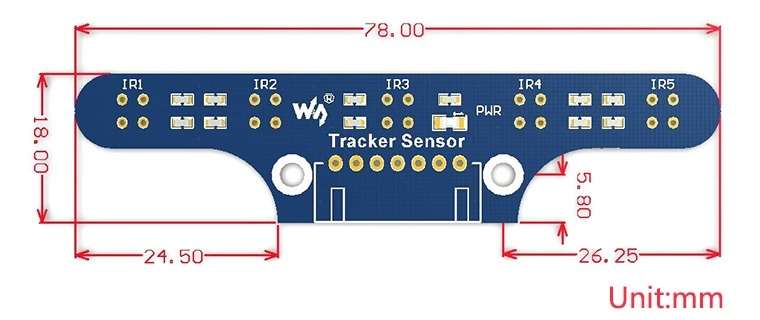

2. Dimension: 78mm × 18mm
3. Detector spacing: 16mm
4. Mounting holes size: 3mm
5. Detection range: 1cm ~ 5cm

Applications

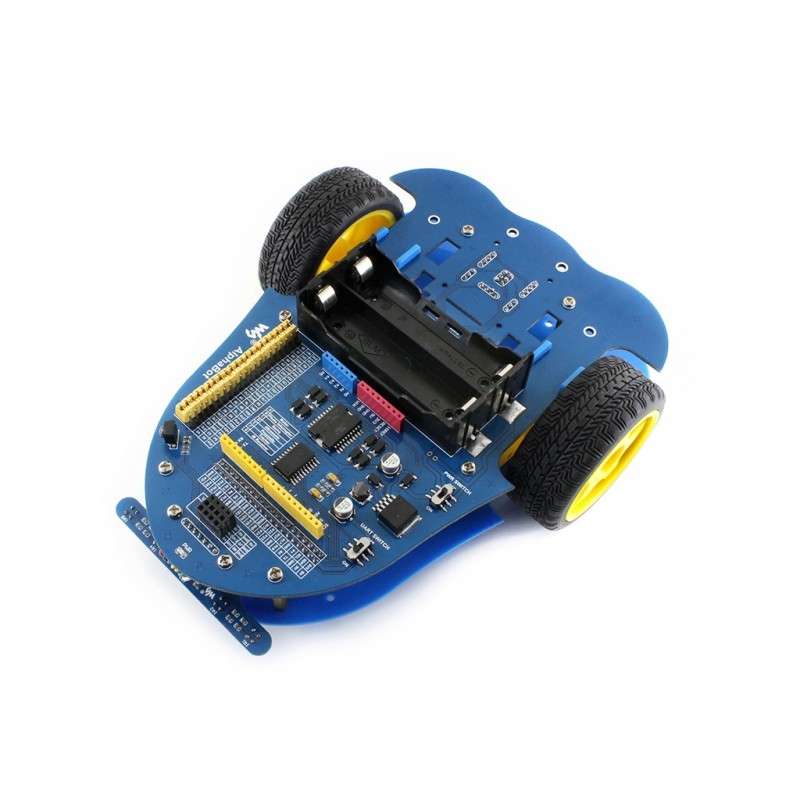

Robot line tracking

How to Use
In the case of working with a MCU:

- VCC ? 3.3V ~ 5V
- GND ? GND
- IR1 ? MCU.IO (ch1, analog output)
- IR2 ? MCU.IO (ch2, analog output)
- IR3 ? MCU.IO (ch3, analog output)
- IR4 ? MCU.IO (ch4, analog output)
- IR5 ? MCU.IO (ch5, analog output)


ZY13866703
