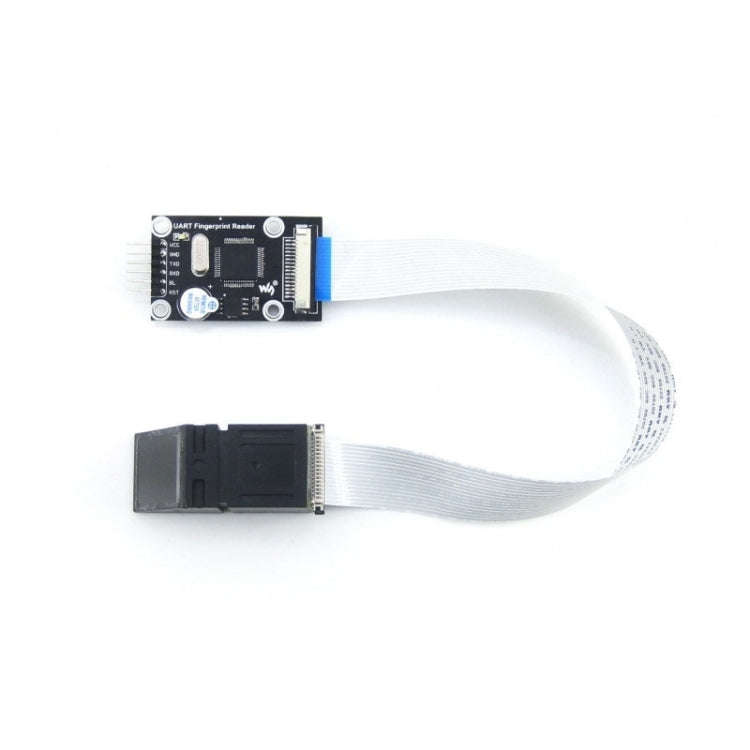

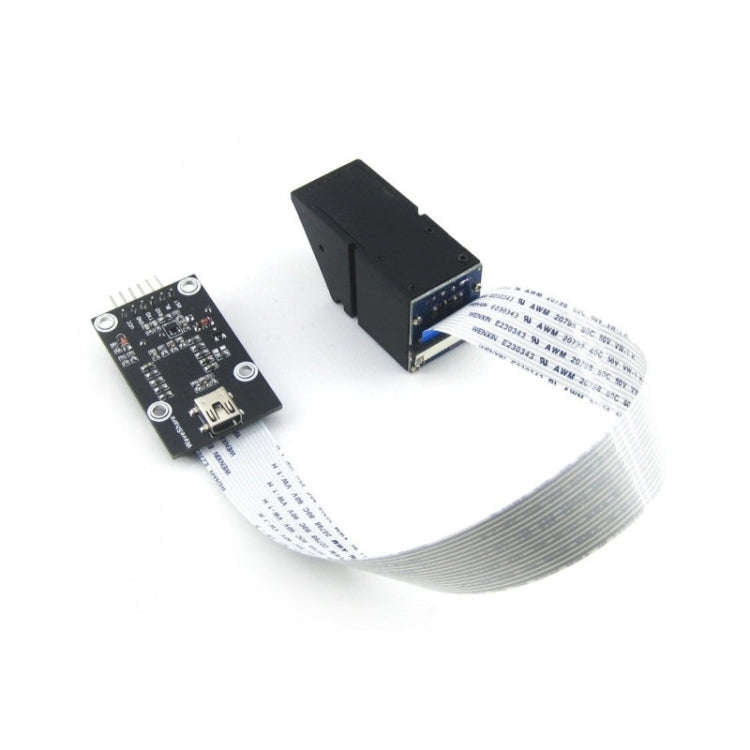

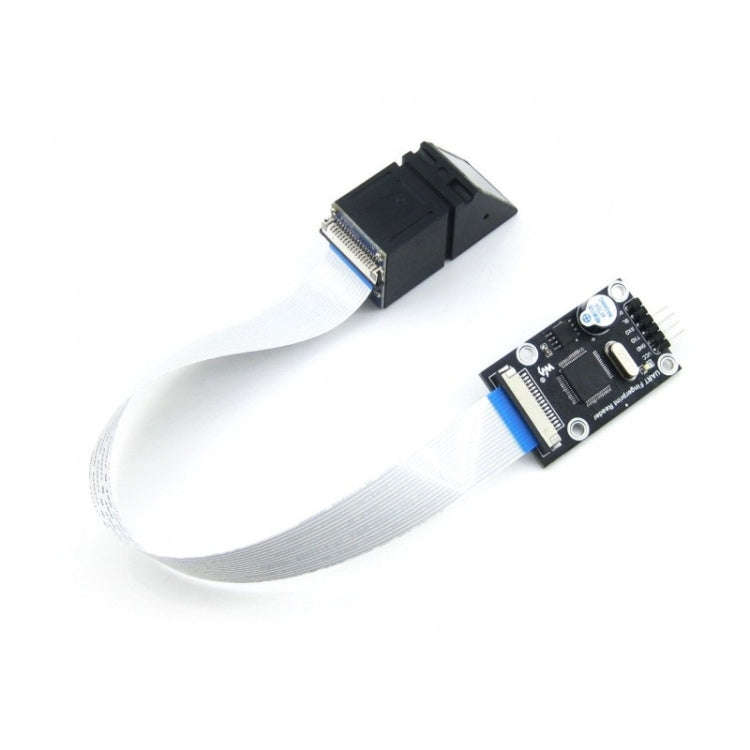

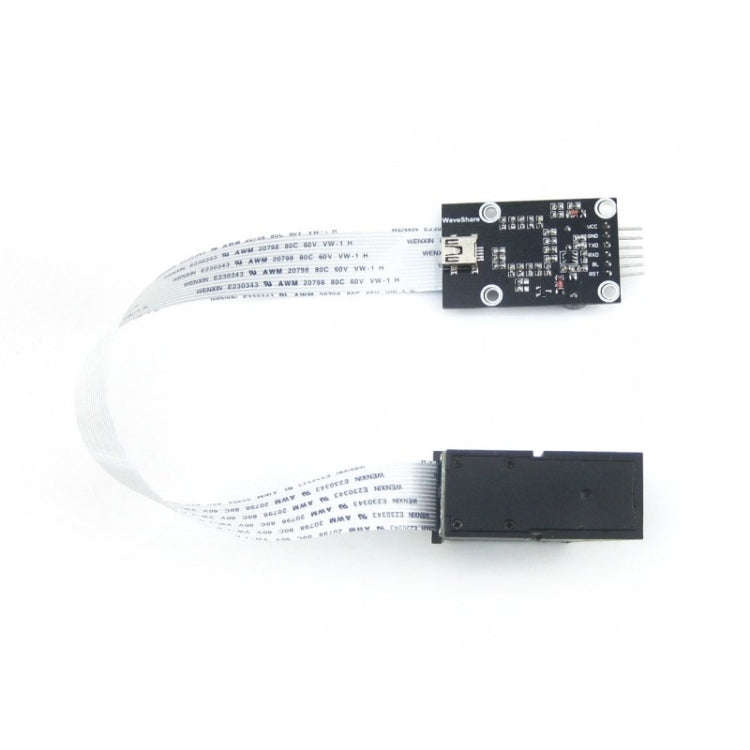

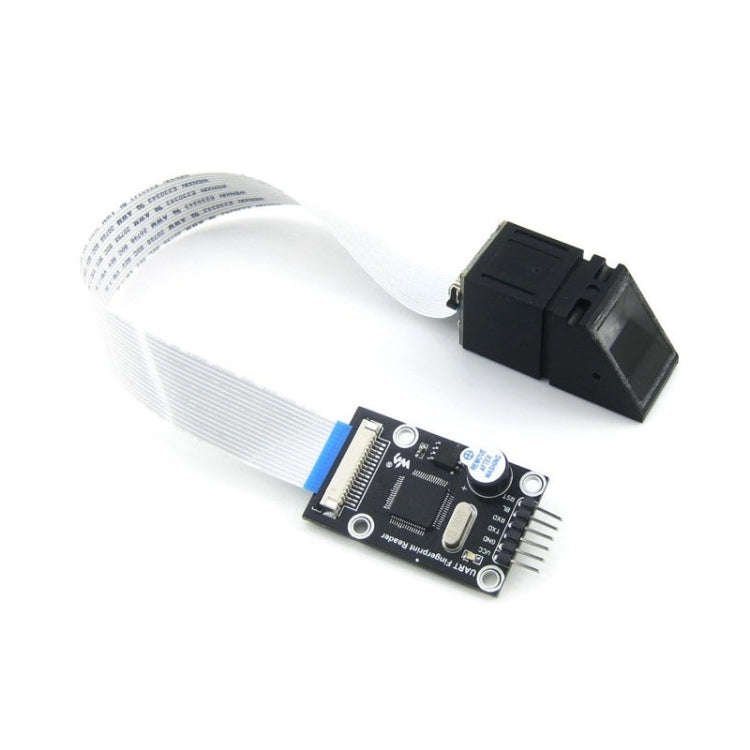

UART Fingerprint Reader, onboard processor STM32F205, commercial fingerprinting algorithm, optical sensor
Overview
UART Fingerprint Reader is a fingerprinting module designed for secondary development, high-speed for identification, high stability. It is an intelligent module that provides functionalities like fingerprint recording, image processing, feature extraction, template generation, template storage, fingerprint matching and searching, etc.
Features
1. Onboard high-speed processor STM32F205
2. Commercial fingerprinting algorithm, faster identification
3. High-accuracy optical sensor, standard 16-pin interface, allows users to choose optical/semiconductor sensors
4. Divided structure: fingerprint sensor + processing circuit + algorithm platform
5. Easy for developing, controlled via UART, supports any MCU with UART
6. Open protocol, it is available to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
Package Contents
1. UART Fingerprint Reader × 1
2. 6-pin custom connector jumper wire × 1
Specification:
| Package Weight | | One Package Weight | 0.05kgs / 0.10lb |
| One Package Size | 6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch |
| Carton Weight | 15.00kgs / 33.07lb |
| Carton Size | 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch |
| Loading Container | 20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
|
|
