Waveshare USB to RS485 Serial Converter USB to 485 RS485 Communication Module F

Package weight: 0.09 kg

Features:

Support USB to RS485 communication

Using original FT232RL, high-speed communication is stable, reliable and compatible

Onboard TVS (transient voltage suppression tube), which can effectively suppress surge voltage and transient spike voltage in the circuit, lightning protection and static electricity protection

Onboard self-recovery fuses and protection diodes can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance

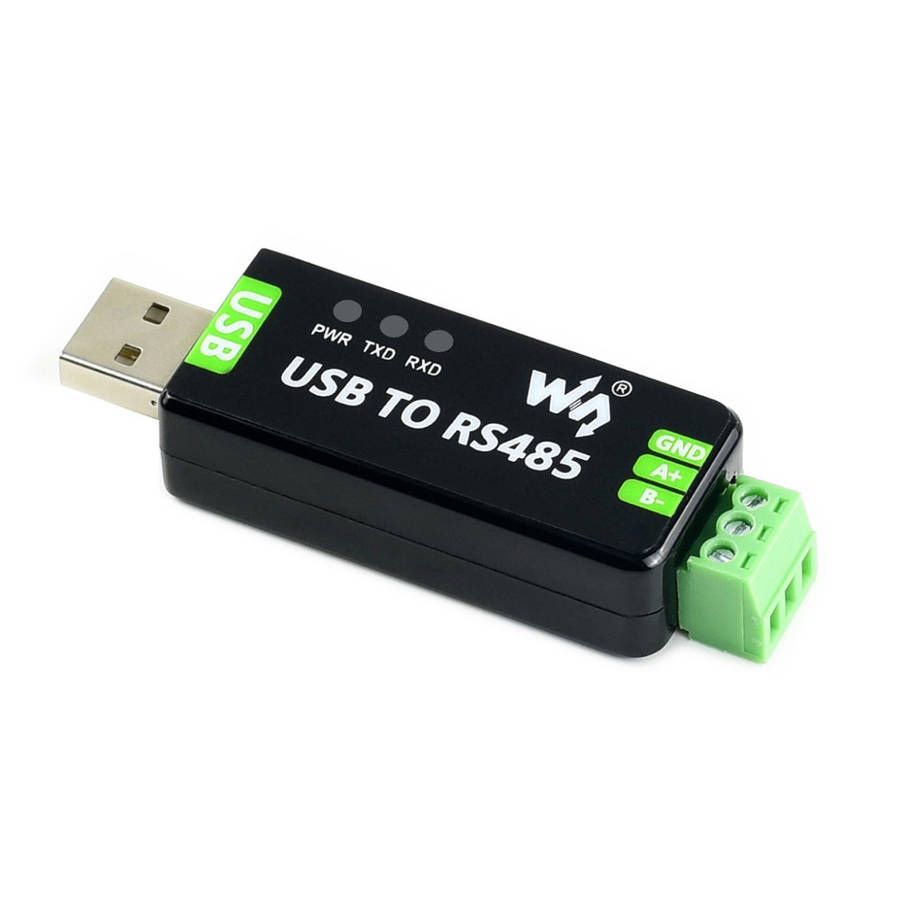

Three external LED indicators for easy viewing of power and signal transceiver status

Parameter:

Product Type: Industrial USB to RS485 converter

Communication rate: 300-921600bps

Host interface: USB

Device interface: RS485

USB interface:

Working level: 5V

Interface form: USB-A type interface

Interface protection: 200mA self-recovery fuse, ESD electrostatic protection

Transmission distance: about 5 meters

RS485 interface:

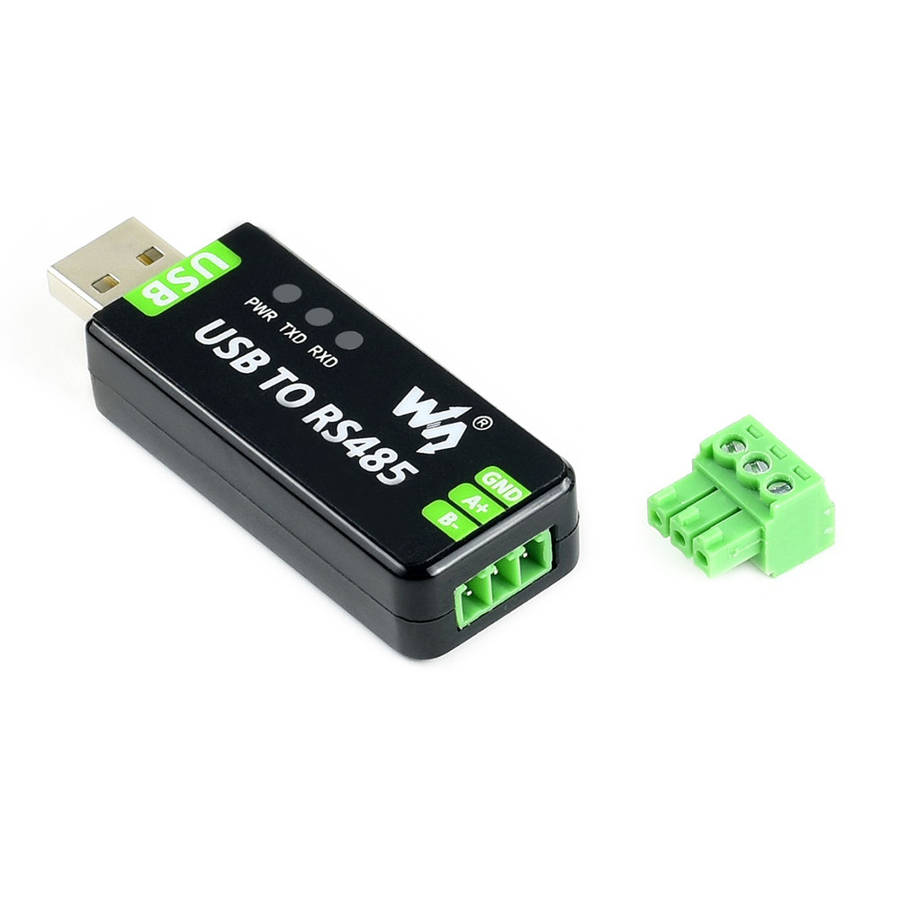

Interface form: terminal block

Interface pins: A+, B-, GND

Direction control: hardware automatically discriminates and controls data transmission direction

Interface protection: Provide 600W lightning protection, surge and 15KV static protection (onboard 120R balanced resistance)

Transmission distance: about 1200 meters (at low speed)

Transmission mode: point-to-multiple (up to 32 nodes, more than 16 nodes are recommended to add repeaters)

Indicator light:

PWR: Power indicator light, connect to USB, and light red when voltage is detected

TXD: Send indicator light, it lights red when there is data from the USB port

RXD: Receive indicator light, it lights red when data is sent back from the device interface

Use environment:

Temperature range: -15 ~ 70

Humidity range: 5%RH ~ 95%RH

Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8/7 / XP

Package includes:

1 x USB to RS485 Serial Converter
