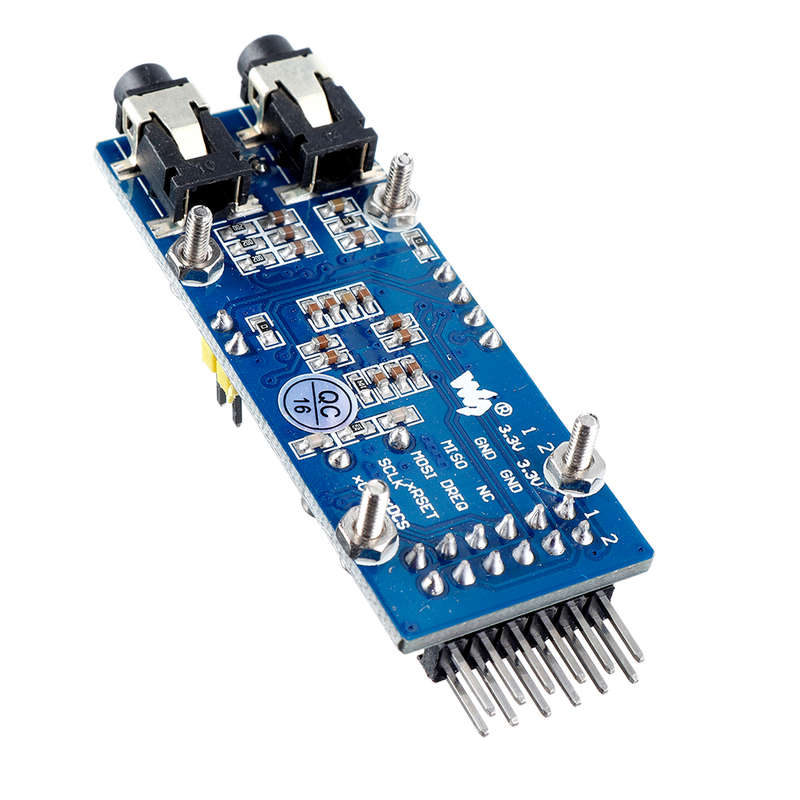

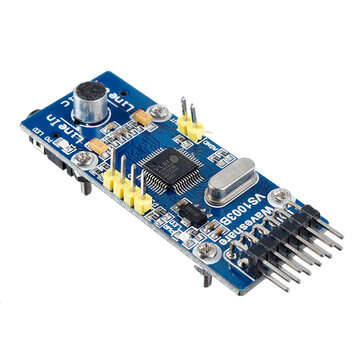

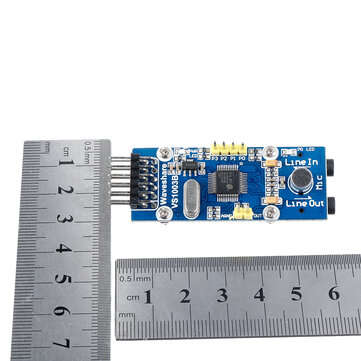

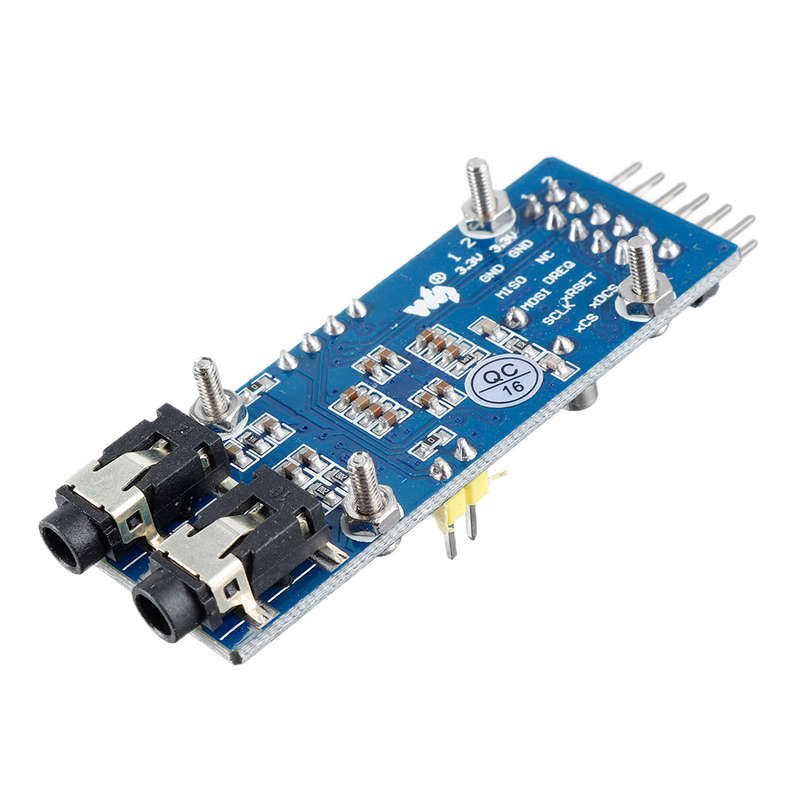

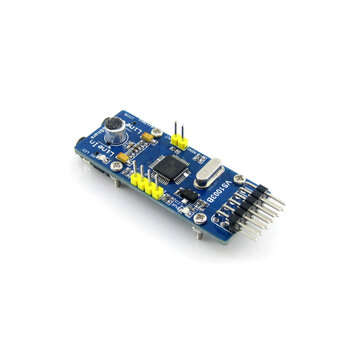

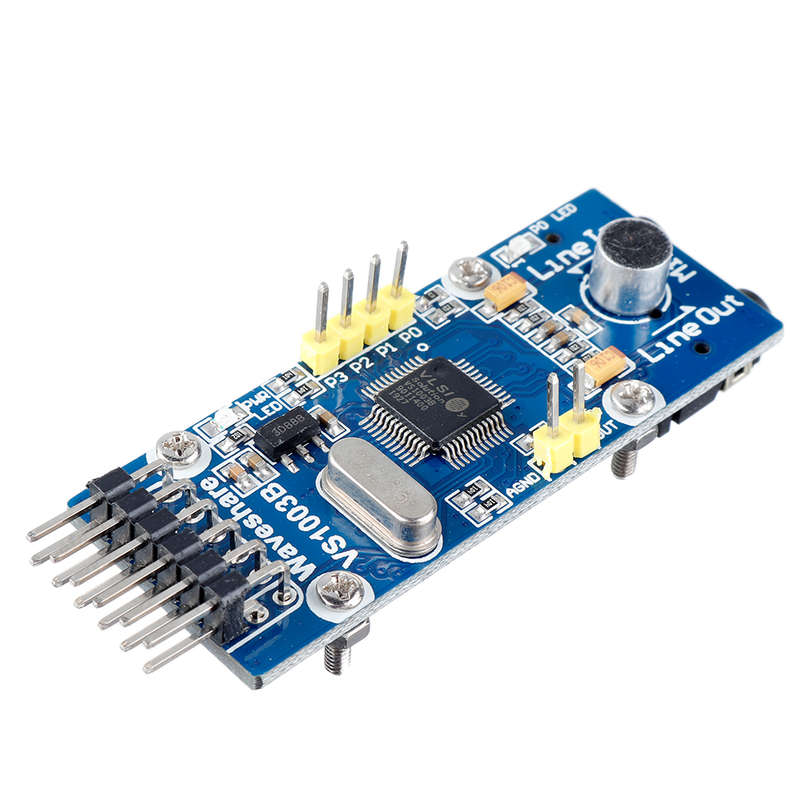

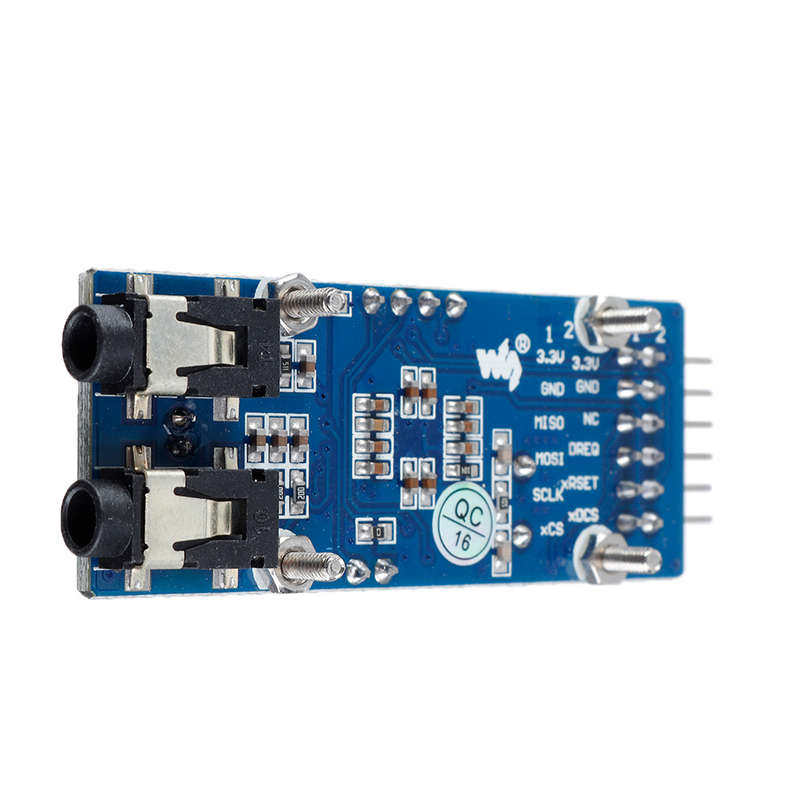

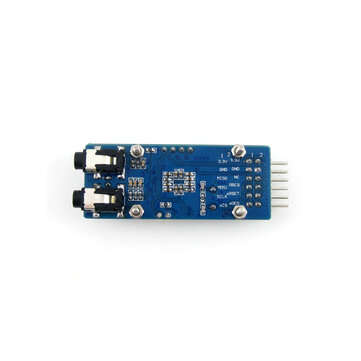

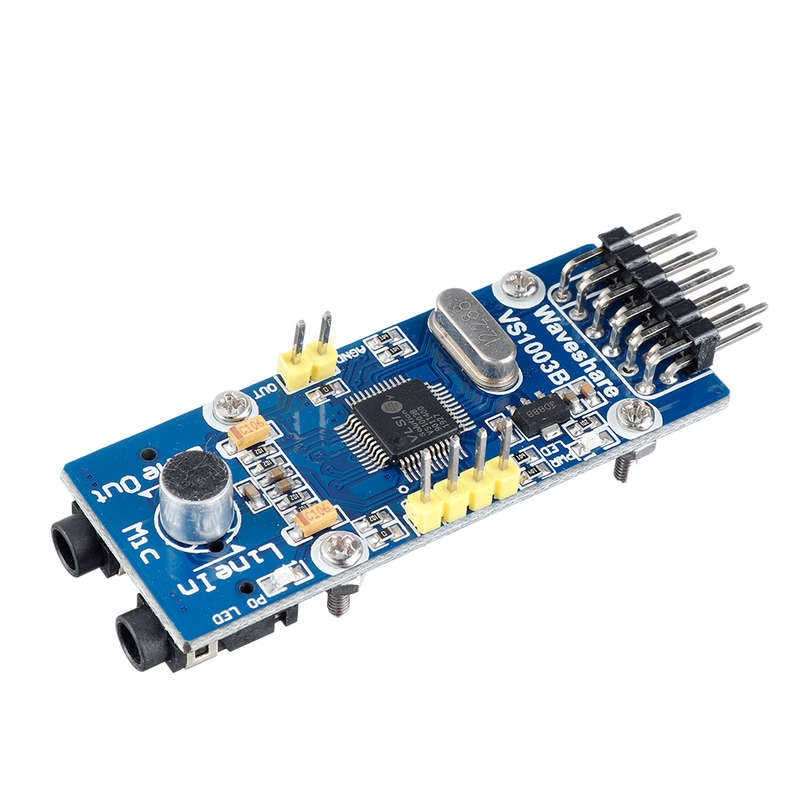

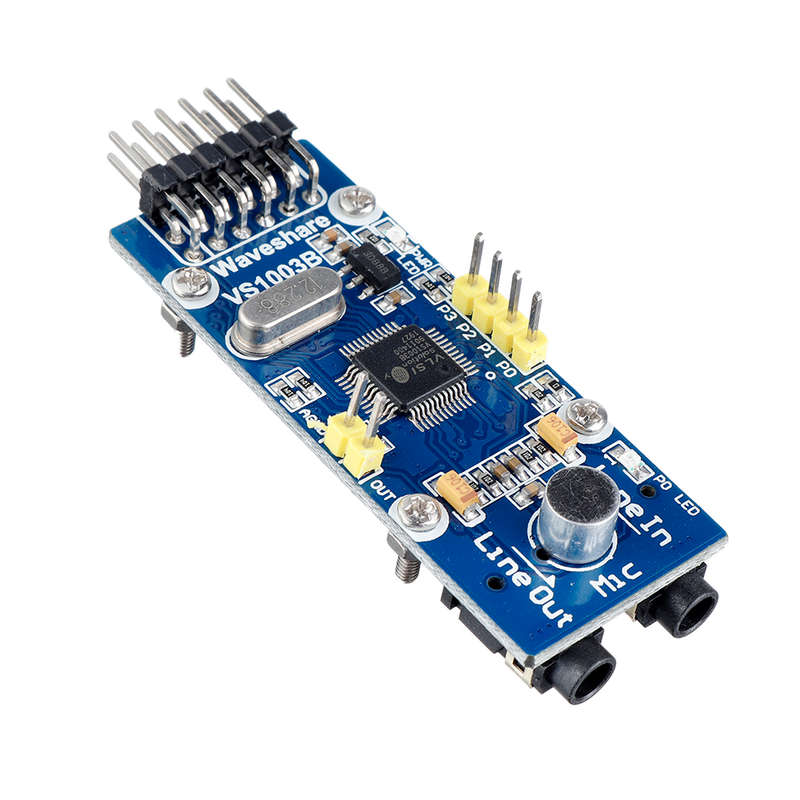

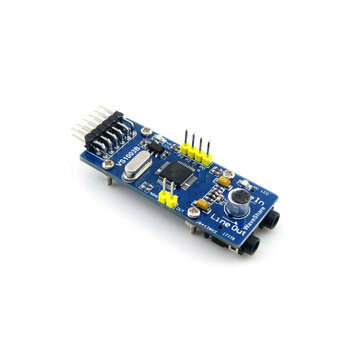

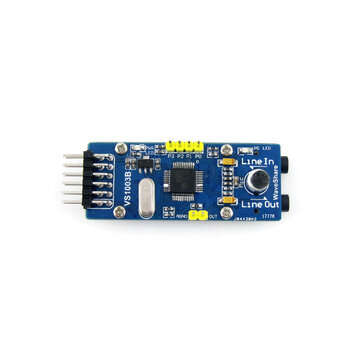

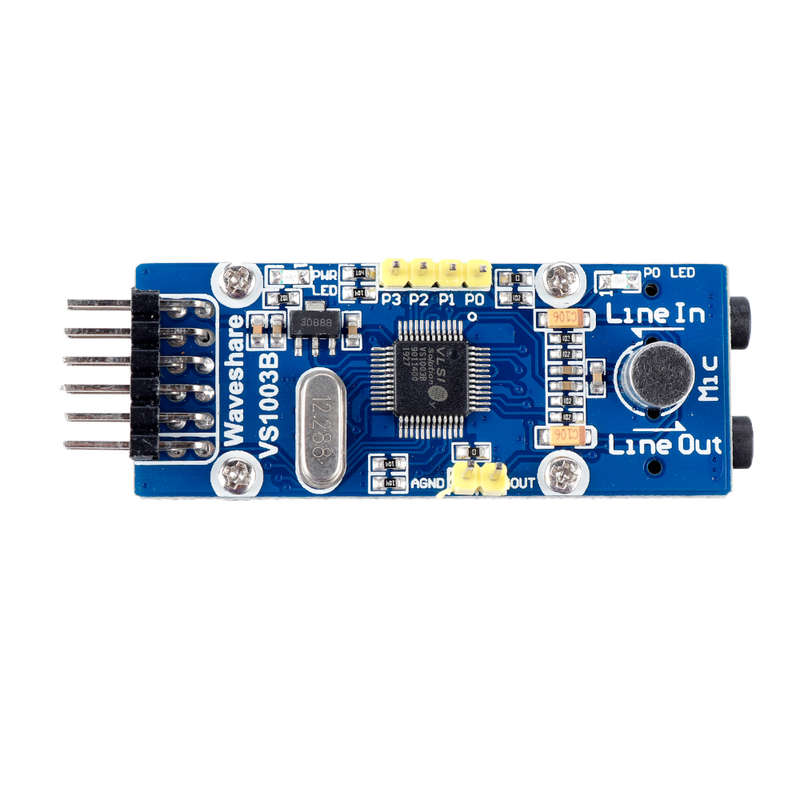

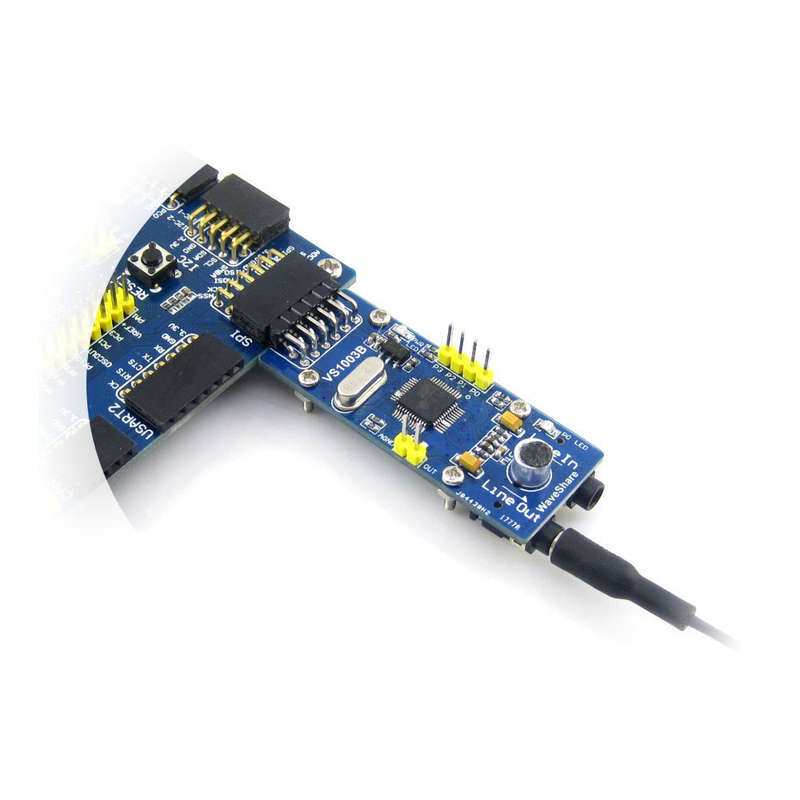

Waveshare VS1003B VS1003 MP3 Decoder Board WMA/WAV Audio Decoder Module

Feature:

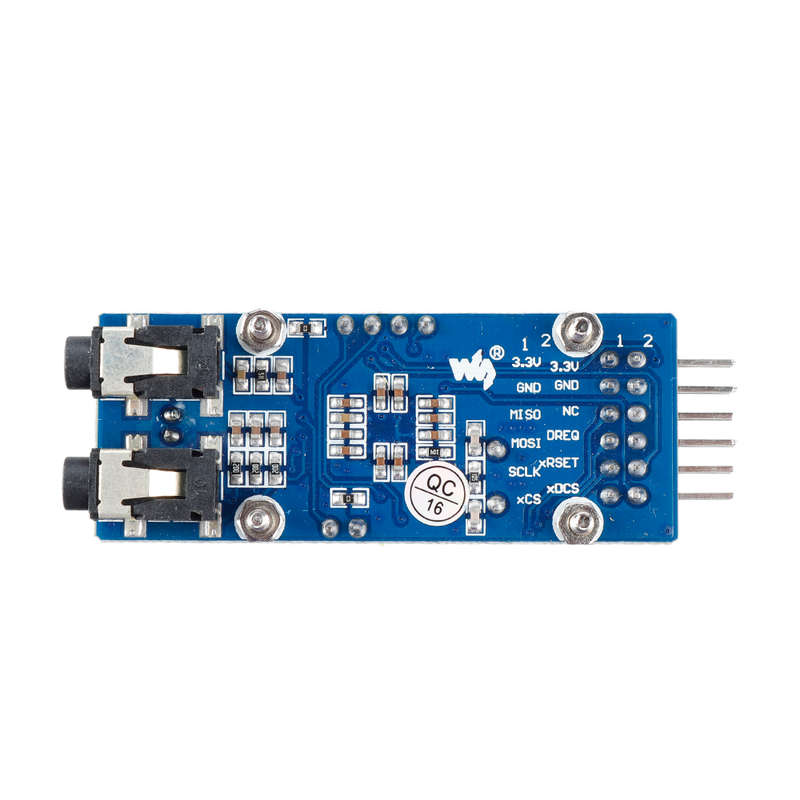

Onboard VS1003BSPI interface, all control signal lines are led out

Support MP3 and WAV streaming

Audio decoding formats: MPEG, WMA, WAV, MIDI and SP-MIDI

Recording encoding format: IMA ADPCM (mono)

Input method: microphone and Line input

On-chip analog-to-digital converter (ADC): 16-bit adjustable

High-quality stereo earbud driver: 30 Euro

On-chip RAM size: 5.5KB

Can control the volume

Clock multiplier with internal phase-locked loop

High-quality stereo digital-to-analog converter (DAC) without phase error between channels

Separate analog, digital and IO power supply

Low power operation

1 audio output interface (Line Out)

1 audio input interface (Line In)

1 microphone for recording

3.3V single power supply

Documents:

Package includes:

1 x?Audio Decoder Module
