Wavlink USB over IP / Network for Remote USB Printing / Webcam / USB Storage / USB Keyboard / Mouse

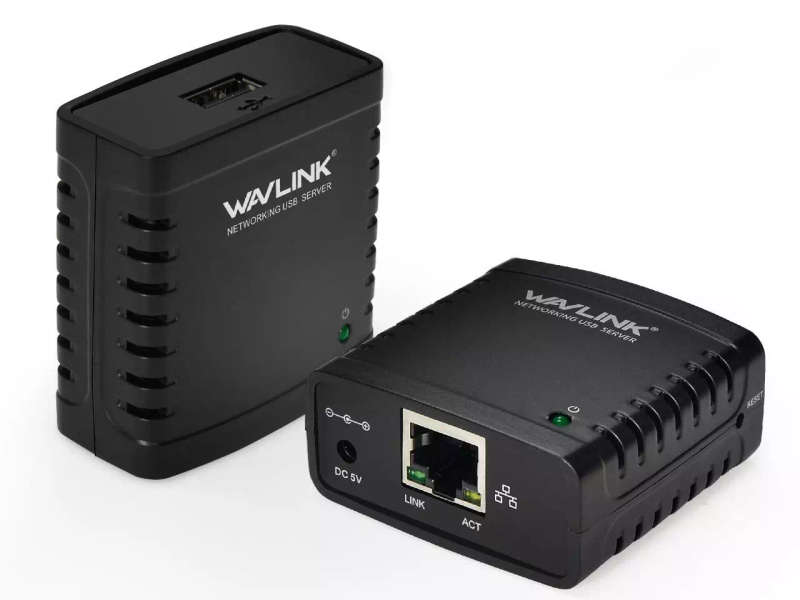

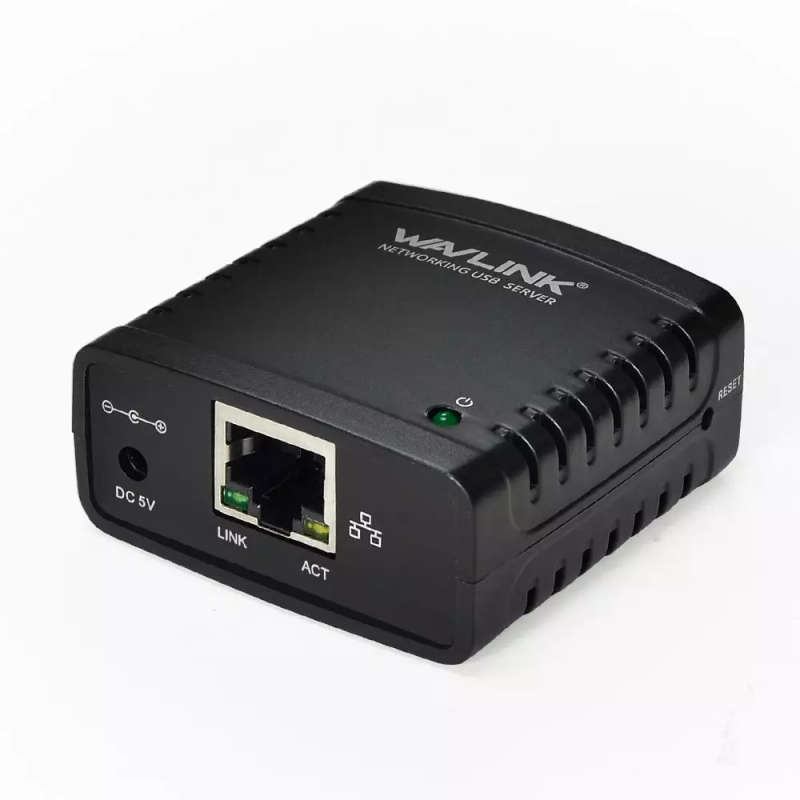

The WAVLINK USB over IP Device allows you to integrate various standard USB devices and transform them into Network / IP Devices to be used via Wifi or a Wired LAN / Network. In the local area network, the USB over IP Device is an independent network device, which allows multiple computers in the local area network to share USB devices as below connected to it.
Driver Link:
https://www.wavlink.com/en_us/drivers/download/8a4cbc7358d2.html
Features:

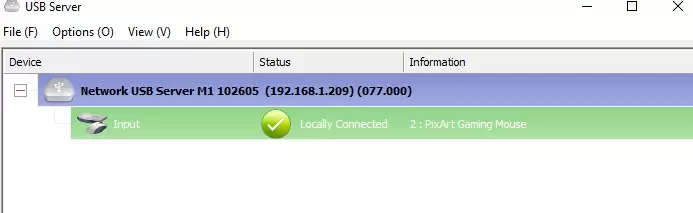

You will need a Windows 10 / Windows 11 PC to Operate the USB Server software as below

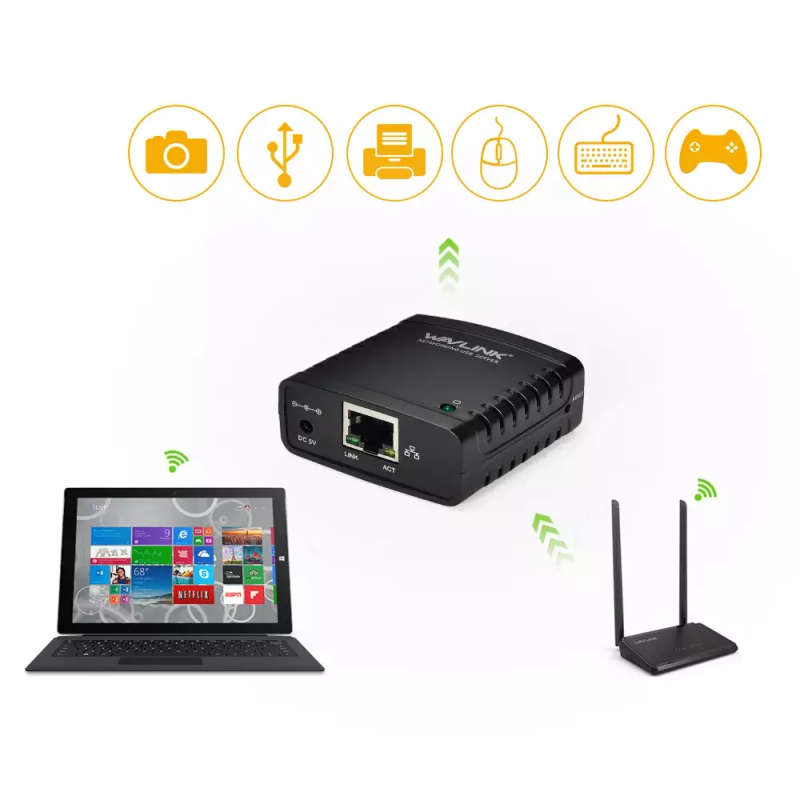

The USB Devices below can be accessed over a IP Network to the Wavlink USB over IP Device:
- Low Power Network Attached Storage Server - NAS. USB Storage Devices Tested (Flash Drives, Solid States, Hard Drives). Allows multiple computers or mobile devices to access central storage over network / IP.
- USB Hub Compatibility to allow more USB devices to be connected - A 4 -Port USB 2.0 Hub which uses external power will work to expand USB Ports.
- Remote Keyboard / Mouse Connected to 4 Port USB Hub Above - Please note Wireless Devices may not work due to power consumption that is more for wireless.
- Supports Remote USB Gamepads and Controllers over IP.
- WebCams - Setup a USB Camera as an IP Camera over the Ethernet Network and PC's can access the webcams via Network / Wifi / IP.

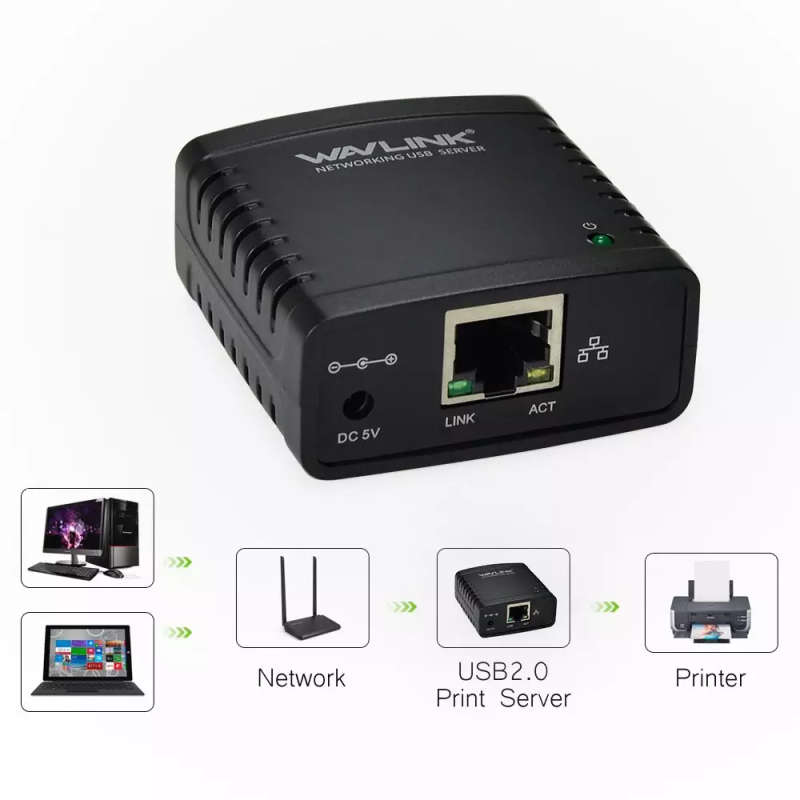

- Change a USB Printer into a Remote Network Printer and allows multiple computers / mobile devices to share a USB printer as a network printer. Allow users to configure and print files through a web browser. It also comes with a 1.5-meter ANPTH cat5e network cable.
- Supports DHCP client for IP or Static IP Addressing.
- 10Base-T / 100Base-T automatic sensing
- Support Telnet and network management software

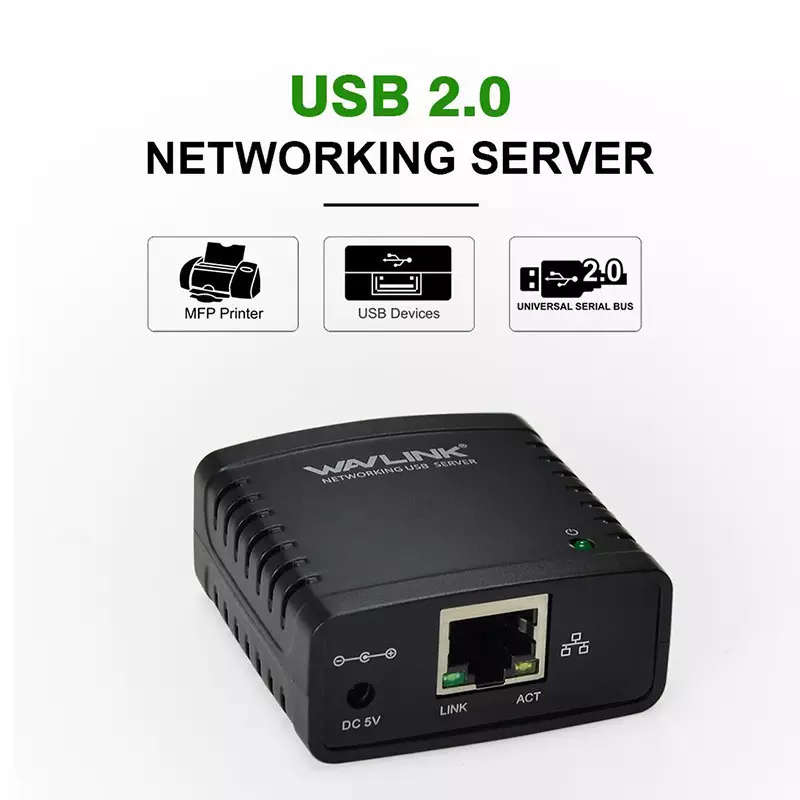

- Complies with USB2.0 transmission standard (compatible with USB1.1), it provides an adaptive Ethernet interface, supports multiple protocols and multiple operating systems.
Place your shared printer in a convenient location. With web-based management, you can set up and monitor the printer server through a web browser, so you can place your printer at any convenient shared location - there´s no need to put your printer next to your computer. You can send print jobs to another user in your home or office.
Compact and lightweight, the print server is easy to install with its straightforward installation wizards and remote web-based management. USB cable to connect the print server to your printer´s USB port, then use an RJ45 networking cable to connect it to the rest of your network.
The Wavlink USB over IP Device uses standard CAT6 Cabling to a Network Switch as below examples:
/price-per-meter-cat6-unshielded-twisted-pair-utp-23awg-1-gigabit-s-cable-gray/
/5-port-gigabit-network-switch-10-100-1000mbps-1gbit-s-full-duplex-auto-negotiation/
