Product details
Please read shipping info before bidding or buying.
WCDMA 2100MHz 3G RF Repeater Mobile Phone Signal Booster Amplifier Kit.
Quick Overview
Cell phone signal amplifier (also referred to as signal booster or direct signal amplifying station) is designed to solve cell phone signal blind. In some location such as remote area from base station, high-rise, basement, location behind by building, underground civil air defence projects, subway stations, elevator and many other places, cell phone can not be used due to receiving signals fail. This cell phone signal amplifier is aimed to solve the problems. This device is specially designed for 2100MHZ WCDMA mobile phone service. This mobile phone signal amplifier is very easily to install and operate. You don’t need to adjust the frequency of the device
Product Description
Feature:
* 60dB 4G (LTE) Amplifier
* UMTS signal booster ( WCDMA and CDMA2000 )
* Up to 500 square meters(5,000 sq. ft.) coverage area
* Work in all country's 3G signal
* Easy to install and simple to use.
Specification:
* Operating voltage: AC 100V-240V automatic power adjustment (with high and low temperature characteristics) .
* Operating frequency range: 1930MHZ--1990MHZ (uplink)
2110MHZ--2180 MHZ (downlink)
* Gain: ≥55dB ( uplink ) ; ≥60 ( downlink )
* Return Loss: ≤-18dB
* Noise figure: ≤ 5dB
* In wave ratio: ≤ 1.5 (V.S.W.R)
* Device delay: 1μs
* Spurious Radiation: ≤-36dBm ;
* Output Power : +17 dbM for up link & +14 dbM for Downlink
* Suitable: 500 square meters around ( it will be different according to your using condition )
* Size: 14x4.5x1.8cm

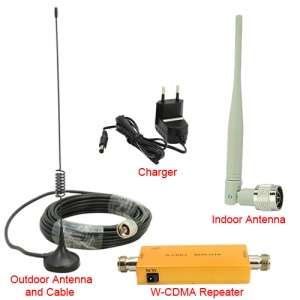

Package include:
* Booster host x 1
* Charger x 1
* Outdoor Antenna with cable x 1
* Indoor antenna x 1
