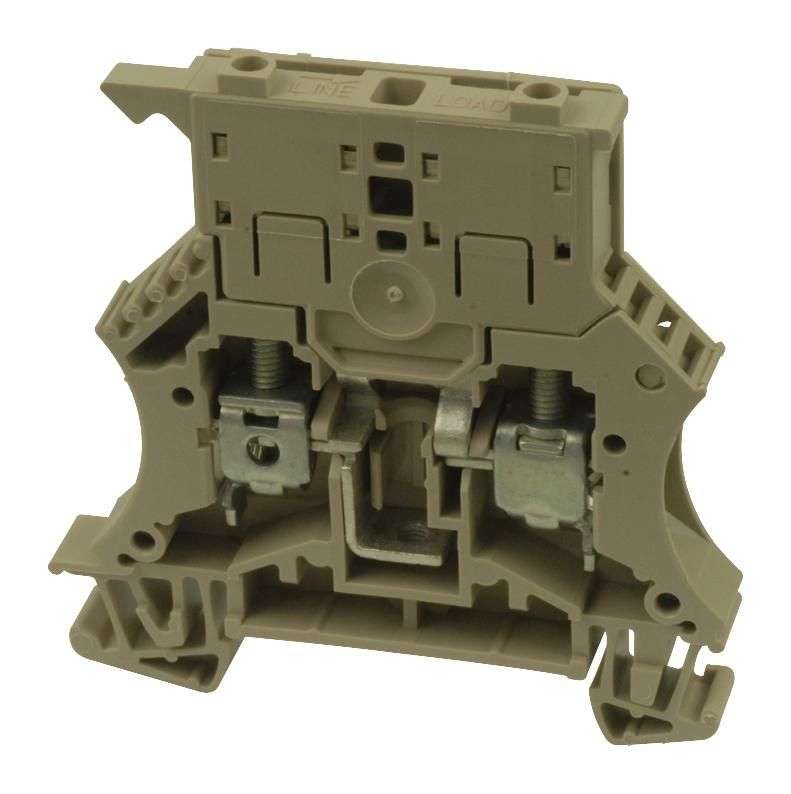

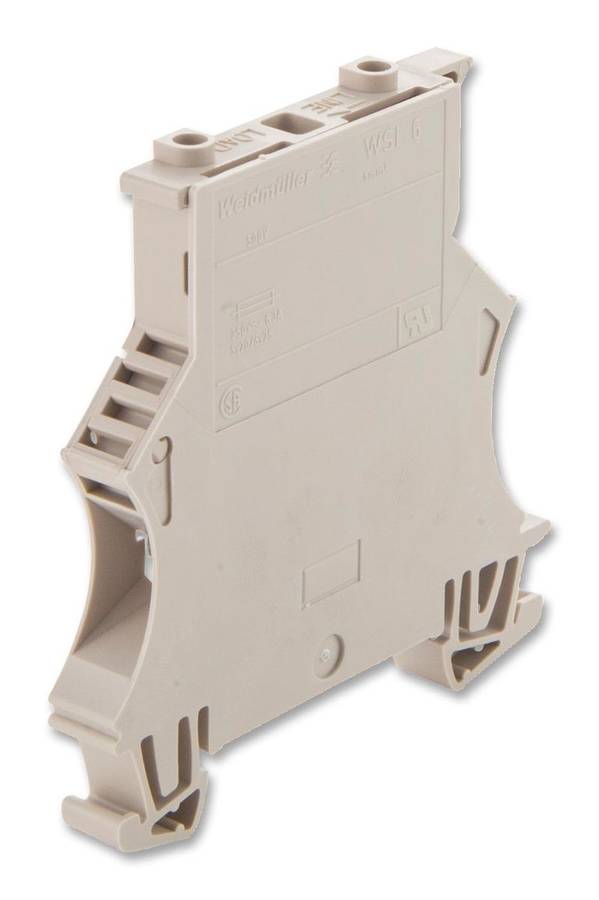

Weidmuller (101100 WSI6) Fused Terminal Block, 2 Ways, 20AWG to 8AWG

Fused Terminal Block, 2 Ways, 20AWG to 8AWG, 6 mm², Screw, 6.3 A, 500 VProduct OverviewThe 1011000000 is a Fused Terminal Block with screw connection, 6mm² wire crosssection area and fuse isolator for screwable cross section. M3.5 clamping screwand 12mm stripping length. Dark beige color, TS 35mm rail mount and snap-onmounting. The WSI 6 terminal block accepts 20AWG minimum to 8AWG maximum wiresize. Hardened steel for mechanical strength and high-quality tinned copper foroptimum conductivity. All materials have been tested to current environmentguidelines. The W-Series offers solutions for all standard electrical functions.It brings considerable time savings compared to all other screw terminals on themarket. Thanks to the patented design of Weidmüller's W-series screw connectiontechnology it is possible for two conductors with the same cross-section to beconnected in one and the same clamping yoke without difficulty.Simple operation - Can be clipped to or removed from the terminal rail in eitherdirectionThermally stable up to 120°CPhosphorous- or halogen-freeMaintenance-free contactsHighest contact force of all connection systemsElectric shock protection with connected conductors, even when cross-connectedWemid insulatorUL94V-0 Flammability ratingDimension of fuse terminal is 60mm x 61mm x 7.9mm (L x H x W)G-Si, 5mm x 20mm cartridge fusePivoting fuse holderTS 35 mounting rail (Snap-on mounting)Net weight of fuse terminal is 18.36gOperating temperature range from -50°C to 120°CUL94 V-0 flammability ratingCE, CSA, DNV, EAC, KEMA EUR approved and UL recognisedApplicationsIndustrialProduct InformationWire Size (AWG): 20AWG to 8AWGWire Size AWG Min: 20AWGWire Size AWG Max: 8AWGConductor Area CSA: 6mm²Wire Connection Method: ScrewRated Current: 6.3ARated Voltage: 500VFuse Size Held: 5mm x 20mmProduct Range: W
