Weidmuller (101400 WSI6/2) Fused Terminal Block, 2 Ways, 22AWG to 8AWG

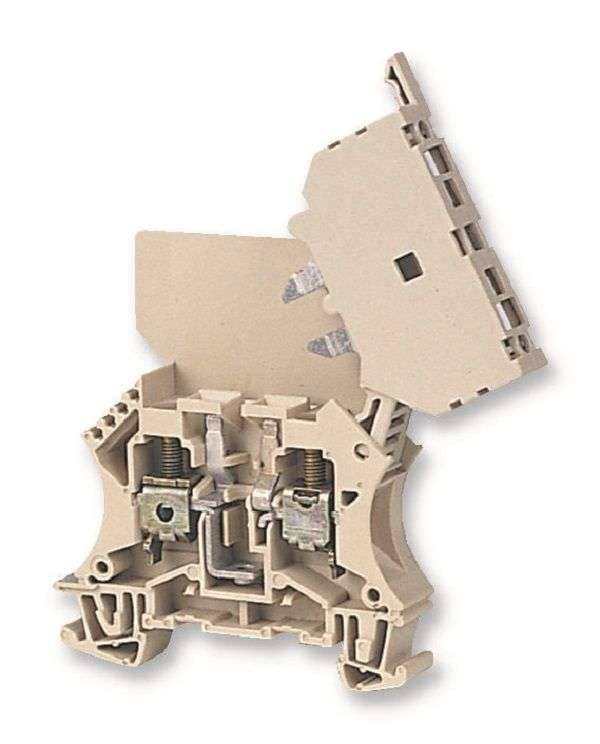

Fused Terminal Block, 2 Ways, 22AWG to 8AWG, 6 mm², Screw, 6.3 A, 500 VProduct OverviewThe 101400 WSI6/2 is a Fused Terminal Block with screw connection, 6mm² wirecross section area and fuse isolator with LED for screwable cross section. M3.5clamping screw and 12mm stripping length. Dark beige colour, TS 35 rail mountand snap-on mounting. The WSI 6/2/LD terminal block accepts 22AWG minimum to8AWG maximum wire size. Hardened steel for mechanical strength and high-qualitytinned copper for optimum conductivity. All materials have been tested tocurrent environment guidelines. It brings considerable time savings compared toall other screw terminals on the market. Thanks to the patented design ofWeidmüller's W-series screw connection technology it is possible for twoconductors with the same cross-section to be connected in one and the sameclamping yoke without difficulty.Simple operation - Can be clipped to or removed from the terminal rail in eitherdirectionThermally stable up to 120°CPhosphorous- or halogen-freeMaintenance-free contactsHighest contact force of all connection systemsElectric shock protection with connected conductors, even when cross-connectedUL94V-0 Flammability rating10V Minimum operating voltage36V Maximum operating voltageApplicationsIndustrialProduct InformationWire Size (AWG): 22AWG to 8AWGWire Size AWG Min: 22AWGWire Size AWG Max: 8AWGConductor Area CSA: 6mm²Wire Connection Method: ScrewRated Current: 6.3ARated Voltage: 500VFuse Size Held: 1/4" x 1", 6.3mm x 25.4mm, 8AGProduct Range: -
