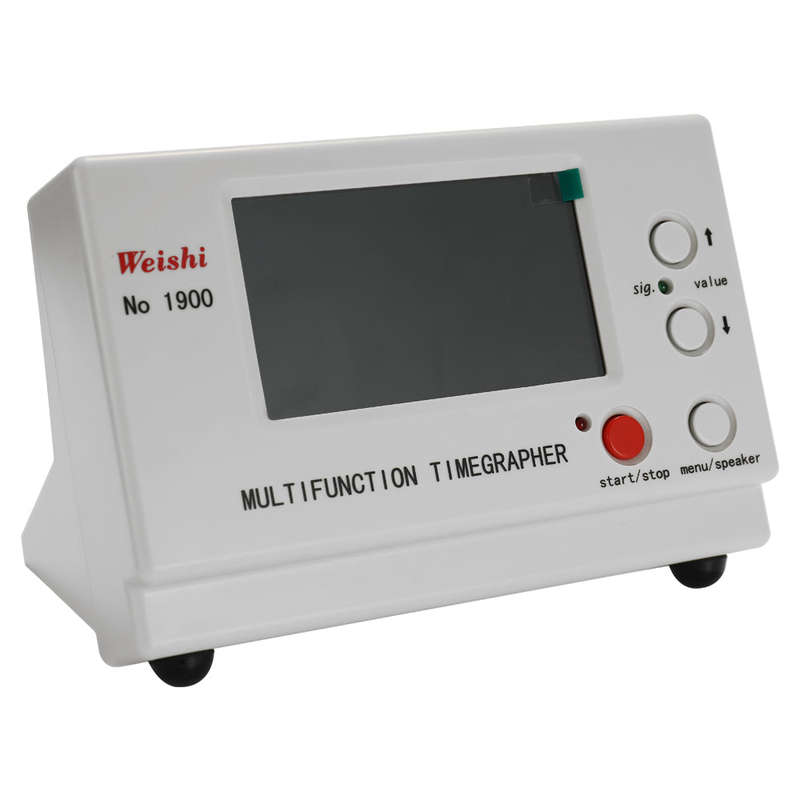

WeiShi No.1900 Multifunctional Professional Timegrapher Precise Mechanical Watch Test Repairi

This No.1900 timegrapher is a precise mechanical watches test instrument, it is used for multi-testing by watch manufacturers and watch technician.

Features:
The frequency diagram of the watch can be displayed on the LCD screen.
According to different watches, the instrument will automatically adjust the optimal signal level during the test.
The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real time; select ￂﾱ99.9s/d at item rate ranges for result display, which can make the accuracy of rate deviation up to 0.1s/d.

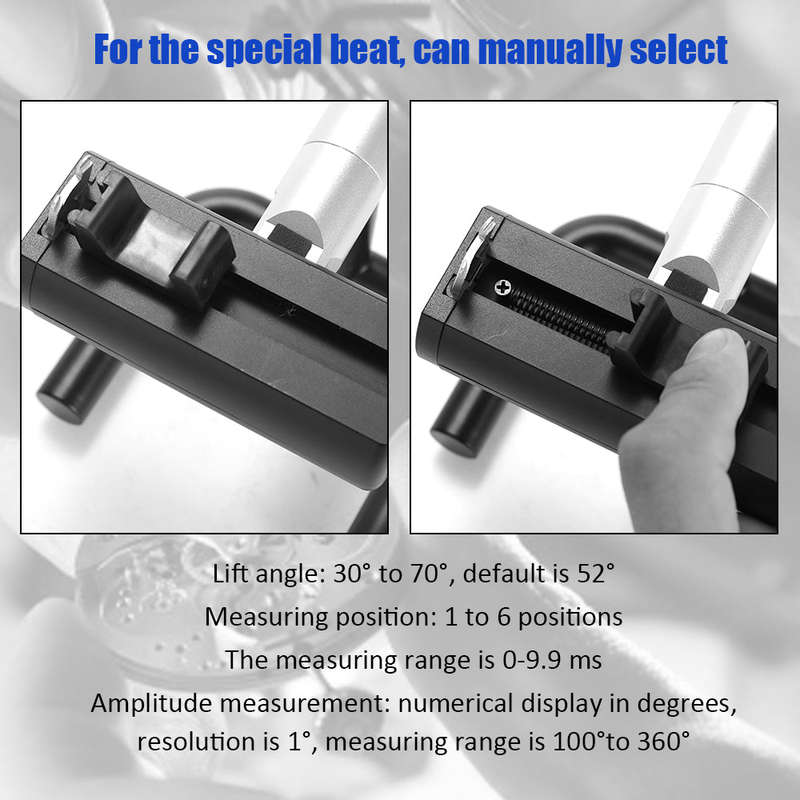

For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually select.
The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average value of corresponding period will be regarded as the precise value of the watch.
Six kinds of testing positions can be adjusted, and the simulation sound can be played in the speaker or mute.

Specifications:
Plug: EU-plug, US-plug, AU-plug (optional)
Main material: ABS
Color: grey+black
Measuring possibilities: rate deviation, amplitude, be-at error of mechanical watches and diagram recording of the be-at noise.
Rate deviation measurement:
Measuring ranges: ￂﾱ999s/d or ￂﾱ99.9s/d
Resolution: 1.0s/d or 0.1s/d
Amplitude measurement:
Measuring ranges: 100ￂﾰ~360ￂﾰ
Resolution: 1ￂﾰ
Measuring of the be-at error:
Measuring ranges: 0.0~9.9 ms
Resolution: 0.1 milliseconds
Lift angle:
Measuring ranges: 30ￂﾰ~70ￂﾰ
Default value: 52ￂﾰ
Measure positions: 1-6 positions
Line length: 480 points
Measuring times periods: 2/4/6/8/12/20/30/60 seconds
Language: Chinese, English, Japanese
Display: color LCD graphic monitor, 480*272 pixels
Working environment: 10￢ﾄﾃ~40￢ﾄﾃ
Relative humidity: 0~80% RH
Item size: 185 * 120 * 40mm / 7.3 * 4.7 * 1.6in
Item weight: 337g / 11.9ounce
Package size: 230 * 210 * 195mm / 9.1 * 8.3 * 1.6in
Package weight: 1379g / 3.0lb

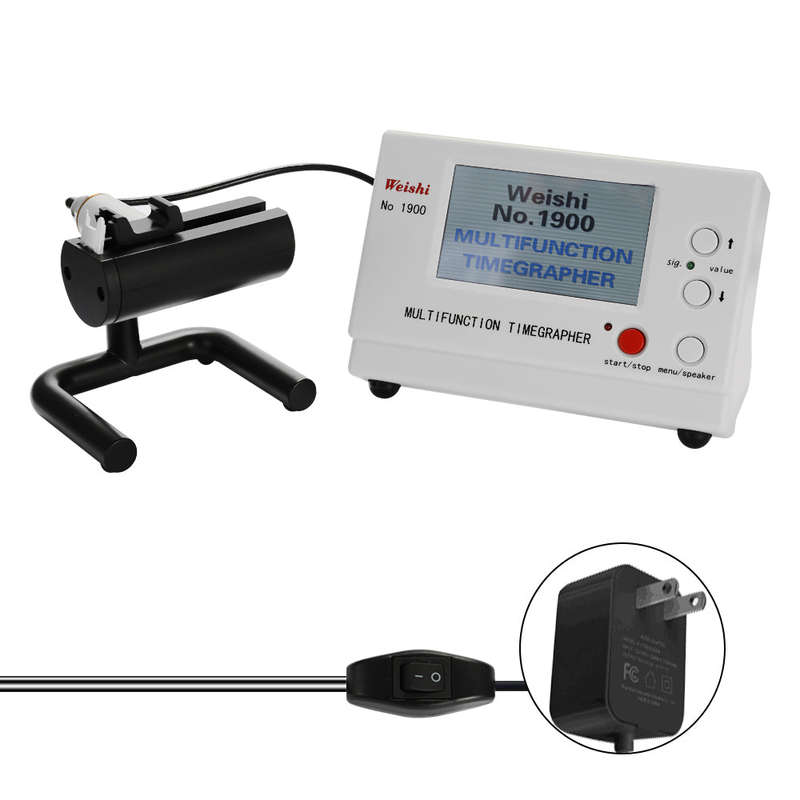

Packing List:
1 * Timegrapher
1 * Timegrapher Sensor
1 * Power Cable
1 * User Manual
