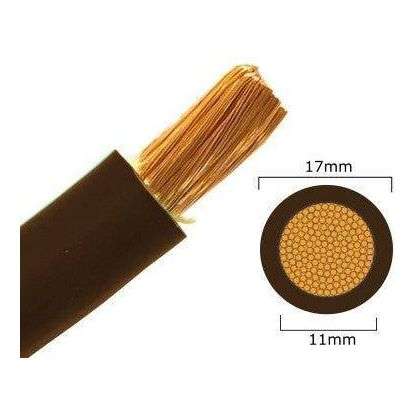

Welding cable is a flexible, PVC coated cable with high conductivity bunched copper conductors with primary insulation of general purpose grade PVC and a tightly bonded water and oil resistant PVC/rubber nitrile blend sheath.
- Highly flexible cable with PVC coating and PVC rubber nitrile inner sheath
- Colour coded for easy identification
- Suitable for harsh welding environments
- Price per 1 metre length**
- Available in 16mm (green), 25mm (blue), 35mm (grey), 50mm (red), 70mm (brown), 95mm (yellow) and 120mm (black)
Specifications:
Cable Size mm² | 100% Duty Cycle | 85% Duty Cycle | 75% Duty Cycle | 60% Duty Cycle | 30% Duty Cycle | 20% Duty Cycle |
16 | 120A | 130A | 140A | 155A | 220A | 270A |
25 | 160A | 175A | 185A | 205A | 295A | 360A |
35 | 200A | 220A | 230A | 260A | 365A | 350A |
50 | 255A | 280A | 295A | 330A | 465A | 570A |
70 | 315A | 340A | 365A | 410A | 575A | 705A |
95 | 380A | 415A | 440A | 480A | 695A | 850A |
120 | 440A | 480A | 510A | 570A | 805A | 985A |
Cable Size | Outer Sheath Colour | Nominal Stranding | Approx. Overall Diam. | Volt Drop | Approx. Cable Weight |
---|---|---|---|---|---|
(mm2) | No X Diam | (mm) | (mV/A/M) | (Kg's per 50mtr) | |
16 | Green | 120 x 0.41 | 76 | 1.210 | 16.4 |
25 | Blue | 180 x 0.41 | 9.90 | 0.780 | 20.1 |
35 | Grey | 252 x 0.41 | 11.00 | 0.554 | 28.8 |
50 | Red | 366 x 0.41 | 13.40 | 0.386 | 39.28 |
70 | Brown | 516 x 0.41 | 15.40 | 0.272 | 54.94 |
95 | Yellow | 456 x 0.501 | 18.60 | 0.206 | 107.06 |
