**** LOCAL STOCK ****
Microcontroller | ESP-8266EX |
---|---|
Operating Voltage | 3.3V |
Digital I/O Pins | 11 |
Analog Input Pins | 1(Max input: 3.2V) |
Clock Speed | 80MHz/160MHz |
Flash | 16M bytes |
Length | 34.2mm |
Width | 25.6mm |
Weight | 2.5g |

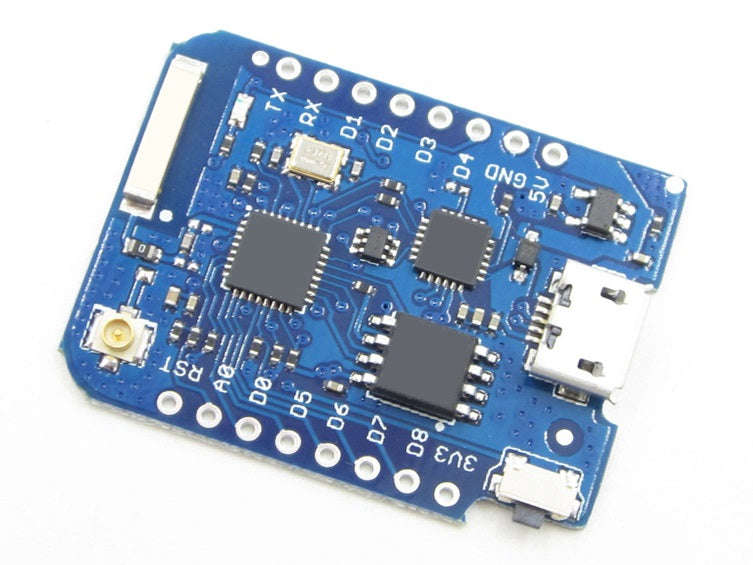

Pin | Function | ESP-8266 Pin |
---|---|---|
TX | TXD | TXD |
RX | RXD | RXD |
A0 | Analog input, max 3.3V input | A0 |
D0 | IO | GPIO16 |
D1 | IO, SCL | GPIO5 |
D2 | IO, SDA | GPIO4 |
D3 | IO, 10k Pull-up | GPIO0 |
D4 | IO, 10k Pull-up, BUILTIN_LED | GPIO2 |
D5 | IO, SCK | GPIO14 |
D6 | IO, MISO | GPIO12 |
D7 | IO, MOSI | GPIO13 |
D8 | IO, 10k Pull-down, SS | GPIO15 |
G | Ground | GND |
5V | 5V | - |
3V3 | 3.3V | 3.3V |
RST | Reset | RST |
