Hand Operated Spot Welder

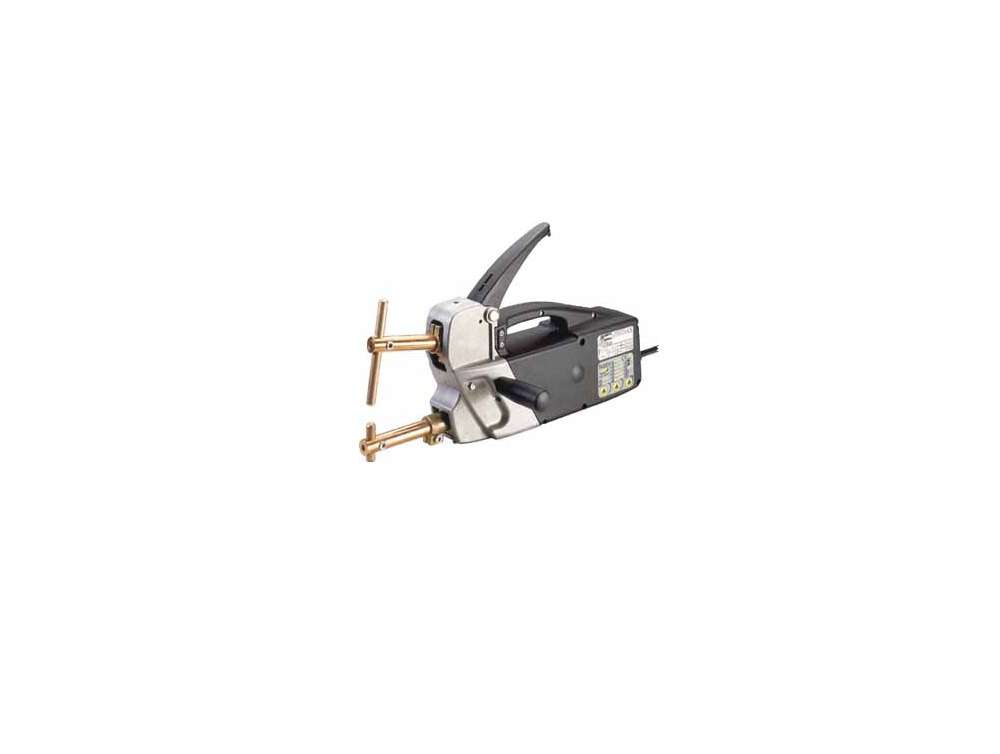

This is an air cooled spot welder with built in transformer and built in synchronized timer/thyristor unit. The machine comes complete and needs only to be fitted with a 220volt plug to be ready to weld. This spot welder uses a hand clamping mechanism to hold and spot weld mild steel and stainless steel sheet together up to a combined thickness of 2mm on standard 125mm arm length.
Please note. * This machine does not have sufficient welding current to weld aluminum.
1/ The machine will be fitted with CuCrZr copper arms with have a throat depth of approx. 125mm. Special arm sets can be designed and manufactured to suit the client's operation.
2/ the weight of the unit with standard 125mm long arms are 10kg. The machine can develop from 40kg to 120kg tip force on standard arm length of 120mm.
3/ the timer and thyristor system for this machine comes built into the rear of the spot gun. In built thyristor unit, stubbing and protection circuits
4/ synchronized timing system. The timing functions include, cycle time in Hz 02 cycles to 65 cycles, phase heat or heat adjustment from 40% to 100% of output current.
5/ on standard setup the machine will delivery 6300amps of welding current at a 2,5ocv voltage on a 125mm throat depth at 2 welds per minute.
DESCRIPTION
SINGLE-PHASE, PORTABLE, MICROPROCESSOR CONTROLLED, SPOT WELDING MACHINE. IT IMPLEMENTS A NEW "FUZZY LOGIC" CONTROL SYSTEM THAT SIMPLIFIES ITS USE AND INCREASES THE SPOT WELDING QUALITY. SUITABLE FOR SPOT WELDING OF SHEETS OF MAX. THICKNESS 2+2 MM. AUTOMATIC ADJUSTMENT OF WELDING TIME AND CURRENT WITH RESPECT TO THE THICKNESS OF THE MATERIAL, CHOICE BETWEEN CONTINUOUS AND PULSED OPERATION (SUITABLE FOR SHEETS WITH HIGH YIELD POINTS - HIGH STRESS), ARMS PRESSURE ADJUSTABLE FROM 40 KG TO 120 KG (WITH ARMS L= 120 MM).
TECHNICAL DATA
EAN CODE
MAINS FREQUENCY
SINGLEPHASE MAINS VOLTAGE
MAX ABSORBED POWER
RATED POWER X=50%
MAINS FUSE
POWER FACTOR
SECONDARY NO LOAD VOLTAGE
MAX SPOT-WELDING CURRENT
MAX WELD THICK ON 2 SHEETS
DUTY CYCLE
INSULATION CLASS
PROTECTION DEGREE
DIMENSIONS (LxWxH)
WEIGHT
Hz
V
kW
kW
A
cosphi
V
A
mm
%
cm
kg 800489746565 4
50 - 60
230
13
2,3
25
0,9
2,5
6300
1 + 1
1,5
B
IP20
44 x 10 x 18,5
10,3
Optional longer arms 300mm long R 3203.00 each + vat (Lead time 2-3 Weeks)
Tip 12mm x 100mm Long.R 221.73 each (Lead Time 2-3 Weeks)
