WESTKEN - 25kva Handispot 380V Spot welder

25kva Handispot 380V

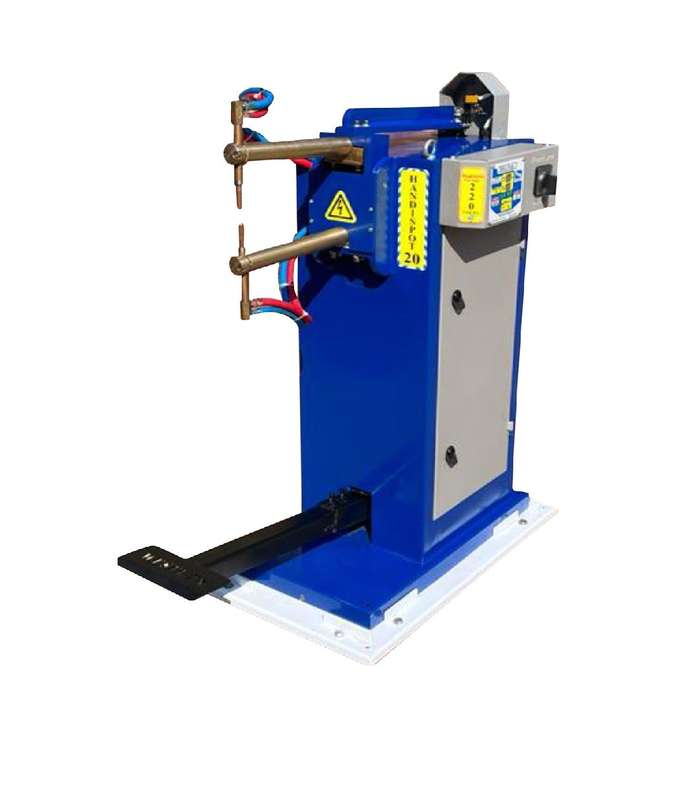

This machine is our 25kva "Handispot" and is based on the following basic specification.

1) Model Name "Handispot 25kva" which is a 380v @ 50 Hz, 2Phase 25kva machine rated at 20% duty cycle.
2) Capable of welding cold rolled mild steel / stainless steel 1.5 + 1.5mm and round bar up to 6mm
3) Foot lever operated welding head with spring follow-up
4) 40mm Brass Arms, 18mm Water Cooled Tip Holder, MT1 12.7mm CuCrZr welding tips.
5) The machine is water cooled and will need a minimum of 10L/min flow through the machine.
6) Digipak 1 timer control operating through a semipack thyristor system.
7) Water cooled transformer.
8) Throat Depth of the machine is 300mm
9) Foot print 1080mm x 450mm x 1200mm (LxWxH)
Technical Specifications
Machine Capacity Continuous Capacity @ 50% duty cycle.
Clean cold rolled plate.
Round bar scale free and clean. KVA
mm
mm 25
1.5+1.5
6+6
Machine Voltage Primary voltage.
Number of transformer tappings V
None 380
0
Mains supply Nominal supply voltage.
Nominal frequency.
Fusing capacity.
Feed cable CSA 10m run. V
Cycles
Amps
mm² 380
50
60
10
