WH148 Dual Double Rotary Potentiometer 1K Linear Adjustable B1K ***LOCAL STOCK***

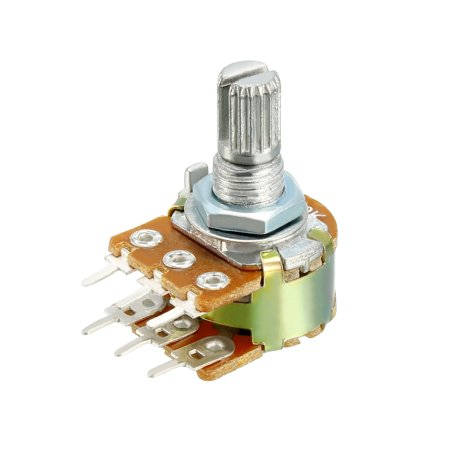

WH148 Dual Double Rotary Potentiometer 1K Linear Adjustable B1K

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

    1K ohm, 6 Terminals, Dual Linear , Suits Most Standard Knobs.
    Top adjustment type and knurled shaft for easy operation in daily use.
    Main used to control electrical devices such as volume controls on audio equipment.
    Knurled shaft with split design for push-on knob.
    Resistance Value 1K ohm
    Adjustment Type Top Adjustment
    Type Dual Linear
    Features Knurled Shaft

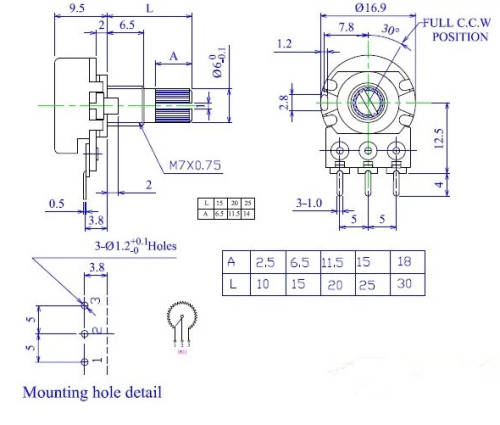

    Shaft Diameter 6mm
    Shaft Length 6.0mm + 8.5mm (Total : 15.6mm)
    Mounting Thread Diameter 7mm
    Base Size 16.9mm x 20.0mm
    Total Height 24.5mm
    Material Carbon film Metal

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
