The CPD3600 is part of Wharfedale Pro's latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For using in stereo the amplifier delivers 870W RMS per channel at 8 Ohms and 1300W RMS per channel at 4 Ohms; a suitable power for medium to large sized complete PA systems for mobile and fixed installation. In bridged mode at 4 Ohms the amplifier generates 3600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.
Key Features
8 Ohms x 2: 870W RMS
4 Ohms x 2: 1300W RMS
8 Ohms Bridged: 2600W RMS
4 Ohms Bridged: 3600W RMS
Class H Technology
Status and clip LEDs
Thermal, overcurrent, DC and output short protect circuitry

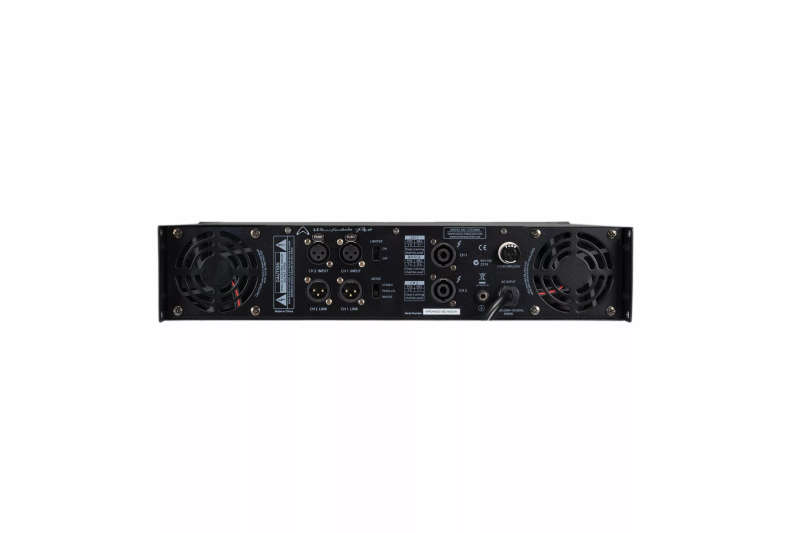

2 x Speakon outputs
2 x XLR outputs to link other audio equipment
2 x XLR inputs
Peak and protect LEDs
Built-in switchable limiter
Continuously variable speed fan
Suitable for touring, rental and installation
Technology
Working in stereo, parallel and bridged modes CPD3600 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.
Precision Control

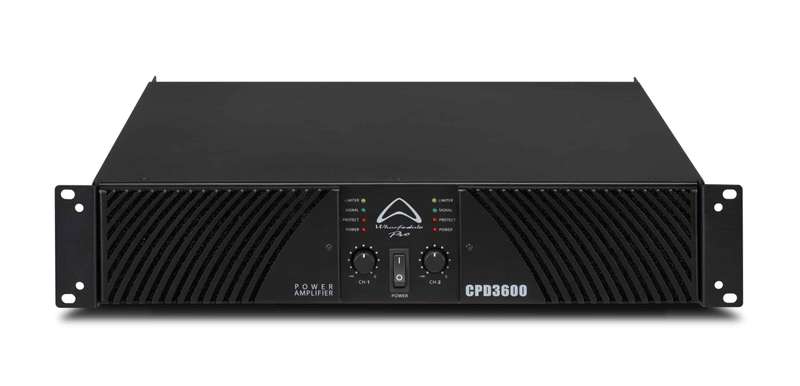

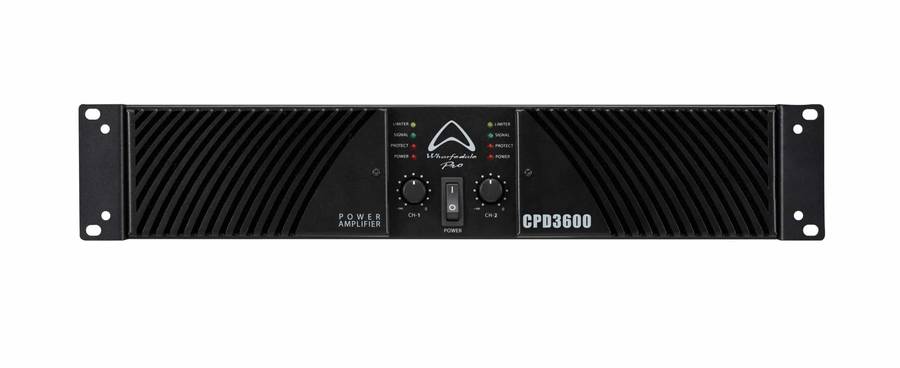

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.
Easy Cleaning
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.
Dirty cooling fans reduce efficiency and can lead to overheating.
Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.
CoolingVariable Speed Fan
Warranty: 1 Year Manufacturer's Warranty
Dimensions: 88 x 483 x 451mm
Weight: 26kg
