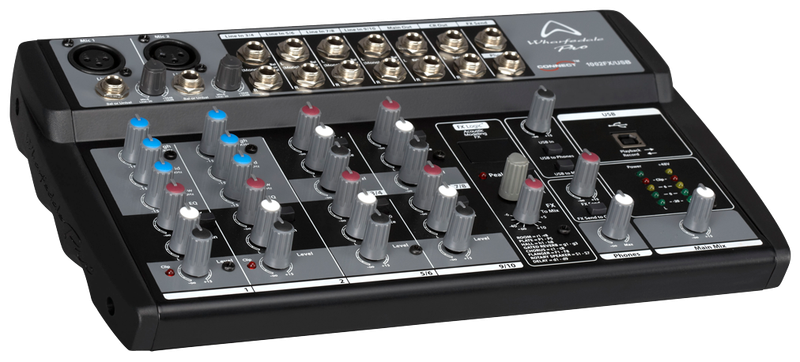

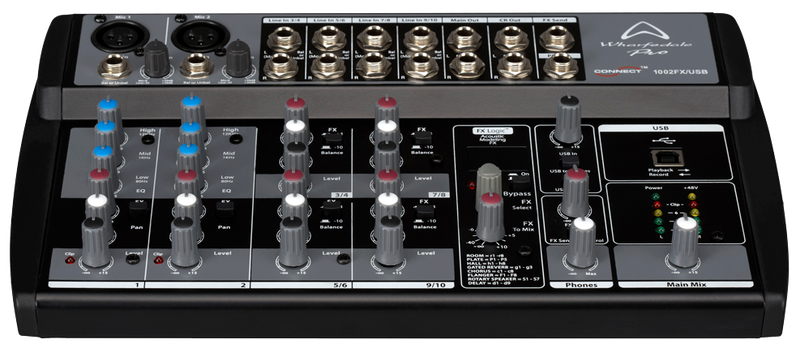

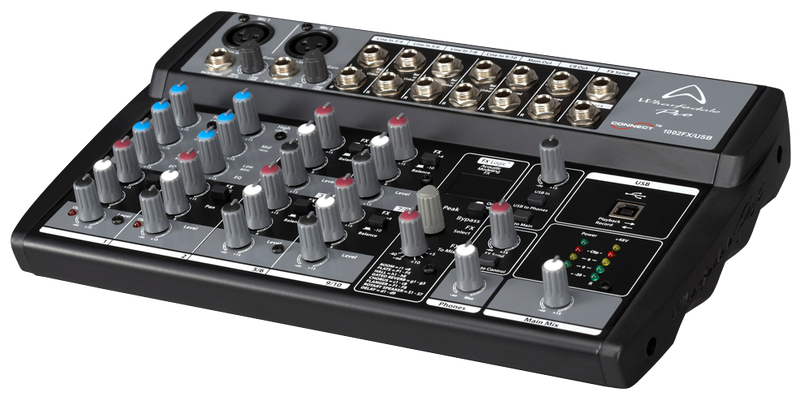

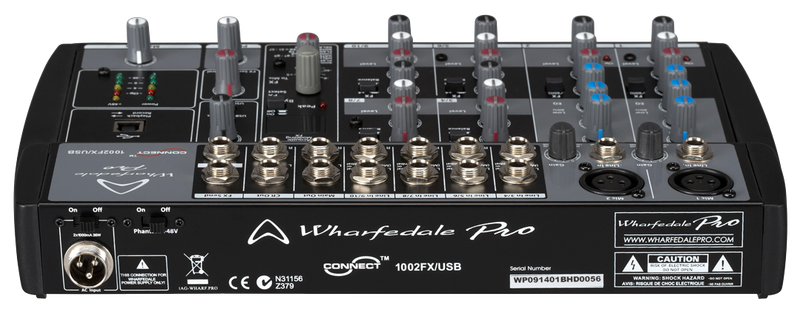

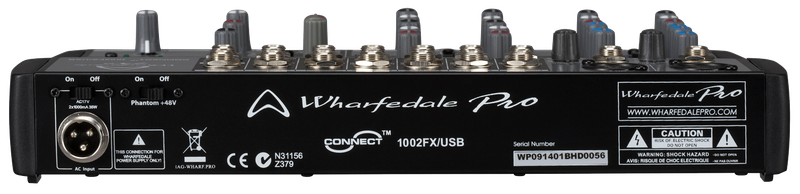

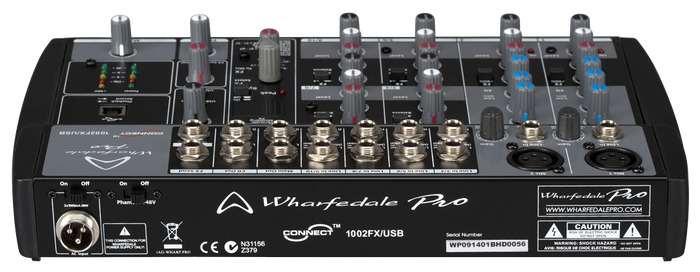

The Wharfedale Pro Connect 1002FX/USB is a compact mixing desk with massive capabilities. If you need a portable mixing desk and you do not want to sacrifice space for connections we have managed to condense ample inputs, outputs digital FX and a USB audio interface into a small footprint mixer which is at home in the studio as it is the road.
Leave the large mixer behind The connect 1002FX/USB is the ideal companion for small scale live performances and discreet sound installations where there simply isn't space for a full scale mixing desk. While packing a wealth of features for mixing and recording it does so with a small footprint. The use of rotary controls as opposed to larger linear faders means space is saved to fit the mixer into small spaces even including guitar gig bags, yet the textured rotary pots operate with a suitable resistance so EQ and level controls can be pin-pointed with accuracy. Small Size, Studio Sound The Connect 1002FX/USB features two studio grade XLR / Jack inputs with phantom power and four additional stereo channels. This makes the mixing desk suitable for performers needing up to 10 inputs including bands. There is also a headphone output for studio style monitoring. 56 Digital FX The FX logic bit DSP offers a total of 56 effects. These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles. Individual FX send controls on each channel mean your chosen FX can be applied with accuracy. USB Audio Interface With a built-in USB audio interface, this updated version enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of your mixing desk. 16-bit / 48 kHz recording ensures CD quality for your audio, whether working in a live or studio environment. With a built in soundcard, users can make use of hands-on style controls and FX processing whilst recording which standard audio interfaces do not offer. Wharfedale Pro Affordability and Quality As with all Wharfedale pro products, the Connect 1002FX/USB is competitively priced yet maintains the essentials of a high quality mixing desk: High headroom, low noise operation ensures a professional sound and integration with any sound system.
Key Features 10 Total inputs (2 x XLR / 6.3mm Jack, 4 x twin 6.3mm jack) 4 x 6.3mm jack outputs Studio grade phantom power XLR 16 bit / 48kHz built in USB audio interface Playback and record via USB audio interface Headphone output Pan / Balance control Clip LED display Ideal for home studio recording and live use slimline profile for portability and to fit in gig bags
Warranty: 1 Year Manufacturer's Warranty
Dimensions: 293.9mm x 83.8mm x 52.8mm
Weight: 1.37kg
