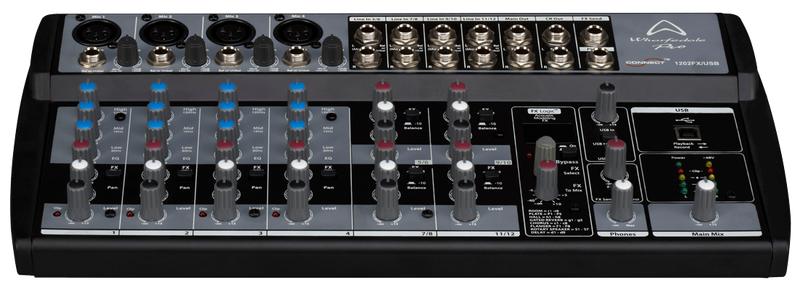

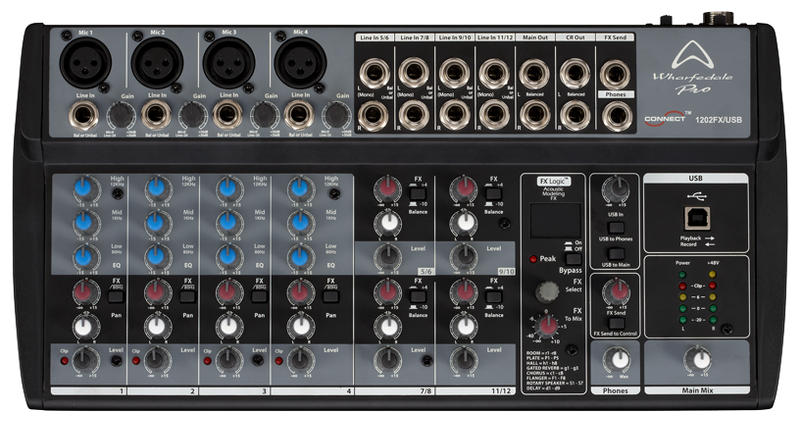

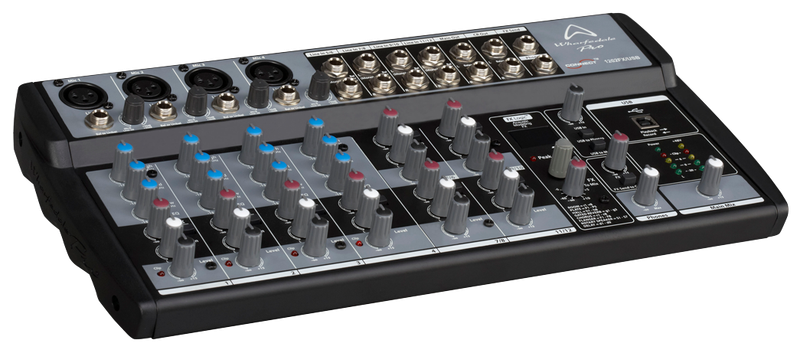

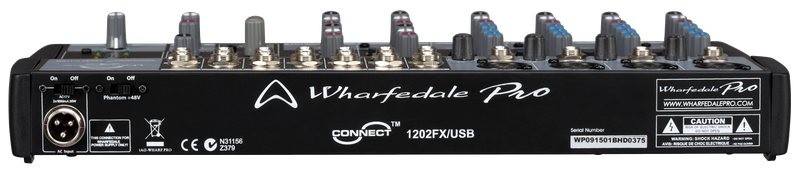

Wharfedale Connect 1202FX/USB 4xMono 4xStereo Channel Mixer with Effects

The Wharfedale Pro Connect 1202FX/USB is a compact mixing desk with massive capabilities. If you need a portable mixing desk and you do not want to sacrifice space for connections we have managed to condense ample inputs, outputs, digital FX and a USB audio interface into a small footprint mixer which is at home in the studio as it is the road.

Key Features

16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
4 x 6.3mm jack outputs (master, control room)
Studio grade phantom power XLR
16 bit / 48kHz built in USB audio interface
Playback and record via USB audio interface
80Hz HPF on first 4 channels
Headphone output
Pan / Balance control
Clip LED display
Ideal for home studio recording and live use
slimline profile for portability and to fit in gig bags
FX Send
56FX Logic effects built-in with independent send

Leave the large mixer behind
The connect 1202FX/USB is the ideal companion for small scale live performances and discreet sound installations where there simply isn't space for a full scale mixing desk being the largest in the connect series, the mixer packs a wealth of features for mixing and recording but still retains a similarly small footprint as of the smaller models. The use of rotary controls as opposed to larger linear faders means space is saved to fit the mixer into small spaces even including guitar gig bags, yet the textured rotary pots operate with a suitable resistance so EQ and level controls can be pin-pointed with accuracy.

Studio Sound, Small Size
The Connect 1002FX/USB features four studio grade XLR / Jack inputs with phantom power and four additional stereo channels. This makes the mixing desk suitable for performers needing up to 10 inputs including bands. There is also a headphone output for studio style monitoring.

56 Digital FX
The FX logic bit DSP offers a total of 56 effects. These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles. Individual FX send controls on each channel mean your chosen FX can be applied with accuracy.

SPECIFICATIONS

Channels: 12
Inputs: 4 x XLR, 12 x 6.3mm Jack
Outputs: 4 x 6.3mm Jack
Headphone Output: 6.3mm Jack
EQ: 3-Band
FX: 56 FX Logic Acoustic Modelling FX: Room, Plate, Hall and Gated Reverb, Chorus, Flanger, Rotary speaker, Delay
Phantom Power: Yes
USB: 16-bit / 48kHz
Signal To Noise Ratio: >78dB 5dB @ Max Gain
Frequency Response: 20Hz-20kHz 1dB
Display: Dual 4-Segment LED, FX Setting Display

Warranty: 1 Year Manufacturer's Warranty

Dimensions: 360.2mm x 183.8mm x 52.8mm

Weight: 1.69kg
