Wharfedale Delta AXF12 : 12 Active Speaker

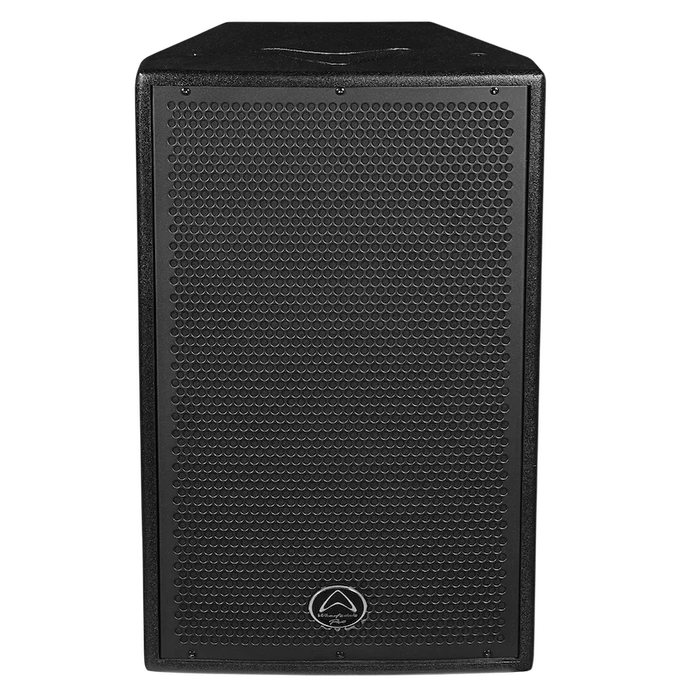

Wharfedale Delta AXF12 : 12″ Active Speaker

New 2 available
Indicative market price: R13,395.00
Only 2 left – grab it before it’s gone!
R11,095.00
17% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
WHAR-DELTA AXF12
Bob Shop ID
652484596

The new DELTA-AXF models have the same solid Baltic birch plywood construction and the same custom made Wharfedale Pro drivers as their predecessors, but with the new FIR filters the sonic improvements are clear. The updated 'AXF' electronics are fully interchangeable with existing DELTA active models and can be quickly retro-fitted by Service engineers. AXF models are also perfectly tuned to be used with the current DELTA-AX15B and DELTA-AX18B active subwoofers.

Through both electronic and software optimisation, the new DELTA-AXF12 and AXF15 models now feature internal FIR filters using 'DNA' harvested from the flagship WLA active line array and monitors system development. This FIR filtering has brought independent control of magnitude and phase, more detailed equalisation and optimisation of frequency and power response. In the end….this results in highly improved system performance. The amplifiers have also been optimised, resulting in 800 W Continuous power.

Key Features

12 two-way bi-amplified active loudspeaker
800 watts Continuous power
1600 watts Peak power
90° x 45° dispersion
2 HF Compression driver
3 LF voice coil
Advanced Internal FIR DSP
130.5 dB Max SPL @ 1 meter

Specifications

System Type : Active 12" 2-way Bi-Amplified
Frequency Response (+/-3 dB) : 60 Hz — 20 KHz
Frequency Range (-10 dB) : 55 Hz — 20 KHz
Calculated Maximum SPL @1m : 130.5 dB
Low Frequency Transducer — Size ( mm / inches) : 332 mm / 12
Coil Size ( mm / inches) : 75 mm / 3
Impedance : 4
High Frequency Transducer — Type : Compression Driver
Coil Size ( mm / inches) : 51.2 mm / 2
Exit Size ( mm / inches) : 25 mm / 1"
Diaphragm Material : Titanium
Impedance : 8
Nominal Coverage (H x V) : 90° x 45°

Amplifier
Amplifier Design : Class D
Power Rating: 1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)
Power On Protection : Power Switch On/Off Mute
Thermal Protection : Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down : 80% Nominal Line Voltage
Driver Protection : Independent LF and HF Limiters
DC and Short Protection : Yes
Clip Limiter : Turns on Approx 650 W Output
Limiter Indicator : Red LED
Power Indicator : Green LED

Connectors
Input A — type : Switchable Balanced Mic or Line Level Input
Input Sensitivity : Mic:-40 dBu Line:0 dBu
Maximum Input Level : 22 dBu
Input Connector : XLR 1/4Combo jack / 2 x RCA
Input Impedance : Balanced:20 K Unbalanced:10 K
Line Output Connector : Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced : Balanced: 200 Unbalanced:100
Loop Gain : Mic:69 dB, Line:29 dB
AC Power details — Power Supply : High Efficiency Switching Mode Power Supply
AC Power Options : AC100-120 V~/220-240 V~,50/60 Hz
Hardware — Rigging : M10 x 6
Pole Mount : Dual Angle (0 or 10) 35 mm Pole Socket
Enclosure Material and finish : 15 mm Plywood
Colour Options : Black Paint
Grille Material & Finish : 1.5 Steel
Unpacked dimensions — Height : 640 mm / 25.2
Width (Front) : 390 mm / 15.35
Width (Back) : 241.2 mm / 9.5
Depth : 373 mm / 14.69
Packed Dimensions — Height : 745 mm / 29.3"
Width (Front) : 566 mm / 22.3"
Width (Back) : 328 mm / 12.9"
Depth : 464 mm / 18.3"
Net Weight ( kg / lbs) : 26.5 kg / 58.3 lbs
Gross Weight ( kg / lbs) : 30.0 kg / 66.0 lbs
