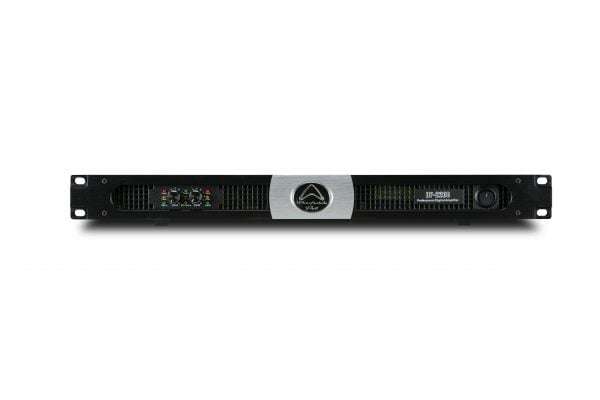

Suitable for professional live sound reinforcement or fixed installations, the stereo DP-2200 delivers extreme power from a light weight box. Its advanced switch mode power supply and super-efficient Class D topology delivers high power with low distortion.
|
Model Name | DP-2200 |
Power Output | |
Stereo power output 8 x 2 | 2000w |
4 x 2 | 3400w |
Bridged mono output 16 | 4000w |
Bridged mono output 8 | 6800w |
Input sensitivity & Impedance | |
Sensitivity | selectable 41/38/35/32dB |
Balanced XLR input | 20k |
Max input level | 22dBu (9.7Vrms) |
Voltage gain | 41dB |
Slew rate | >50V / s |
Crosstalk | <-90dB |
S/N | >112dB |
Distortion (1W) | <0.02% |
Frequency response | |
+/-1dB @ 8 | 20Hz — 20kHz |
+/-3dB @ 8 | 20Hz — 30kHz |
Damping factor | >5000 |
Topology | Class D |
Connectors | |
Signal input | Female & Male XLR jacks |
Power output | speakON compatible |
Controls | |
Front panel | AC Switch, CH and CH2 gain knobs |
Rear panel | Parallel, Stereo & Bridge mode switch, Limiter switch |
Thermal, Over-current, Output DC, Output short protect | |
Indicators | Power, Protect, Signal, Limiter |
Cooling | Variable speed fan |
AC Power | 90 ~ 260VAC, 50 ~ 60Hz |
Dimensions | 44 * 485 * 370mm |
Weight (Net) | 9.28kg |
Weight (Gross) | 11.3kg |
