Name: Wharfedale Pro Delta AXF15
SKU: WHAR-DELTA AXF15
Price: 12595.00 ZAR
Availability: InStock

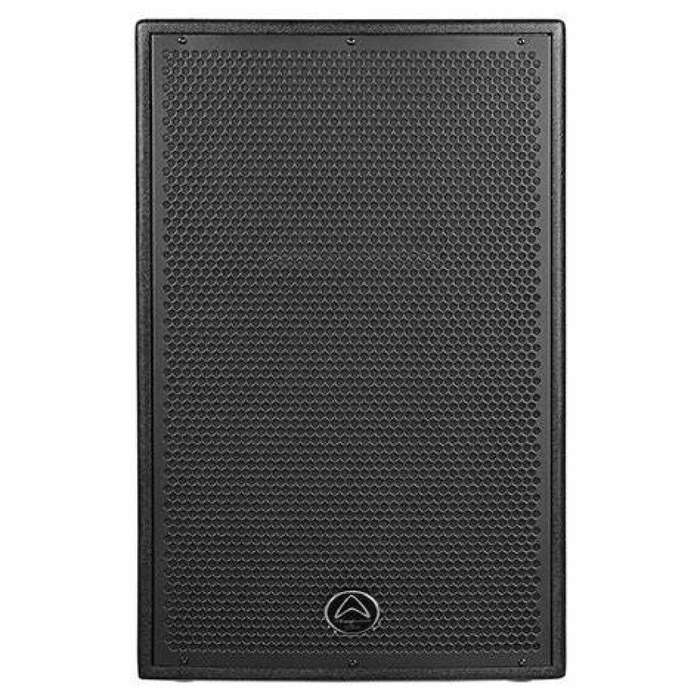

Wharfedale Pro Delta AXF15

New

6 available

Indicative market price: R15,195.00

R12,595.00

17% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Soundselect659

98.10 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

WHAR-DELTA AXF15

Bob Shop ID

652484394

Product Description

Delta-AXF12 and Delta-AXF15 use 2 x Class D amplifiers. These are specifically tuned and selected to be the perfect match for the HF and LF drivers inside. With multiple analogue inputs, Delta-AXF full-range models are ready to connect to whatever signal source you have!

Key Features

15 two-way bi-amplified active loudspeaker
800 watts Continuous power
1600 watts Peak power
90° x 45° dispersion
2 HF Compression driver
3 LF voice coil
Advanced Internal FIR DSP
131.5 dB Max SPL @ 1 meter

General Specifications

Model Name	DELTA-AXF12	DELTA-AXF15
System Type	Active 12" 2-way Bi-Amplified	Active 15" 2-way Bi-Amplified
Frequency Response (+/-3 dB)	60 Hz — 20 KHz	50 Hz — 20 KHz
Frequency Range (-10 dB)	55 Hz — 20 KHz	45 Hz — 20 KHz
Calculated Maximum SPL @1m	130.5 dB	131.5 dB
Low Frequency Transducer — Size ( mm / inches)	332 mm / 12	404 mm / 15
Coil Size ( mm / inches)	75 mm / 3	75 mm / 3
Impedance	4	4
High Frequency Transducer — Type	Compression Driver	Compression Driver
Coil Size ( mm / inches)	51.2 mm / 2	51.2 mm / 2
Exit Size ( mm / inches)	35.6 mm / 1.4	25 mm / 1"
Diaphragm Material	Titanium	Titanium
Impedance	8	8
Nominal Coverage (H x V)	90° x 45°	90° x 45°
Amplifiers
Amplifier Design	Class D	Class D
Power Rating:	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)
Power On Protection	Power Switch On/Off Mute	Power Switch On/Off Mute
Thermal Protection	Amplifier Shut Down. Auto Reset	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	80% Nominal Line Voltage	80% Nominal Line Voltage
Driver Protection	Independent LF and HF Limiters	Independent LF and HF Limiters
DC and Short Protection	Yes	Yes
Clip Limiter	Turns on Approx 600 W Output	Turns on Approx 650 W Output
Limiter Indicator	Red LED	Red LED
Power Indicator	Green LED	Green LED
Connectors
Input A — type	Switchable Balanced Mic or Line Level Input	Switchable Balanced Mic or Line Level Input
Input Sensitivity	Mic:-40 dBu Line:0 dBu	Mic:-40 dBu Line:0 dBu
Maximum Input Level	22 dBu	22 dBu
Input Connector	XLR 1/4Combo jack / 2 x RCA	XLR 1/4Combo jack / 2 x RCA
Input Impedance	Balanced:20 K Unbalanced:10 K	Balanced:20 K Unbalanced:10 K
Line Output Connector	Switchable LOOP/MIX Balanced pin XLR Connector	Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced	Balanced: 200 Unbalanced:100	Balanced: 200 Unbalanced:100
Loop Gain	Mic:69 dB, Line:29 dB	Mic:69 dB, Line:29 dB
AC Power details — Power Supply	High Efficiency Switching Mode Power Supply	High Efficiency Switching Mode Power Supply
AC Power Options	AC100-120 V~/220-240 V~,50/60 Hz	AC100-120 V~/220-240 V~,50/60 Hz
Hardware — Rigging	M10 x 6	M10 x 6
Pole Mount	Dual Angle (0 or 10) 35 mm Pole Socket	Dual Angle (0...
