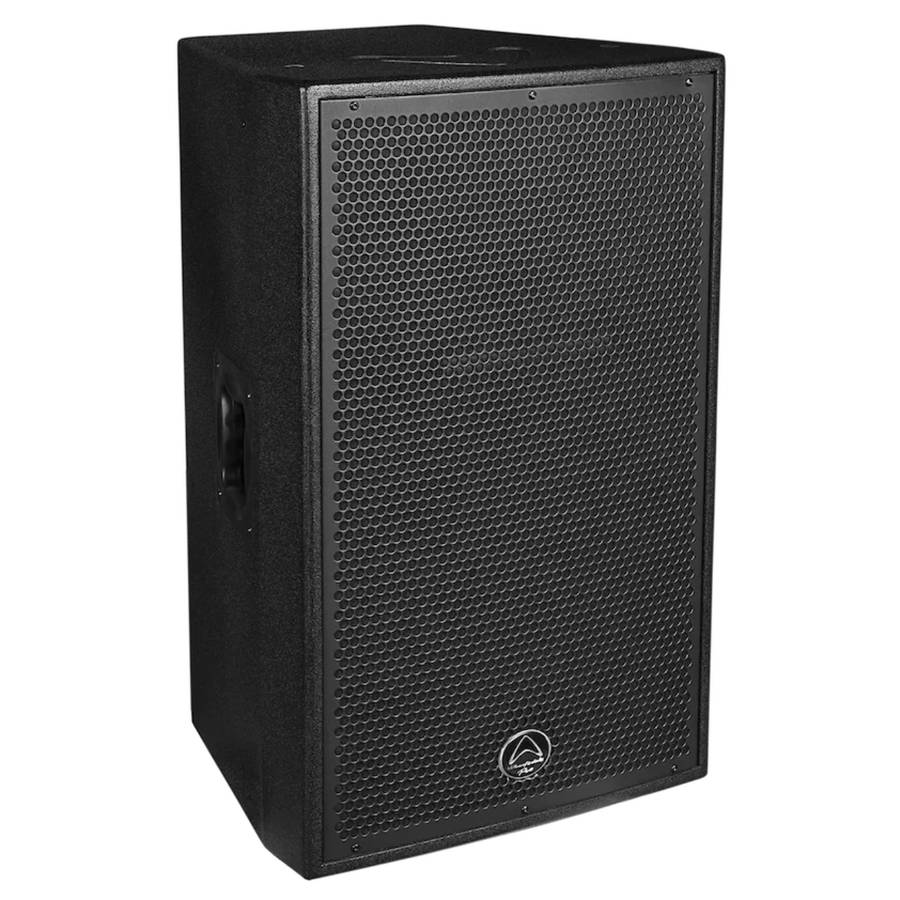

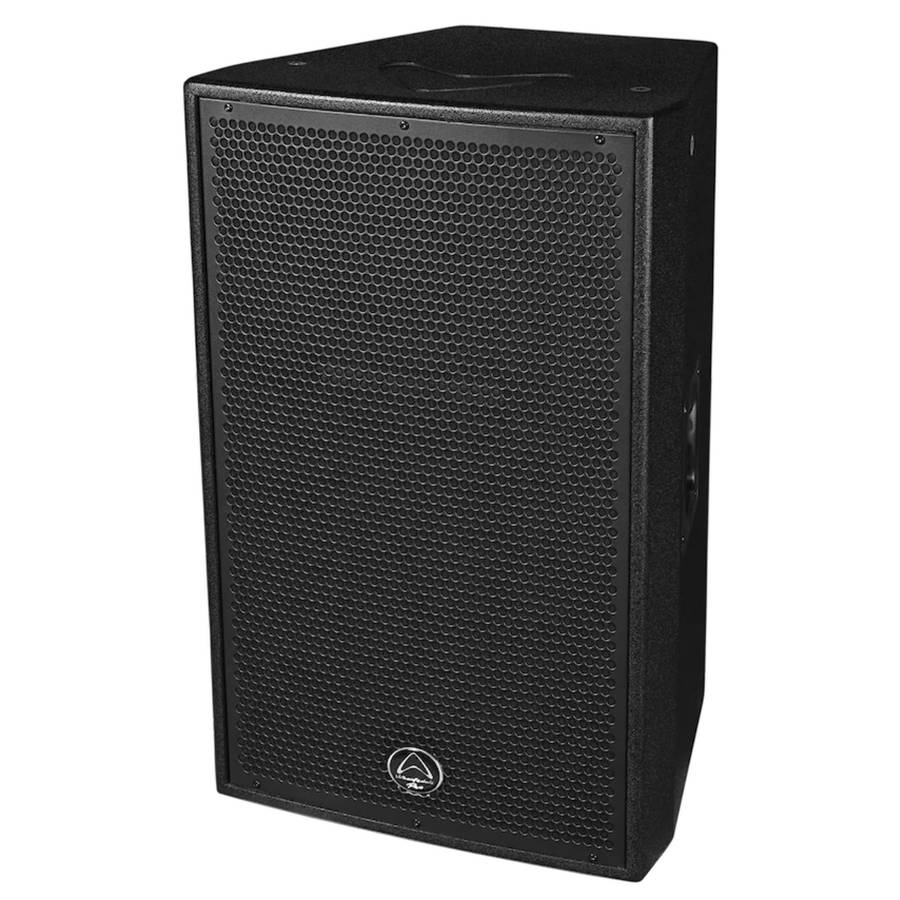

Name: Wharfedale Pro Delta AXF15
SKU: WHAR-DELTA AXF15
Price: 14935.00 ZAR
Availability: InStock

Wharfedale Pro Delta AXF15

New

4 available

Only 4 left – grab it before it’s gone!

R14,935.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

BounceOnline236

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

WHAR-DELTA AXF15

Bob Shop ID

656514678

Delta-AXF12 and Delta-AXF15 use 2 x Class D amplifiers. These are specifically tuned and selected to be the perfect match for the HF and LF drivers inside. With multiple analogue inputs, Delta-AXF full-range models are ready to connect to whatever signal source you have!

Key Features

15 two-way bi-amplified active loudspeaker
800 watts Continuous power
1600 watts Peak power
90° x 45° dispersion
2 HF Compression driver
3 LF voice coil
Advanced Internal FIR DSP
131.5 dB Max SPL @ 1 meter

General Specifications

...

Model Name	DELTA-AXF12	DELTA-AXF15
System Type	Active 12" 2-way Bi-Amplified	Active 15" 2-way Bi-Amplified
Frequency Response (+/-3 dB)	60 Hz — 20 KHz	50 Hz — 20 KHz
Frequency Range (-10 dB)	55 Hz — 20 KHz	45 Hz — 20 KHz
Calculated Maximum SPL @1m	130.5 dB	131.5 dB
Low Frequency Transducer — Size ( mm / inches)	332 mm / 12	404 mm / 15
Coil Size ( mm / inches)	75 mm / 3	75 mm / 3
Impedance	4	4
High Frequency Transducer — Type	Compression Driver	Compression Driver
Coil Size ( mm / inches)	51.2 mm / 2	51.2 mm / 2
Exit Size ( mm / inches)	35.6 mm / 1.4	25 mm / 1"
Diaphragm Material	Titanium	Titanium
Impedance	8	8
Nominal Coverage (H x V)	90° x 45°	90° x 45°
Amplifiers
Amplifier Design	Class D	Class D
Power Rating:	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)	1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)
Power On Protection	Power Switch On/Off Mute	Power Switch On/Off Mute
Thermal Protection	Amplifier Shut Down. Auto Reset	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	80% Nominal Line Voltage	80% Nominal Line Voltage
Driver Protection	Independent LF and HF Limiters	Independent LF and HF Limiters
DC and Short Protection	Yes	Yes
Clip Limiter	Turns on Approx 600 W Output	Turns on Approx 650 W Output
Limiter Indicator	Red LED	Red LED
Power Indicator	Green LED	Green LED

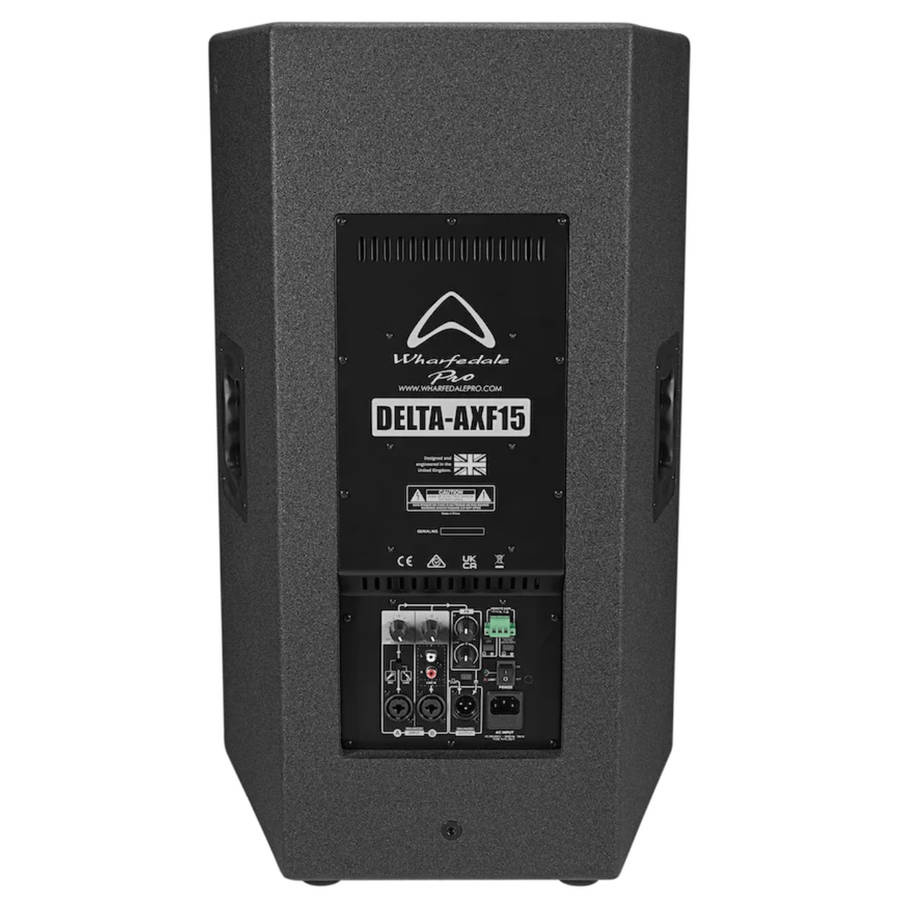

Connectors
Input A — type	Switchable Balanced Mic or Line Level Input	Switchable Balanced Mic or Line Level Input
Input Sensitivity	Mic:-40 dBu Line:0 dBu	Mic:-40 dBu Line:0 dBu
Maximum Input Level	22 dBu	22 dBu
Input Connector	XLR 1/4Combo jack / 2 x RCA	XLR 1/4Combo jack / 2 x RCA
Input Impedance	Balanced:20 K Unbalanced:10 K	Balanced:20 K Unbalanced:10 K
Line Output Connector	Switchable LOOP/MIX Balanced pin XLR Connector	Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced	Balanced: 200 Unbalanced:100	Balanced: 200 Unbalanced:100
Loop Gain	Mic:69 dB, Line:29 dB	Mic:69 dB, Line:29 dB
AC Power details — Power Supply	High Efficiency Switching Mode Power Supply	High Efficiency Switching Mode Power Supply
AC Power Options	AC100-120 V~/220-240 V~,50/60 Hz	AC100-120 V~/220-240 V~,50/60 Hz
Hardware — Rigging	M10 x 6	M10 x 6
Pole Mount	Dual Angle (0 or 10) 35 mm Pole Socket	Dual Angle (0 or 10) 35 mm Pole Socket
