Wharfedale Pro DP-4035i Wharfedale Pro DP-4035i
Wharfedale Pro DP-4035i Wharfedale Pro DP-4035i

Wharfedale Pro DP-4035i

New 10 available
R17,175.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
WHAR-DP 4035I
Bob Shop ID
628377654

The DP-4035i

The new DP-4035i brings all the DNA of the DP series into a configuration which is perfect for fixed installation.  A versatile amplifier solution delivering 4 channels of power to either high or low impedance systems.  The hardware is designed with installation in mind. A tamper-proof front grille protects the channel volume controls, while Euroblocks are used for easy installation on rear panel connections, including GPIO. The power switch is also safely placed on the rear panel. As with the other models in the DP series, the input sensitivity is selectable between 1V and 0.775 V to cater for almost any input source. It is also able to deliver up to 4 x 765 W into 2 Ohms or 4 x 765 W to a 100 V Hi-Z system.DP-4035i also has a wide range AC input, allowing it to be used, reliably in environments where the AC supply may fluctuate.

Key Features

  • Made for installation
  • GPIO connections
  • 4-channel operation
  • 2 Ohm stability
  • 100 V / 70 V operation
  • Low impedance operation
  • Switchable input sensitivity
  • Wide range AC input
  • PFC for increased efficiency

General Specifications

ModelDP-4035i
Rated Power (W — THD = 1%, Each channel works simultaneously with continuous sinusoidal @ 1 KHz)8 / Stereo4 x 450
4 / Stereo4 x 765
2 / Stereo4 x 765
16 / Bridge2 x 900
8 / Bridge2 x 1530
4 / Bridge2 x 1530
100 V Hi-Z4 x 765
70 V Hi-Z4 x 450

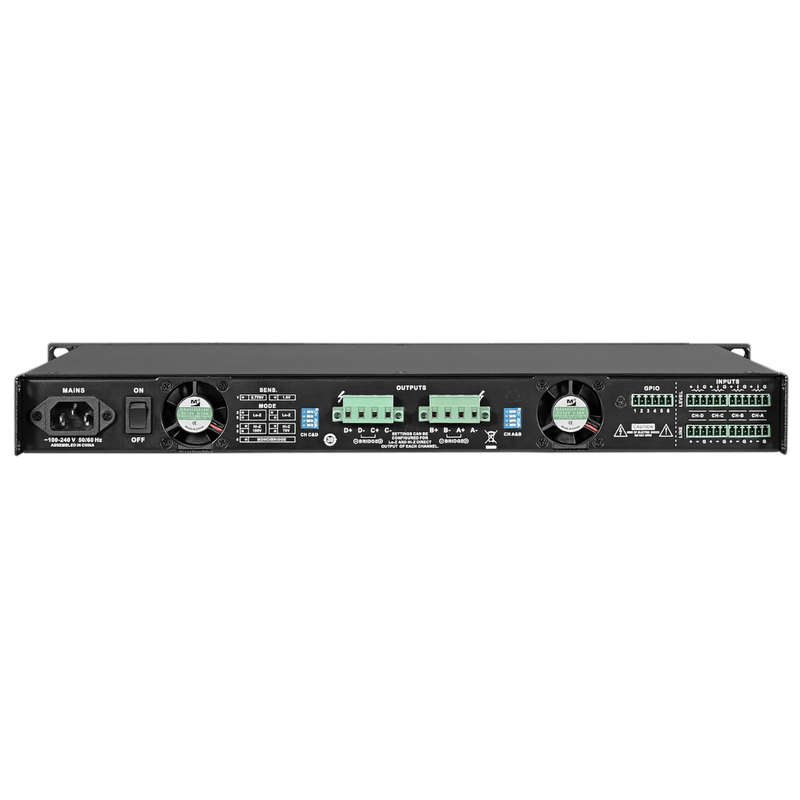

Rear panel
Input ConnectorsPhoenix MC 1,5/12-ST-3,81
Remote Level control (10 Kohm) connectorsPhoenix MC 1,5/12-ST-3,81
Output ConnectorsPhoenix PC 5/8-STF1-7,62
GPIO — Remote ON/OFF — Link connectorsPhoenix MC 1,5/6-ST-3,81
Mode SwitchLO-Z, HI-Z 100 V, HI-Z 70 V, MONO-BRIDGE
Input Sensitivity Switch1 V (35 dB), 0.775 V (38 dB)

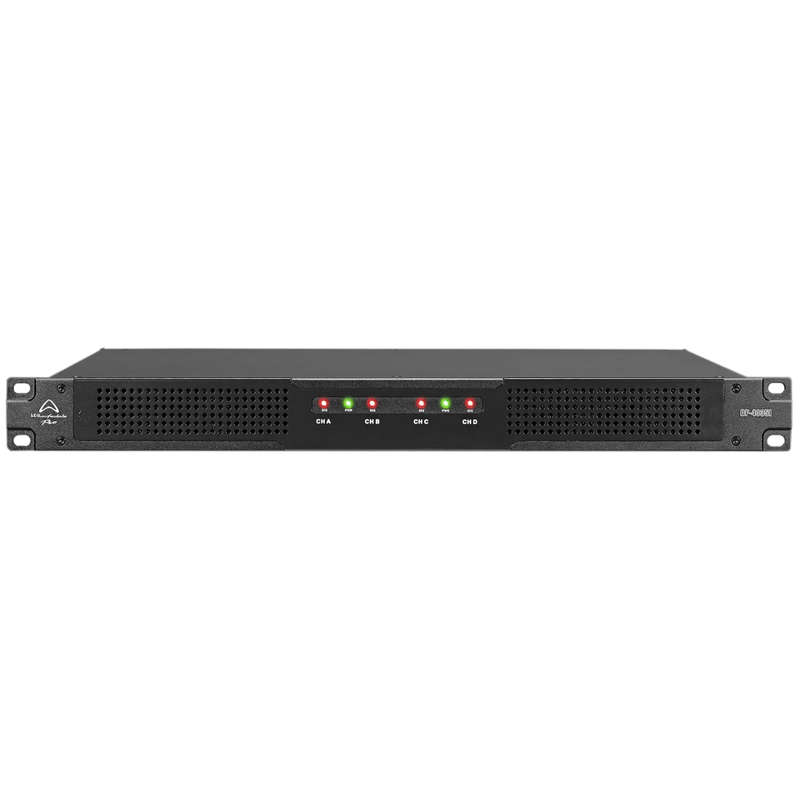

Front Panel
Signal LEDGreen / -32 dBu — Yellow / Limit — Red / Protection
Power LEDGreen / ON — Yellow / High Temperature
Level Control
THD+NTypical: 0.05%. (10% Rated Power, 8 )
Cross-Talk90 dB (20 Hz-1 KHz, Below Rated Power)
Frequency Response Lo-Z, 8 Typical:±0.5 dB (10% Rated Power, 20 Hz-20 KHz)
Hi-ZTypical:±0.5 dB(10% Rated Power,40 Hz-16 KHz)
Input Impedance20 k (Balanced)10 k (Unbalanced)
Damp FactorTypical:300 (20 Hz-200 Hz, Lo-Z, 8 )
SNR100 dB (A weighted, 20 Hz-20 KHz, 8 )
Main Power100~240 V AC ±10%50/60 Hz
ProtectionUnder voltage, DC, Over temperature, Limiter, Overload, Short.
Net Size483 x 45 x 370 mm (W×H×D)
Net Weight8.4 kg
