Take Control
To maximise and protect the performance of any PA system, DSP is essential.

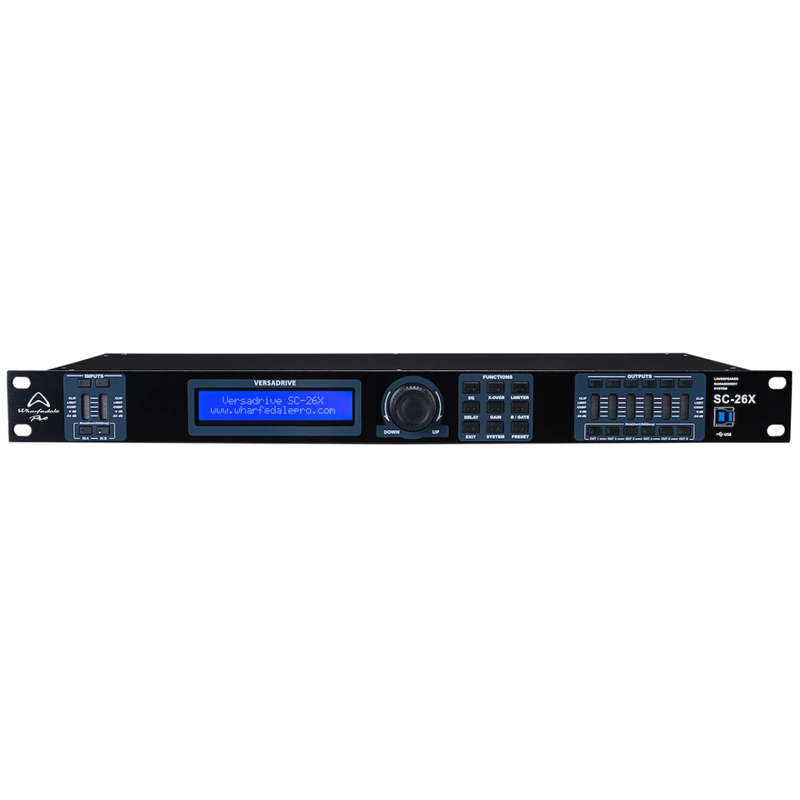

Introducing the entry-level model in the Versadrive series of DSP processors from Wharfedale Pro — SC-26X. The SC-26X replaces the long-serving SC-26 and, although listed as an entry model, the new SC-26X brings several important and practical features to loudspeaker management.
Key Features
- RMS Compressors and Peak Limiters.
- Dual band Dynamic EQ stage on Inputs.
- 96 KHz sampling frequency
- PC Software control
- USB, Ethernet and RS485
- Protect and survive!

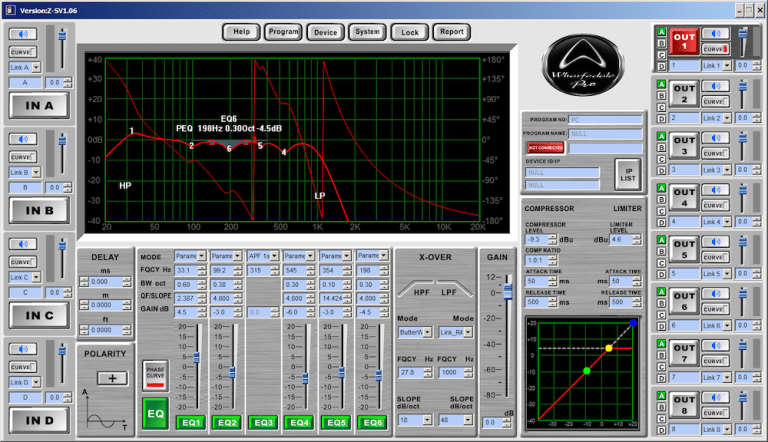

Software Control
All parameters of the Versadrive can be controlled via PC. Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets. Using the PC software also allows for system backups to be made.
Effects To Control Your Rig
In the Output stage of SC-26X, the Limiters section includes RMS Compressors and Peak Limiters. These two features on their own will be highly appreciated by customers who have experienced system damage through lack of DSP.
Along with the time-saving 'Automatic Gain Control', SC-26X also has dual-band Dynamic EQs available at its Input stages.
These advanced EQ systems can effortlessly address issues in the source signal such as tonal imbalances or resonances.
DSP Quality
All Versadrive models feature the highest quality 24-bit 96 KHz AD/DA converters.
From input and output phase adjustment, delay timing, compression, limiting, parametric EQ, and multiple choices of HP and LP filtering, it's easy to tweak the parameters until the system is perfectly balanced.
General Specifications
| Model Name | Versadrive SC-26X |
|---|
| Inputs | 2 x XLR socket |
| Outputs | 6 x XLR pin |
| Input Impedance | Balanced : 20 K |
| Output Impedance | Balanced : 100 K |

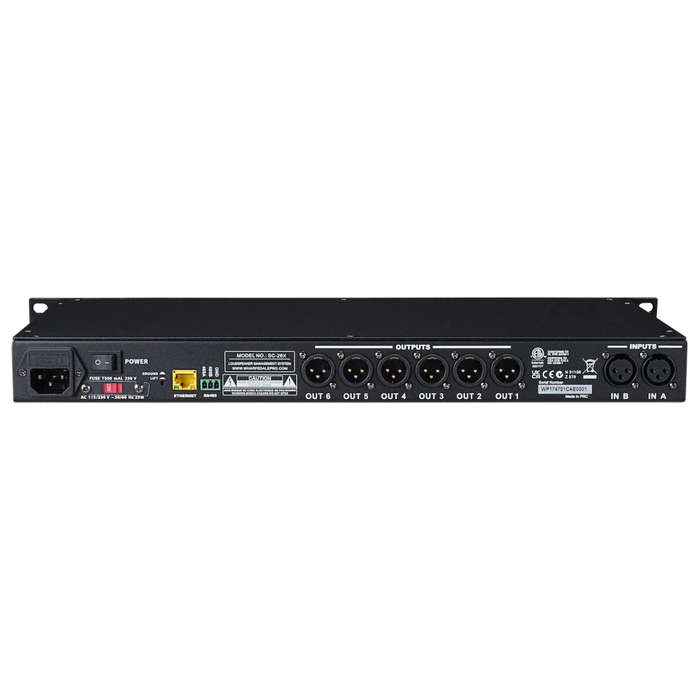

| PC Port | USB (Front panel). Ethernet and RS485 (Rear panel) |
| CMRR | >70 dB (1 KHz) |
| Input range | +16.3 dBu |
| Frequency Response | 19.7 Hz — 20 KHz (+/- 0.5 dB) |
| SNR | >104 dB |
| THD | < 0.01% (Output = 0 dBu / 1 KHz) |
| Channel separation | > 100 dB (1 KHz) |
| Processor | 32-bit processor |
| AD / DA converter | 24-bit, 96 KHz sampling frequency |
| Display | 2 x 24 LCD backlight display. 5-band LED display. Mute / Editing status |
| Power consumption | 25 W |
| Power | AC 110 V / 220 V 50 / 60 Hz |
| Dimensions — Unpacked (W x D x H) | 482 mm x 190 mm x 44 mm |
| Net Weight | 3.6 Kg |
| Dimensions — Packed (W x D x H) | 562 mm x 296 mm x 98 mm |
| Gross Weight | 4.5 Kg |
