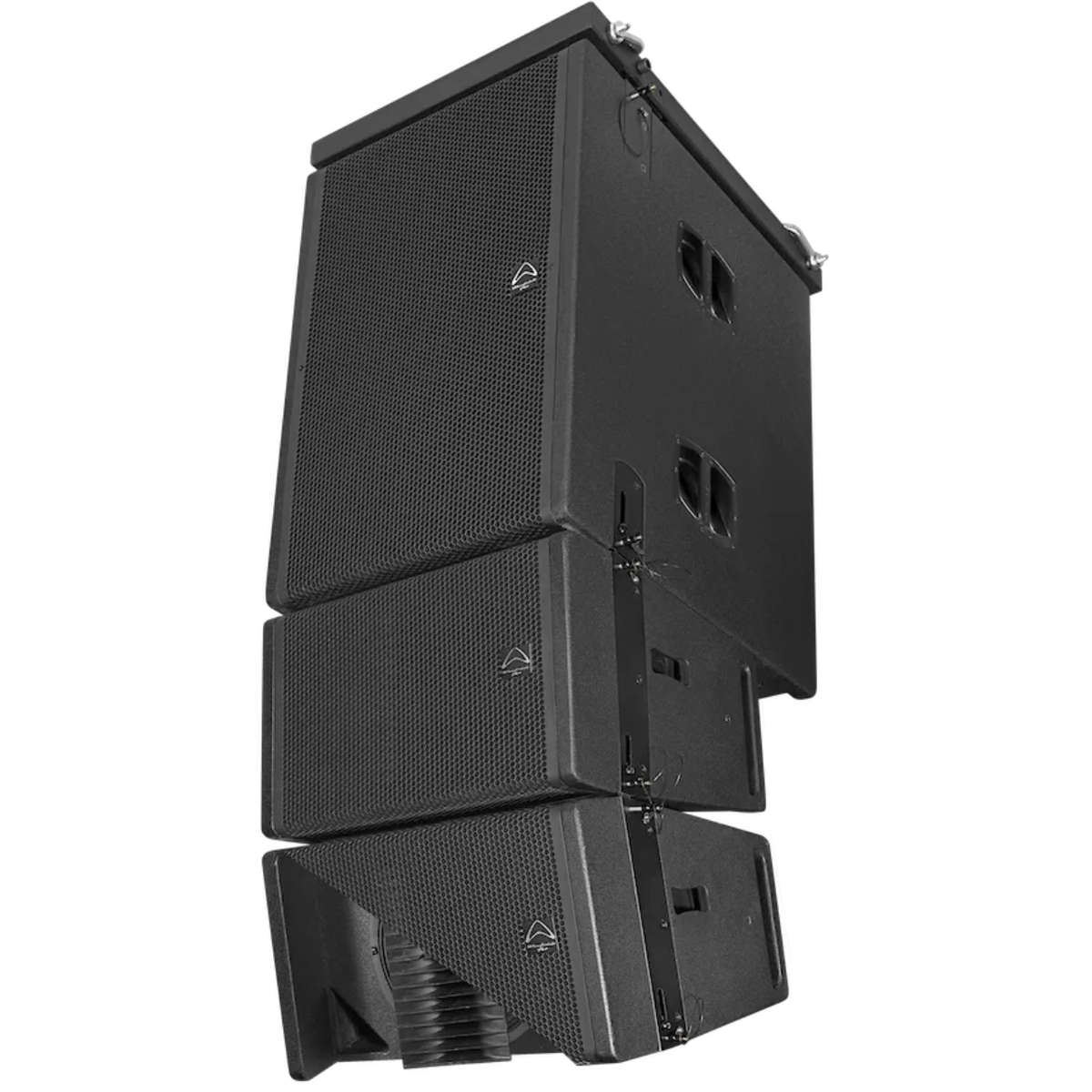

| System Typology | Hybrid Curvature Array | Hybrid Curvature Array | Subwoofer | Subwoofer |
| System Type | Active 12 coaxial Bi-Amplified | Active 15 coaxial Bi-Amplified | Active 18 Subwoofer | Active 21 Subwoofer |
| Configuration | two-way | two-way | Single Subwoofer | Single Subwoofer |
| Frequency Response (+/-3 dB) | 55 Hz — 20 KHz | 42 Hz — 20 KHz | 35 Hz — 125 Hz | 25 Hz — 100 Hz |
| Frequency Range (- 10 dB) | 35 Hz — 25 KHz | 25 Hz — 25 KHz | 28 Hz — 160 Hz | 18 Hz — 125 Hz |
| Sensitivity 2.83 V/1 m | 101 dB | 102 dB | 103 dB* | 103 dB* |
| Calculated Maximum SPL @ 1 m | 133 dB | 135 dB | 140 dB* | 140 dB* |
| System Peak SPL | 139 dB** | 141 dB** | 146 dB** | 146 dB** |
| * | | | level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset. |
| ** | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset. | level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated preset. |
| Waveguide Type | EVO-Fold® | EVO-Fold® | / | / |
| Nominal Coverage (H x V) | 100° x 20° | 100° x 20° | / | / |
| Signal Processing | DSP based, 8 FIR presets | DSP based, 8 FIR presets | DSP based,8 presets | DSP based,8 presets |
| Preset list | A) 1 to 2 SPKR 100 Hz HPF
B) 3 to 4 SPKR 100 Hz HPF
C) 5 to 6 SPKR 100 Hz HPF
D) 1 SPKR
E) 2 SPKR
F) 3 to 4 SPKR
G) 5 to 6 SPKR
H) CUSTOM | A) 1 to 2 SPKR 100 Hz HPF
B) 3 to 4 SPKR 100 Hz HPF
C) 5 to 6 SPKR 100 Hz HPF
D) 1 SPKR
E) 2 SPKR
F) 3 to 4 SPKR
G) 5 to 6 SPKR
H) CUSTOM | A) 1 SPKR 80 Hz LPF
B) 1 SPKR 100 Hz LPF
C) >2 SPKR 80 Hz LPF
D) >2 SPKR 100 Hz LPF
E) CARDIOID AUDIENCE
F) CARDIOID STAGE
G) CUSTOM
H) CUSTOM | A) 1 SPKR 80 Hz LPF
B) 1 SPKR 100 Hz LPF
C) >2 SPKR 80 Hz LPF
D) >2 SPKR 100 Hz LPF
E) CARDIOID AUDIENCE
F) CARDIOID STAGE
G) CUSTOM
H) CUSTOM |
| Amplifiers | | | | |
| Amplifier Design | Class D | Class D | Class D | Class D |
| Power Rating: | 1360 W Peak (1200 W LF +
160 W HF), 680 W Continuous
(600 W LF + 80 W HF) | 1660 W Peak (1500 W LF +
160 W HF), 830 W Continuous
(750 W LF + 80 W HF) | 4400 W Peak,
2200 W Continuous | 4400 W Peak,
2200 W Continuous |
| Thermal Protection | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage | 60% Nominal Line Voltage | 60% Nominal Line Voltage | 60% Nominal Line Voltage |
| Driver Protection | Independent LF/ HF RMS and Peak Limiters | Independent LF/ HF RMS and Peak Limiters | RMS, Peak Limiters and DC | RMS, Peak Limiters and DC |
| DC and Short Protection | Yes | Yes | Yes | Yes |
| Clip Limiter | Yes | Yes | Yes | Yes |
| Limiter Indicator | Red LED | Red LED | Red LED | Red LED |
| Signal Indicator | Green LED | Green LED |
