T-Sub-AX15B
Everyone loves BASS!
That is exactly why we have created the T-Sub-AX15B - our 700 W Continuous, 1400 W Peak 15" active subwoofer. The internal Class D amplifier delivers huge output power into the custom quad-layer 15" Wharfedale Pro LF driver to produce extreme subs and low end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint. You'll not only 'feel' the T-Sub-AX15B, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage "power" of the new T-Sub. T-Sub-AX15B is the perfect companion for a Typhon or a Titan active loudspeaker. It also has 75% more power than the current Titan Sub-A15 MKII.
Hold on to your socks! T-Sub-AX15B is going to blow them off!
Key Features:
700 watts Continuous
1400 watts Peak
129 dB Max SPL @ 1 meter
Birch plywood construction
Illuminated LED front logo badge
Convection cooled Class D amplifier
Adjustable low pass filter
3.0" voice coil
Quad layer driver design
35 mm pole socket & durable handles

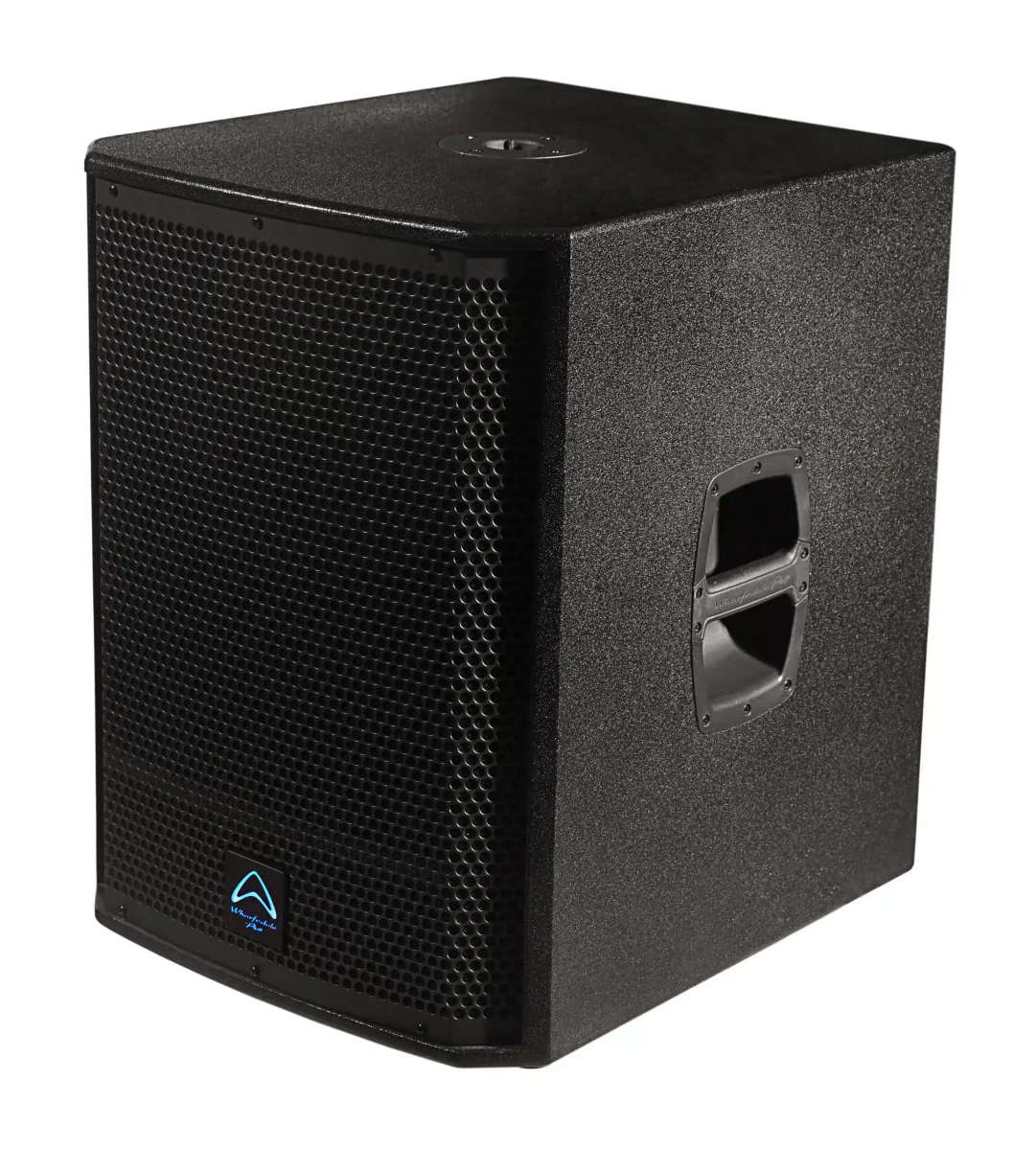

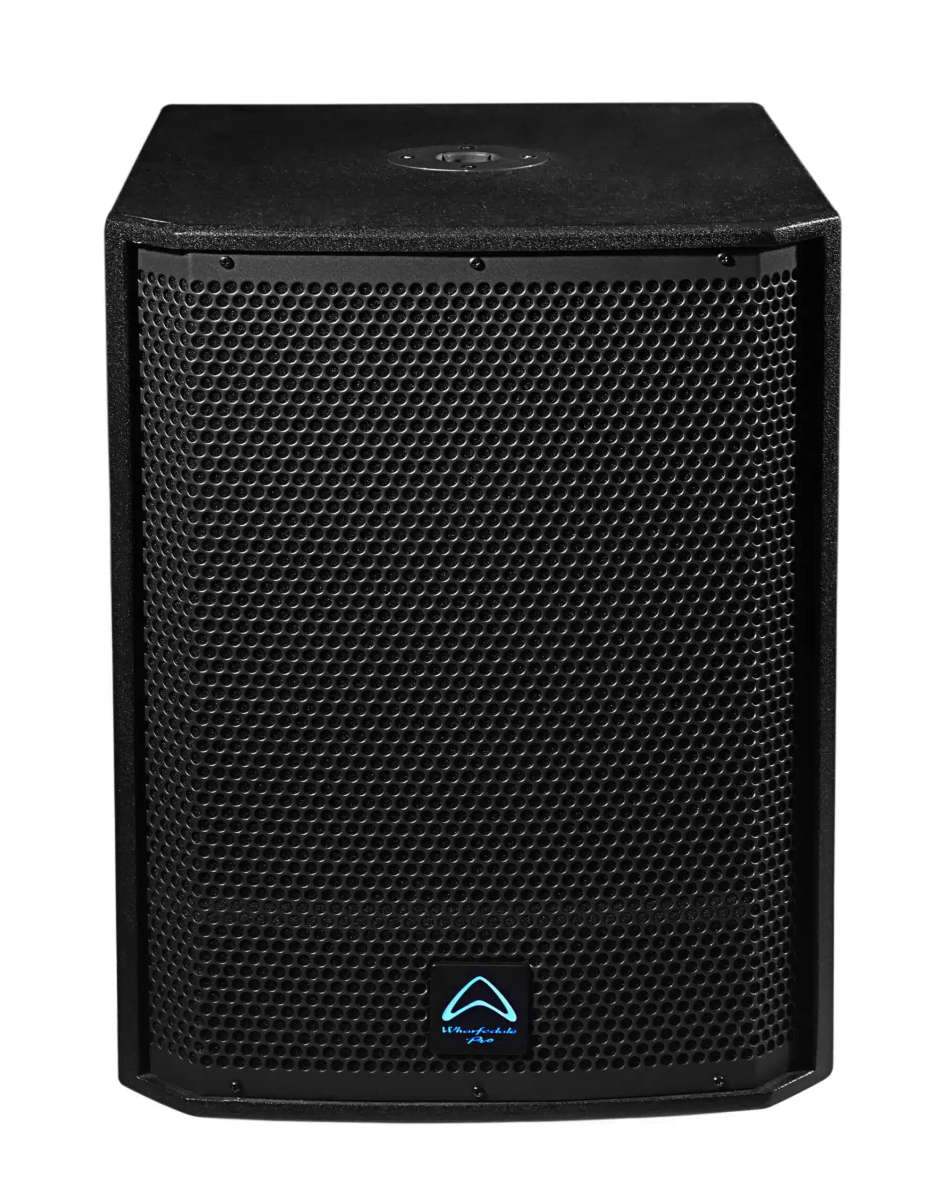

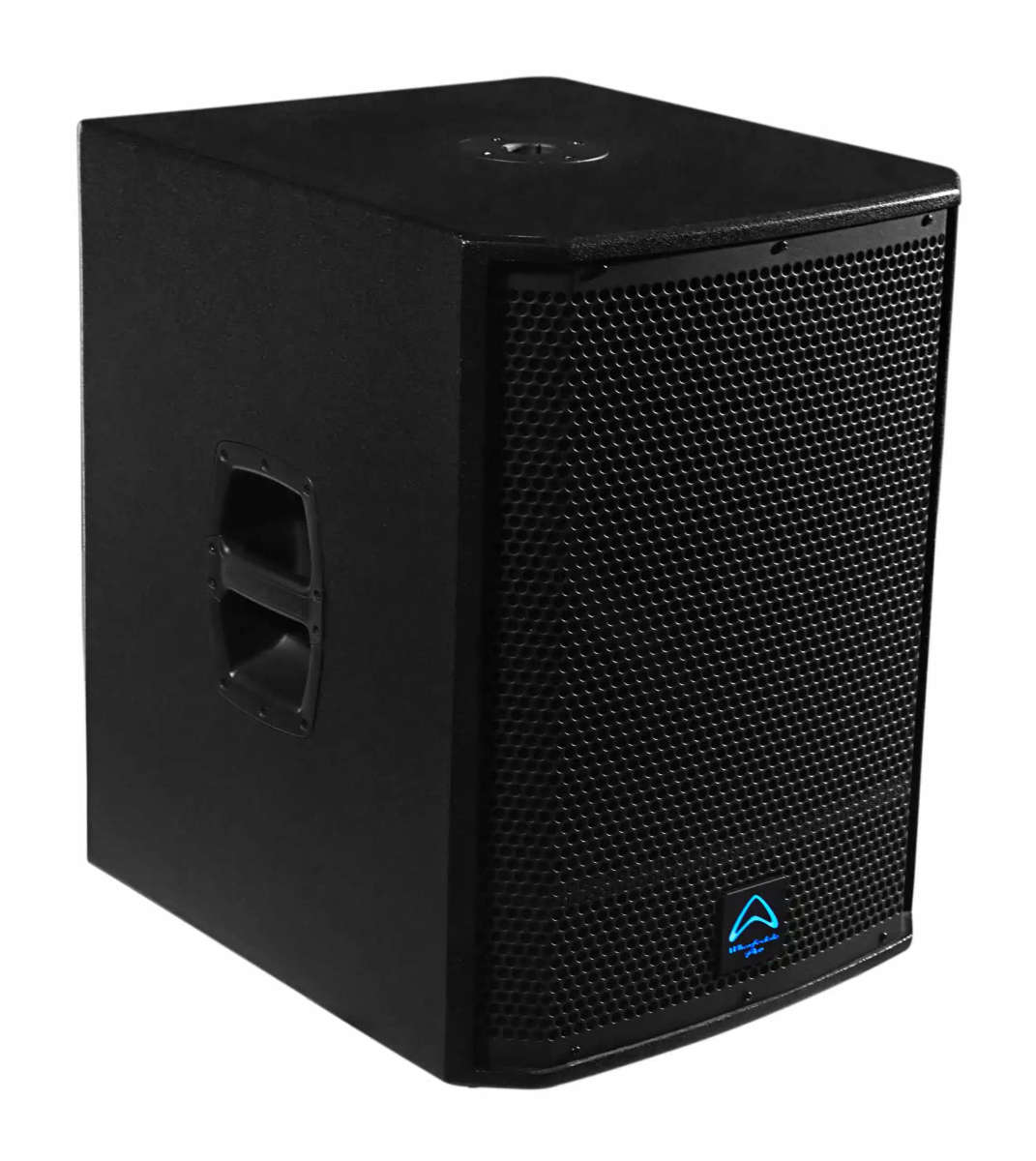

Around the Front
15mm plywood construction
Full face steel grille
15" Quad layer driver
3.0" voice coil
Illuminated LED front logo badge
Two practical and handy handles
35mm top pole socket
(and Rhino Rock durable finish)

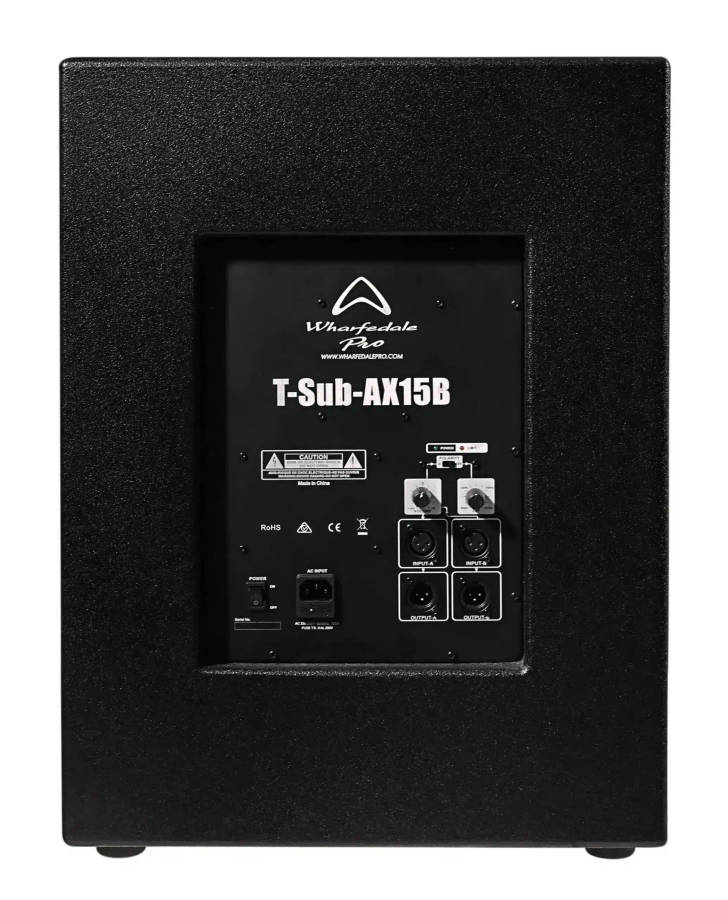

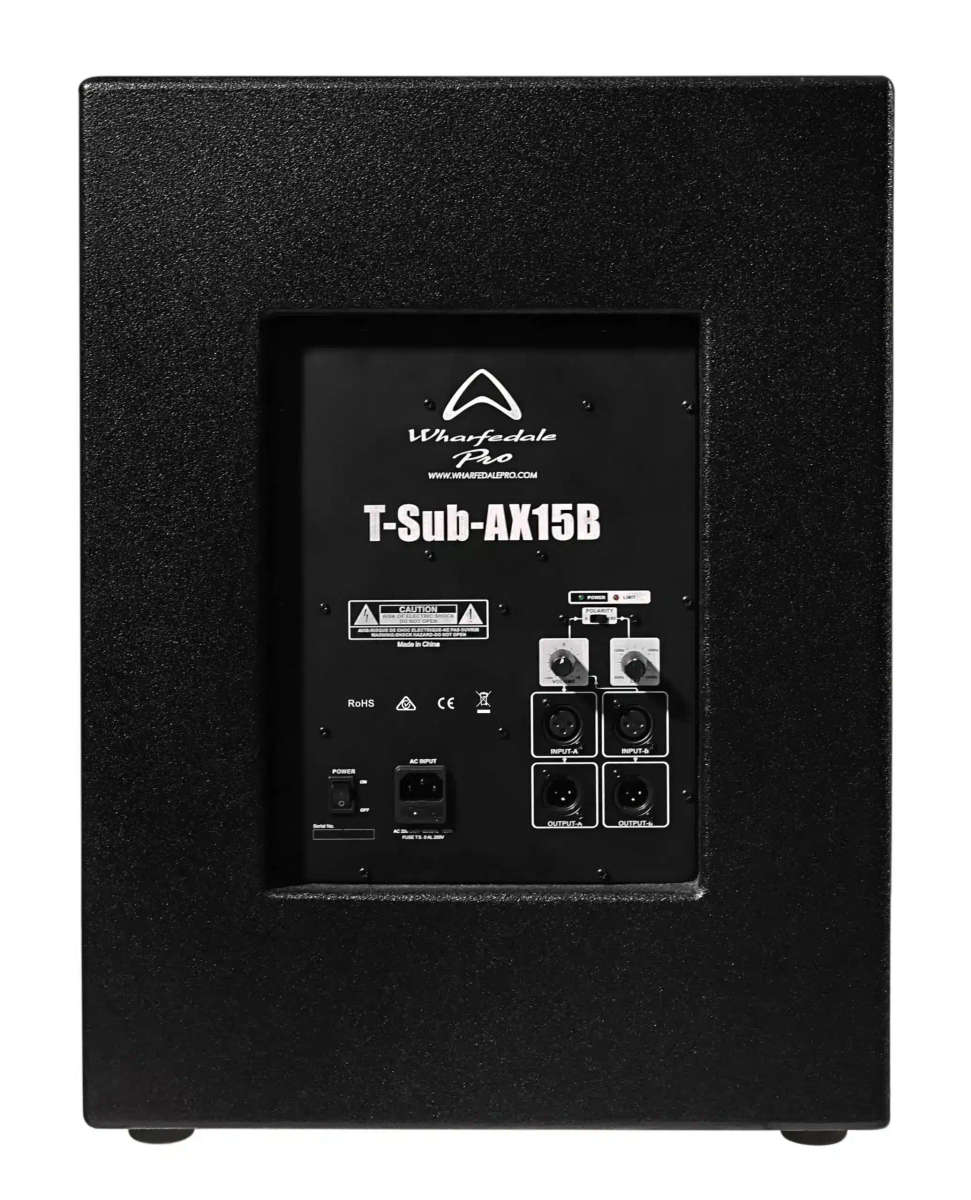

and around the back
Class D amplification with convection cooling
Comprehensive limiting protection
Polarity switching
Adjustable low pass filter
Balanced inputs
Balanced outputs
T-Sub-AX15B....destroying its competitor by +75%
Here at Wharfedale Pro, we are passionate about our products!
But there comes a time when we have to admit defeat!
Our original Titan Sub A15 MKII cannot stand up to T-Sub-AX15B !!! :-(
T-Sub-AX15B is +75% more powerful than our classic Titan Sub A15 MKII
Specifications
System TypeActive 15" Subwoofer
Frequency Response (+/-3dB)45Hz-200Hz
Sensitivity @ 1W / 1m)97dB
Maximum SPL (peak@1m)129dB
Low Frequency Transducer
Size (mm / inches)404mm / 15"
Coil Size (mm / inches)Quad layer 3.0"
Impedance4
Amplifier
Low-Frequency Power Amplifier (Class D)700w Continuous / 1400w Peak
Crossover FrequencyLPF 80-200Hz (adjustable)
Controls
Amplifier ProtectionYes
Power On ProtectionPower switch on / off mute
Thermal ProtectionAmplifier shutdown, auto reset
Driver ProtectionYes
DC ProtectionYes
Short ProtectionYes
Limiter IndicatorRed LED
Input typeBalanced
Input ConnectorFemale XLR
Input Impedance47K Balanced
Maximum Input Level5V
Input Sensitivity-10dB
Input ConnectorsFemale XLR
Line Output ConnectorMale XLR
Phase Switch Selection0° / 180°
AC Power details
Power SupplySMPS
AC Power Options100V-120V and 200V-240V
Power IndicatorGreen(back) / Blue logo(front)
Enclosure
Enclosure Material15mm Plywood
ColourBlack
Grille1.5mm steel
Pole Mount(Top)35mm
Dimensions (Unpacked):
Height591mm / 23.27"
Width454mm / 17.9"
Depth523.9mm / 20.63"
Dimensions (packed):
Height689mm / 27.1"
Width544mm / 21.4"
Depth610mm / 24.0"
Weight
Net Weight (kg / lbs)25.7kg / 56.5lbs
Gross Weight (kg / lbs)29.5kg / 64.9lbs
Warranty: 1 Year Manufacturer's Warranty
Dimensions: 54 x 61 x 70 cm
Weight: 30kg
