Specifications:

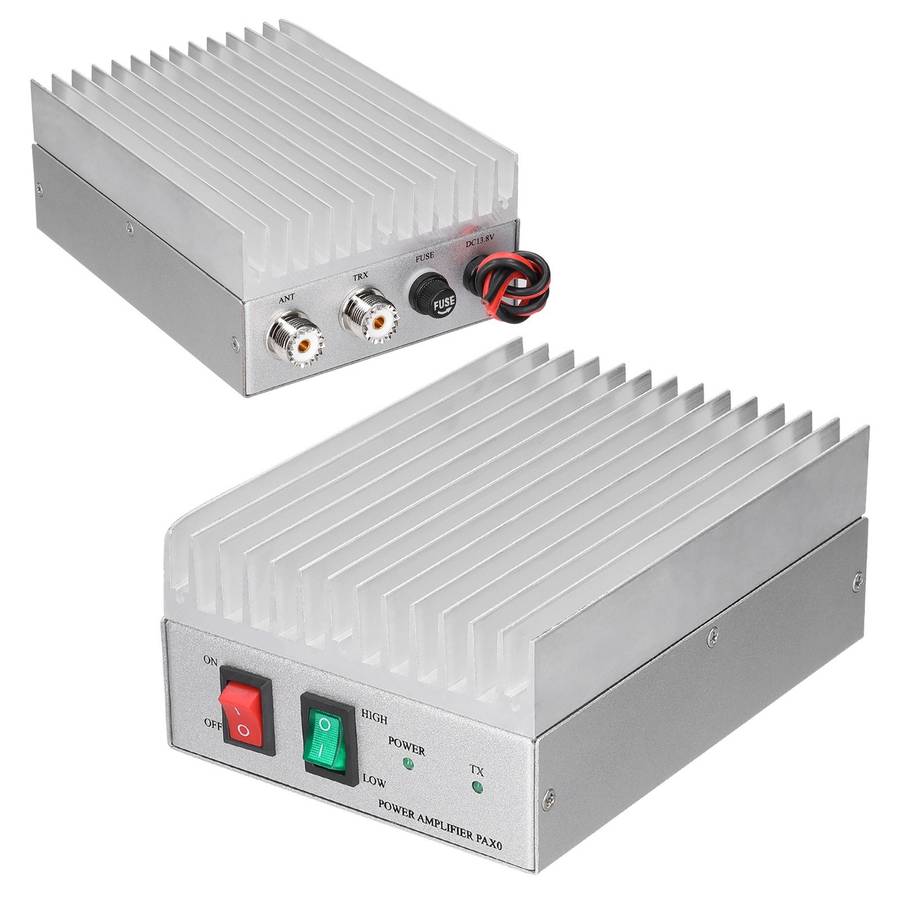

Name: Power Amplifier
Material: Metal
Input Power: 0.1-3W
Transmission Frequency: 400-470MHz
Working Mode: Half duplex automatic transmission and reception conversion (unable to receive in transmitting state)
Receiving Loss: 1dB
Output Power: Two levels, 30W/15W
Supplying Voltage: 13.8V
Working Current: 6A
Item Size: 170 × 114 × 66mm (6.69 × 4.49 × 2.60in)
Item Weight: 908g (2.00lb)
Package Size: 210 × 105 × 140mm (8.27 × 4.13 × 5.51in)
Package Weight: 1007g (2.22lb)
Features:

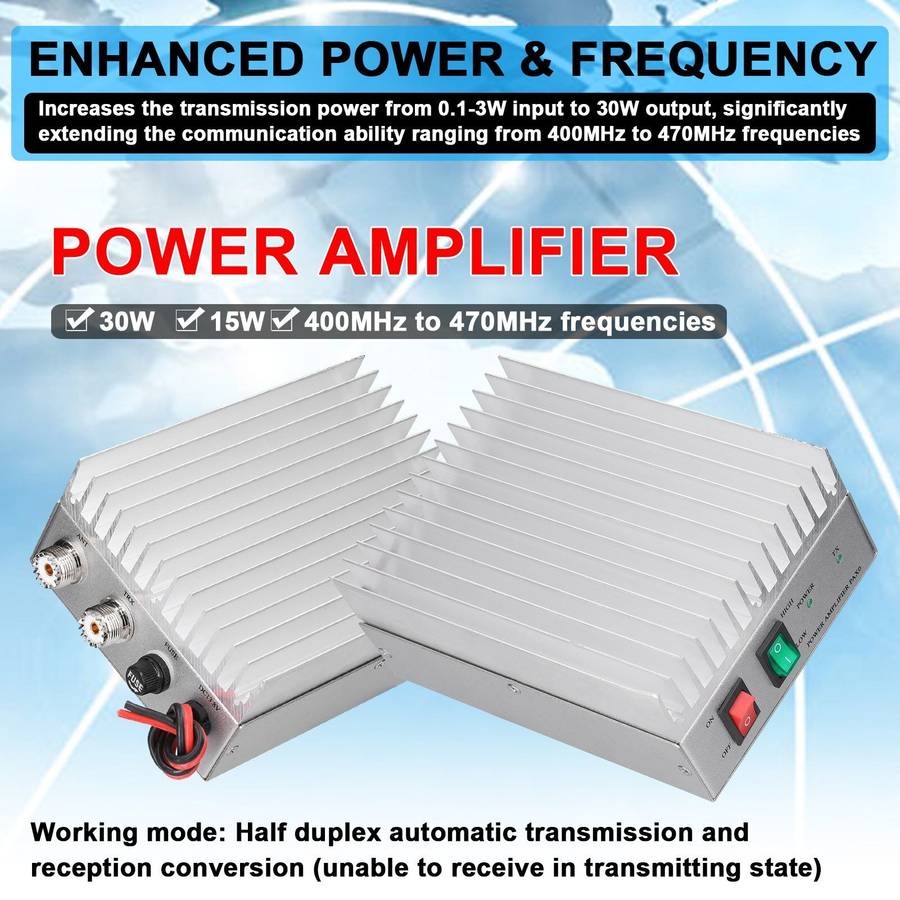

Enhanced Power & Frequency: Boosts transmission from 0.1-3W input to 30W output, extending communication range across 400-470MHz frequencies.
Two Power Levels for Flexibility: Adjustable output power of 30W and 15W to suit different operational requirements effectively.
Efficient Half-Duplex Operation: Automatic switching between transmit and receive modes for seamless half-duplex communication.
Low Reception Loss: Ensures clear and reliable communication with minimal signal degradation due to low reception loss of 1dB.
Compact and Reliable Design: Operates on a stable 13.8V power supply with a 6A consumption, suitable for diverse environments. Includes an inbuilt fuse for enhanced safety.
Package Included:
1 x Power Amplifier
