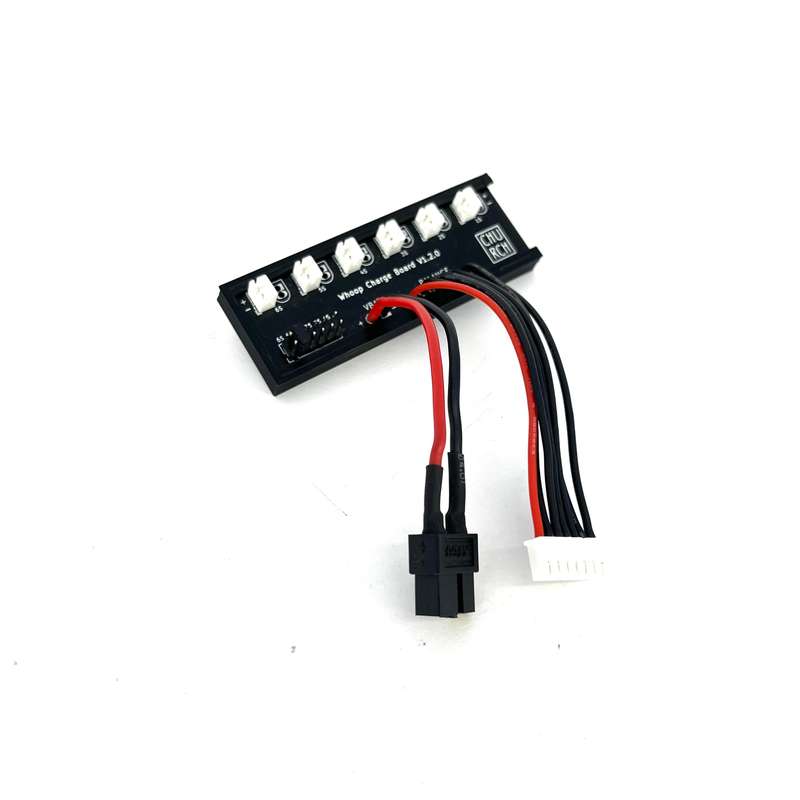

Whoop Charging Board V1.2.0

Tired of the inconsistent charging of your whoop batteries with "dumb" USB chargers? Or returning to puffed and useless batteries after months of ripping your 5"? This is the product for you! Harness the power of your smart LiPo charger to properly care for your 1s whoop batteries, allowing you to rip no matter the weather!

Inspired by Fractal Engineering but designed and built by SnitchFPV, the Whoop Charge Board allows you to use your standard or smart LiPo charger with a 6s balance port to charge, discharge or storage charge your 1s whoop batteries. The board accommodates 1 to 6 individual batteries by using a jumper to select the correct amount. PH 2.0 connectors come as default but there is space to solder on BT 2.0 connectors as well.

How to use:

1. Plug the board into your LiPo power and balance plugs [as you would a normal 6s LiPo pack]

2. Select the number of batteries using the on-board jumper.

3. Populate the battery connectors starting at 1s.

4. Then use any safe chemistry [i.e LiPo or LiHV] for the batteries as well as your desired charge cycle.

It is as easy as charging a normal battery!

NOTE: CONNECTING THE JUMPER BETWEEN TWO CELL SELECTION OPTIONS WILL SHORT A BATTERY.

Includes:

1 x Whoop Charging Board and Jumper

1 x Female XT60

1 x Spare jumper
