WI-FI Range Extender

About Item:

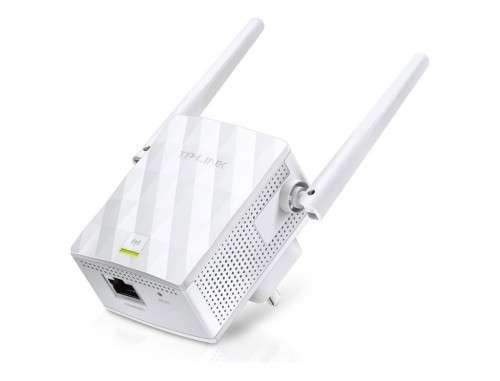

TL-WA855RE
300Mbps Wi-Fi Range Extender

Boosts your existing Wi-Fi coverage to deliver fast and reliablewired and wireless connectivity
External antennas for faster and more reliable Wi-Fi
Supports AP mode which creates a new Wi-Fi Access point
Easily expand wireless coverage at a push of the Range Extender button
Set the Power Schedule for the range extender for power-saving
Works with Any Wi-Fi Router

Specifications
Hardware Features
Plug Type : EU, UK, US
Interface : 1 * 10/100M Ethernet Port (RJ45)
Button : WPS Button, Reset Button
Power Consumption : 3.6W
Dimensions ( W x D x H ) : 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm)
Antenna : 2 x external

Wireless Features
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 2.4~2.4835GHz

Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)

Reception Sensitivity
270M: 130M: 108M: 54M: 11M: 6M: 1M:

Transmit Power : < 20 dBm (EIRP)
Wireless Modes : Range Extender/Access Point
Wireless Functions : Wireless MAC Address Filtering, Domain Login Function,Transmit Power Control
Wireless Security : 64/128/152-bit WEP, WPA-PSK / WPA2-PSK

Others
Certification : CE, RoHS
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7,8, 8.1, 10, Mac OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box

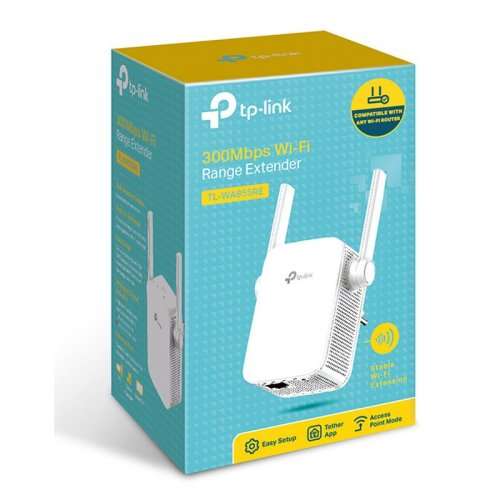

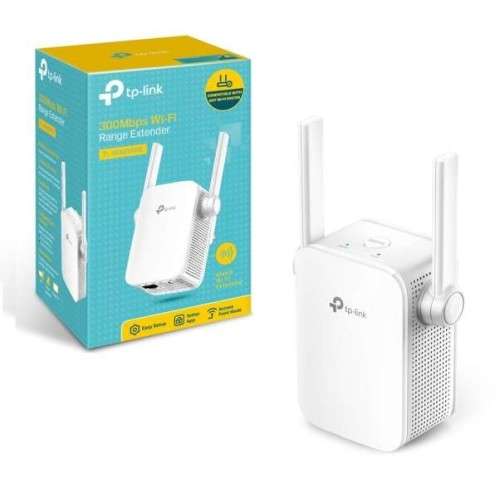

300Mbps Wi-Fi Range Extender TL-WA855RE
RJ-45 Ethernet Cable
Quick Installation Guide
