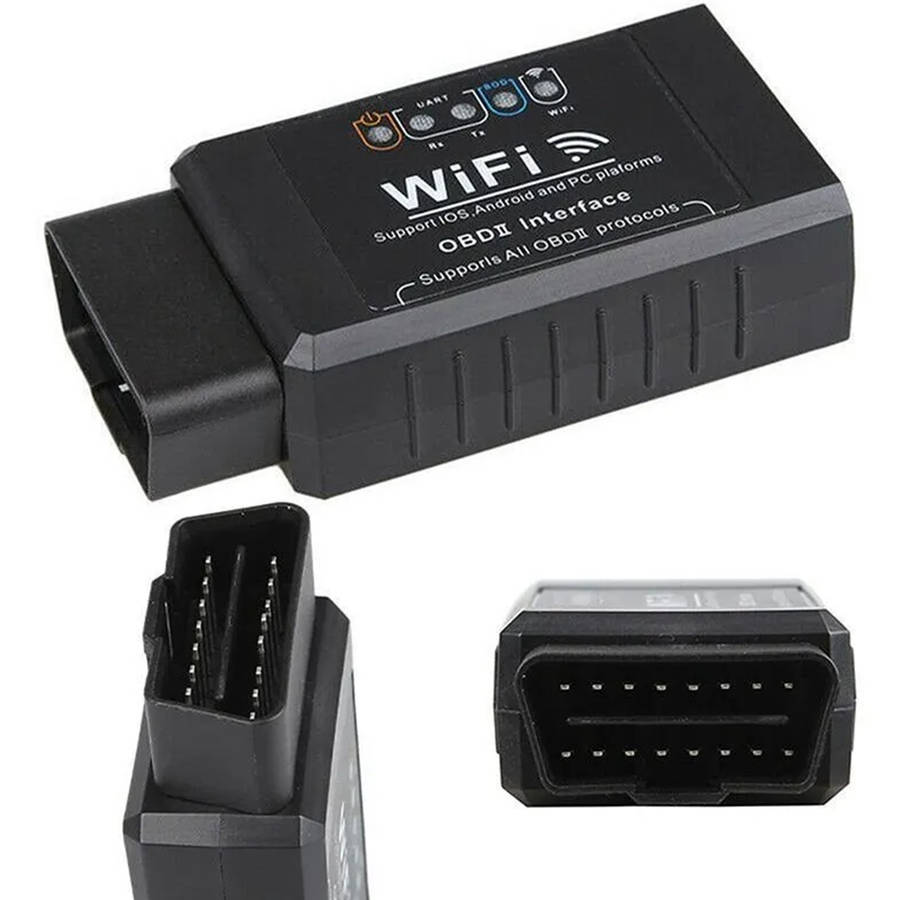

WIFI OBD2 Car Diagnostic Instrument OBDII Scan Tool for iOS Android
Please click on the link below for the OBD2 Bluetooth Car Diagnostic Scanner Version:
https://www.bobshop.co.za/bluetooth-advanced-v1-5-obd2-diagnostic-scanner/p/629644533
Product Details:
Car troubleshooting and diagnostic equipment,
Check the car engine with OBDII port, WIFI protocol.
I believe that many times, when the beloved car suddenly lights up the fault light,
drivers will fall into a sad and impatient situation.
When I haven't had time to go to the garage,
but I still need to know what the current problem of the car is before arriving at the garage.
Is it serious or minor, and whether it can continue to run, what should I do?
This problem can be solved quickly and thoroughly through the OBD2 port error checking device we introduce here.
With a small cost, you can always know the current parameters of the vehicle and check and delete errors
(with minor errors) without going to any garage or repair shop.

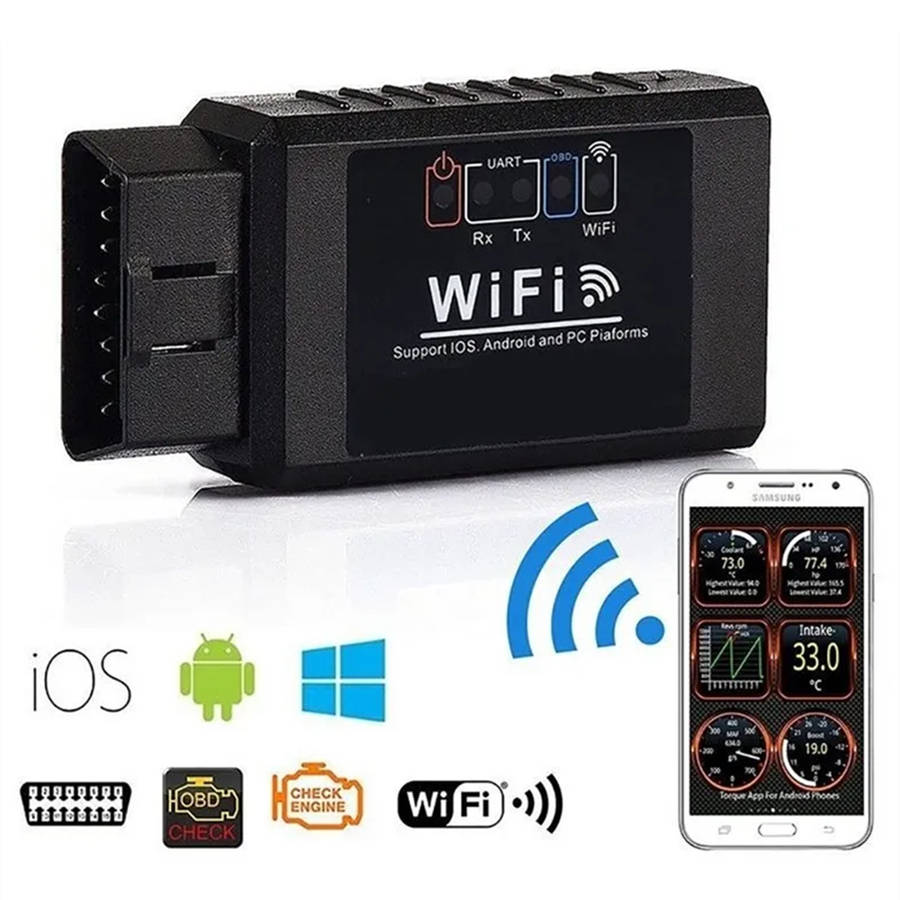

Just plug the device into the OBD2 port under the steering wheel,
connect to the mobile phone via wifi.
Get diagnostic error codes, including general error codes and specific error codes for each manufacturer.
And display the meaning of the error code on the screen
(The database contains more than 3000 common OBDII error codes)
Display the current data of the sensor, such as:
-Engine speed
-Load value (calculated value)
-Engine coolant temperature
-Fuel system status
-Vehicle speed
-Fuel injection time
-Intake pressure
-Early ignition angle
-Intake temperature
-Intake flow, oxygen sensor
-Throttle position
-Fuel pressure
All OBD2 Protocols Supported:
1) ISO9141-2 (5 baud init,10.4Kbaud)
2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
4) ISO15765-4 CAN (11bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11bit ID, 250 Kbaud)
7) ISO15765-4 CAN (29bit ID, 250 Kbaud)
-SAE J1939 CAN (29bit ID, 250*Kbaud)
-USER1 CAN (11*bit ID, 125*Kbaud)
-USER2 CAN (11*bit ID, 50*kbaud)
Functions:
1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
Specifications:
Port: 35000
Range: 50 ft (Line of sight)
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 degree
Material: plastic
Size: 65x30mm
Color:black
Package included:
1 x OBD2 Diagnostic Scanner
