WIFI Control Smart Life Tuya 2CH Door Opener Relay Module
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
**In Stock**
Welcome to Smart Home Automation.

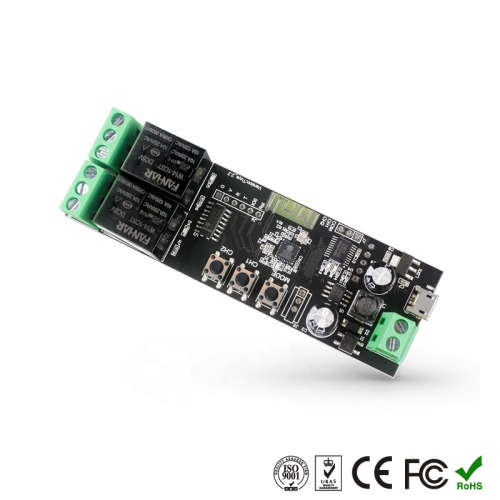

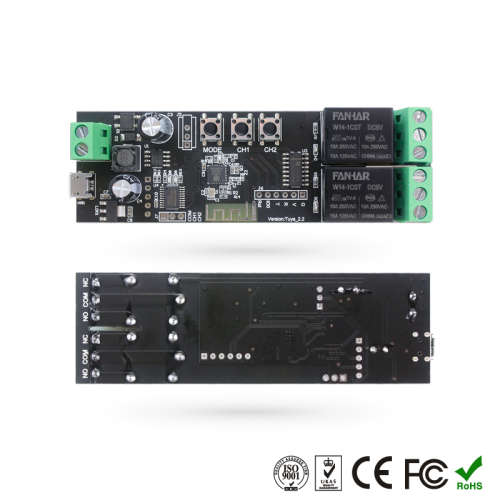

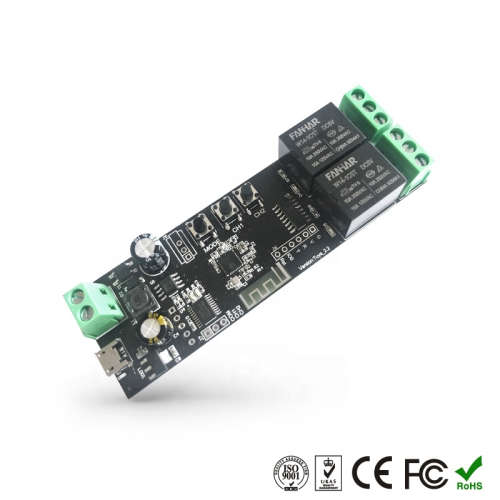

The newly designed 2CH Door Opener Relay Module.
Our Door Opener Relay Module is best for connecting to your existing Gate Motor to Open/ Close or Turn Lights or Appliances ON/ OFF. Control your device from anywhere in the world.
All you need is Our Smart Home Devices, WiFI with constant Internet and Electricity to power the Device and your Lights. Some of Our Devices are Battery Powered so you don't have to worry about messy cables or the need to run cables.
Pair up with other Smart home Devices to create the below scenario's;
Pair up with our WiFi Touch Switches to Open/ Close your Gate motor.
Features;
Inching Mode (Momentary) - Once you press the Manual switch or control from the app, the relay will activate for 0.5-60 seconds (time adjustable on the app) then release automatically. You can use it to control the Gate, Door opener, Computer, Elevator, Remote controller key, or any Momentary buttons.
Self-lock Mode - Once you press the Manual switch or control from the app, the relay will activate to keep ON or OFF normally. You can use it to control the Light, Fan, Humidifier, or other home appliances within AC 0-250V 10A / DC 0-30V 10A.
Inter-Lock Mode - Once you press the Manual switch or control from the app, the relay activates, but other relays will release automatically. You can use it to control the Motor, Curtains, or others.
DC Input - If your equipment is powered by DC7-32V, then you can power up the board with the same power source. Please make sure the input current is enough.
Set a schedule or a Countdown Timer of when your Device should be turned ON/ OFF.
Switching mode via Tuya/ Smart Life Mobile phone App.
Supports Voice Control and Works with Amazon Alexa, Google Home, and IFTTT.
Get alerted via Notification on your Mobile Smartphone within seconds.
Specifications;
Electrical Voltage: DC7-32V or 5V Micro USB Port.
Relay Opening time: 0.7 seconds
Relay Load: 250V/ 10A Max.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Panel Material: Circuit Board.
Operation Temperature: 10°C to +60°C.
Humidity 5%--95% non-condensing.
Dimensions: 110 x 38 x 27mm.
Weight: 0.05kg.
What's in the Package;
1 x 2CH Door Opener Relay Module.
1 x User Manual
*Please note the power input is only for the PCB Powering. The relays are Dry-contact switches without voltage output.*
