Features

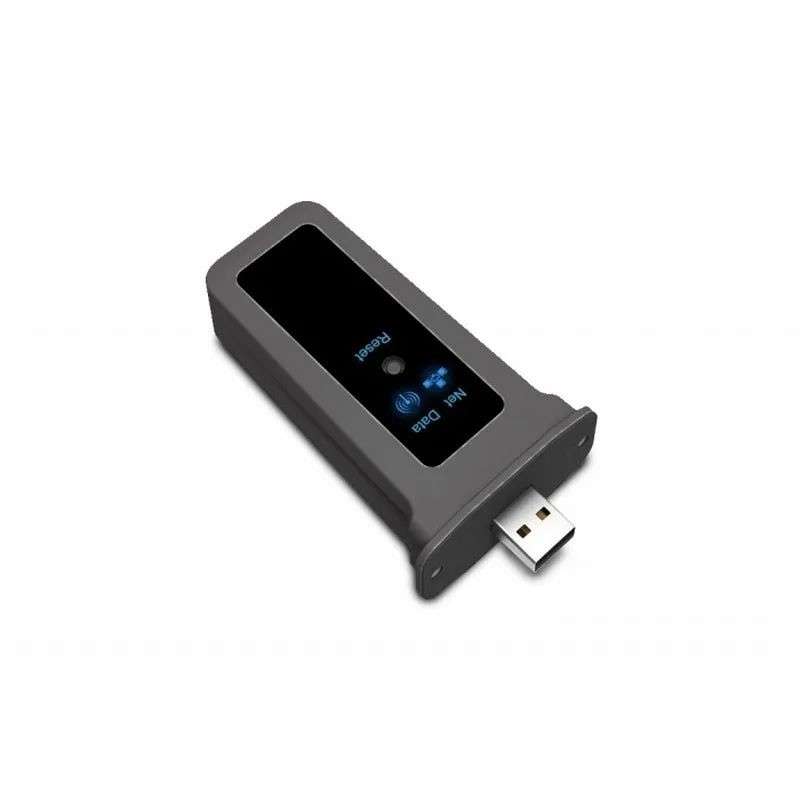

- The WIFI PLUG14 dongle for MUST inverters can enable wireless communication between off-grid inverters and monitoring platform
- In addition, users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with WatchPower APP
- Available for both iOS and Android based device
- All data loggers and parameters are saved in iCloud
Specifications
- Maximum Current: 500 mA (5V)
- Input Voltage Range: DC 5V ~ DC 28 V
- Interface: USB-A
- Remote Communication: Wi-Fi
- Baud Rate: 9600 bps
- Data Collection Period: 1.5 s
- Operating Frequency: 2.412 ~ 2.484 GHz
- Communication Protocol: IEEE 802.11b/g/n
- Maximum Transfer Rate: 72 Mbps
- Signal Range: 100 m range without obstruction
- Parameter Settings: Web Server / Application / Remote Server
- Firmware Update: Remote web server
- Application Layer Protocol: Modbus-RTU
- Connection Functions: Mobile app monitoring, Parameter configuration
- Dimensions: 54 × 99 (109 incl. plug) × 28 mm (W × H × D)
- Weight: 40 g
- Storage Temperature: -40°C ~ 90°C
- Guaranteed compatibility: MUST PV1800 series
