WiFi OBD Multi-scan Auto Car Diagnostic Scan Tool

OUT OF STOCK - ETA 29th JULY - PREORDERS WELCOME

LIST OF COMPATIBLE VEHICLES

Overview

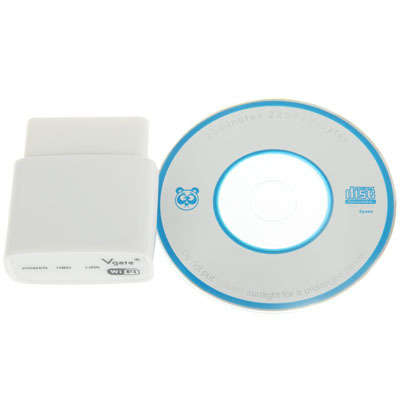

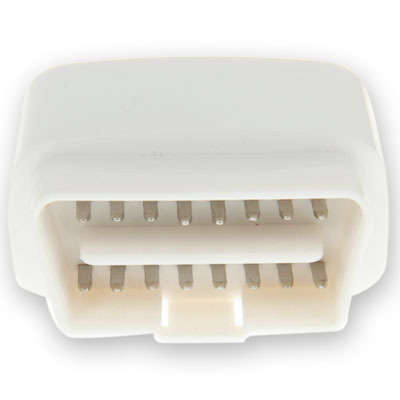

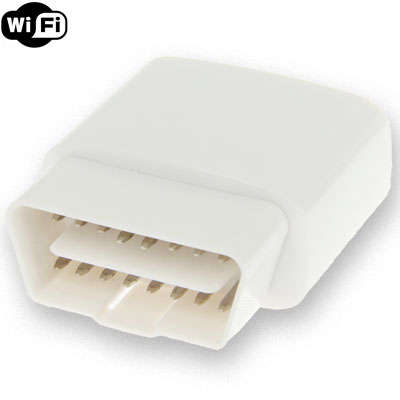

OBD ii Car diagnostic tool is a handheld adapter for car, it is wireless and with WIFI link, it is compact, easy for storage, carrying and shipping cost saving. It is with an on/off switch on the bottom and easy for operation.

Features:

1,Switch power-saving mode

2, High speed Read data

3, Real J1939 protocol for heavy-duty vehicle

4,Works with all OBD-II compliant vehicles

5,Wireless (WIFI) around 30 meters

6,Software included for Palm, PDA, Mobile, Windows PC, Windows Smart phone

Supports OBD-II protocols:

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

Functions of the auto scanner:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

-Engine RPM

-Calculated Load Value

-Coolant Temperature

-Fuel System Status

-Vehicle Speed

-Short Term Fuel Trim

-Long Term Fuel Trim

-Intake Manifold Pressure

-Timing Advance

-Intake Air Temperature

-Air Flow Rate

-Absolute Throttle Position

-Oxygen sensor voltages/associated short term fuel trims

-Fuel System status

-Fuel Pressure

-Many others...

Type of Packing: Color Box
