Product features:
1080P/960P/720P wireless network hard disk recorder;

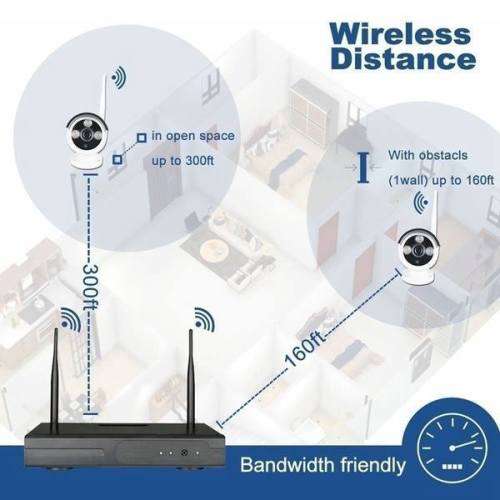

Built-in security special wireless WIFI module,
signal stability and anti-interference ability are strong.

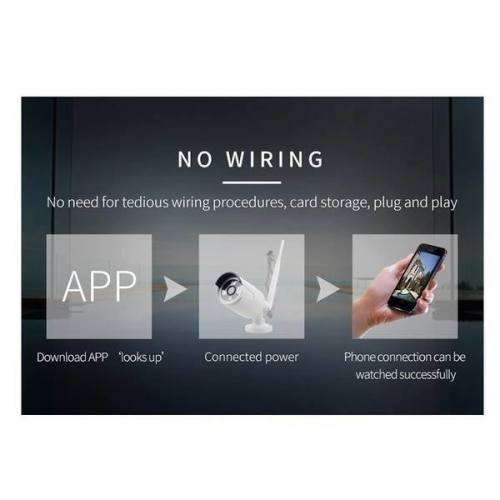

Without the need for WIFI pairing, the picture is out of the box.
Wired wireless mixed-use, adapt to all kinds of scenes;
P2P is easy to see a cloud, and it's stable and smooth.
It supports a variety of alarm triggers (video loss / mobile detection, etc.) and alarm output (voice /E-Mail/FTP, etc.).
Support Android/Apple mobile (or flat panel) remote (LAN and Internet) access and control.
This set does not contain monitors and hard disks.

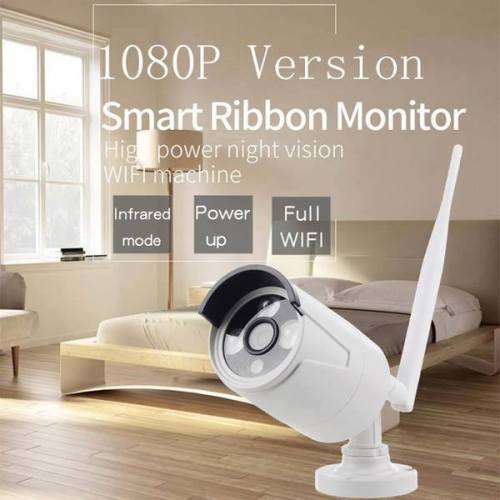

The camera lens is 3.6mm by default. If there is a request, please note it again.

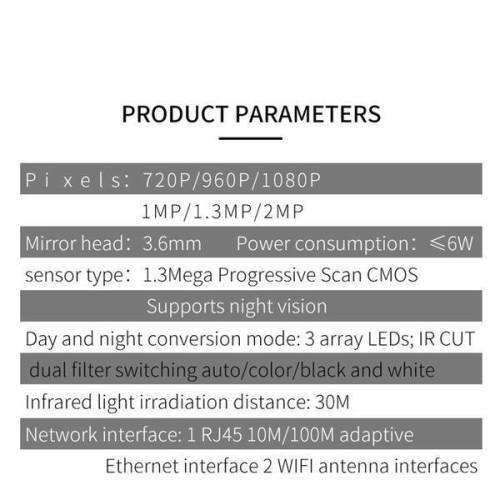

Product parameters: Surveillance camera Sensor type 1/4 "CMOS" Image size 1280*720/720*480/640*480/320*240 Minimum illuminance 0.3Lux (50IRE@F1.2) /IR 0Lux Frame rate of 30 frames/seconds
Support protocol TCP/IP, HTTP, DHCP, DNS, RTP/RTSP, PPPoE FTP, SMTP, NTP
Interface protocol ONVIF, PSIA,
Mobile phone access to P2P, support Andriod, iPhone, and other mobile phones
The security mechanism is 64/128WEP encryption, WPA-PSK/WPA2-PSK, and WPA/WPA2.
Wireless protocol IEEE802.11b, IEEE802.11g, IEEE802.11n
Digital Video Recorder Each channel can be set with two bitstreams
The video standard is 30 frames / sec /960P/ (1280 x 960) /720P (1280 x 720) 30 frames / sec.
The image quality is monitored by 1080P (1920 x 1080) / 960P/ (1280 x 960) /720P (1280 * 720). Image dynamic detection, each screen can detect multiple detection areas, and can set 6 level sensitivity (IPC support).
Image playback quality, arbitrary 4 way 1080P/720P synchronous playback.
Video mode supports manual, automatic, dynamic monitoring, alarm triggering video mode.
The backup mode supports a hard disk, U disk, USB mobile hard disk, USB burn, network storage, and backup.
Operation mode mouse Local login username and password
Video save local hard disk, network

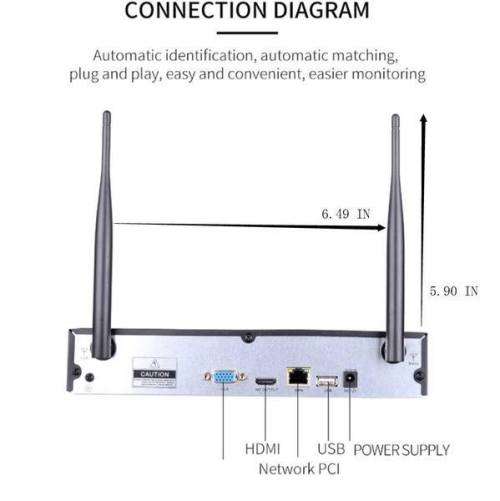

Video input 4 * (1280*960)
IP network camera Audio input
1 channel network audio input Video output
1 road VGA+1 road HDMI Audio output
1 RCA output Network interface,
1 RJ45,10M/100M adaptive Ethernet ports.
The USB interface has 3 USB 2 interfaces (1 front panel and 2 rear panels).
Wireless interface WIFI (IEEE802.11b, IEEE802.11g, IEEE802.11n).
Hard disk interface 1 SATA hard disk interface
The maximum capacity of each interface is to support the hard disk with the largest capacity of 4TB. Smartphone monitor support iPhone (Android) system smartphone.

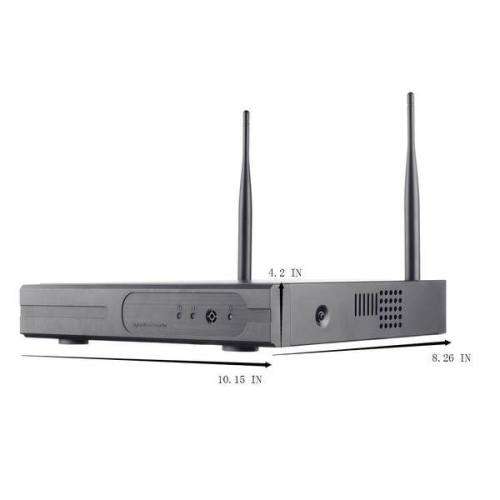

Power 12V2.6A The power consumption is less than 25W Working temperature of -10 DEG C 55 Working humidity 10%-90% Size machine: 260mm x 240mm x 43mm,

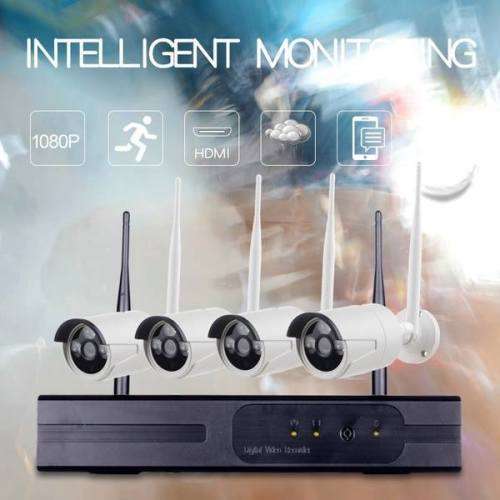

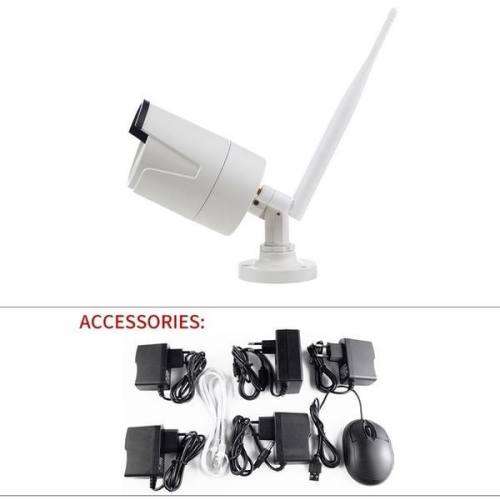

Package product configuration: Name size and quantity Wireless NVR (including 2A power adapter) 4 road 1080P
Wireless camera 720p/960P/1080P 4 Net 1.5 meters 1 Power 1.5A 4
