WinAPEX ET8909 Digital Multimeter Voltage Test Pen Capacitance Meter Diode NVC Tester

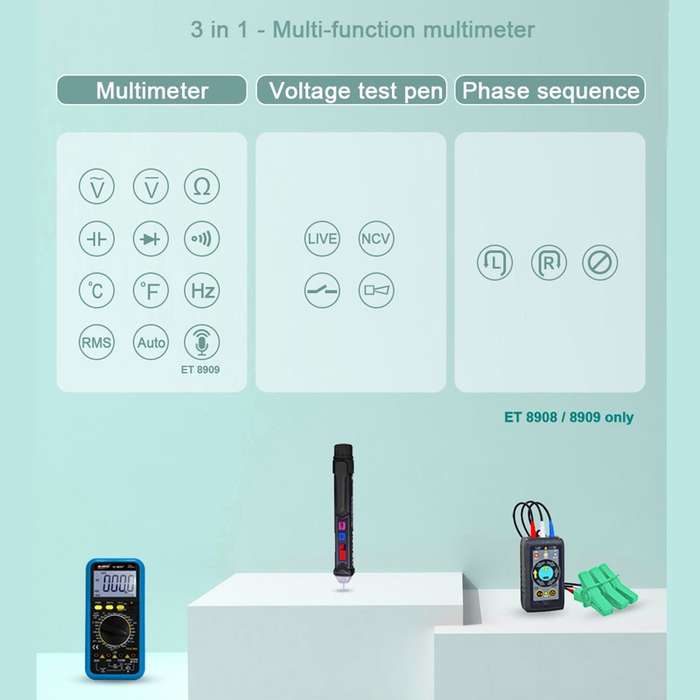

1. 3-in-1 multi-function multimeter, integrated digital multimeter/voltage tester/phase sequence (phase sequence function only ET8908/ET8909)

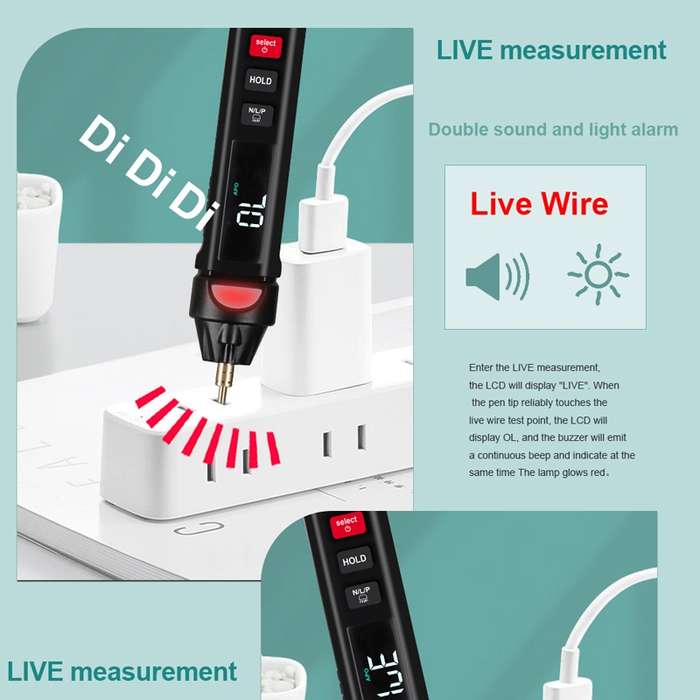

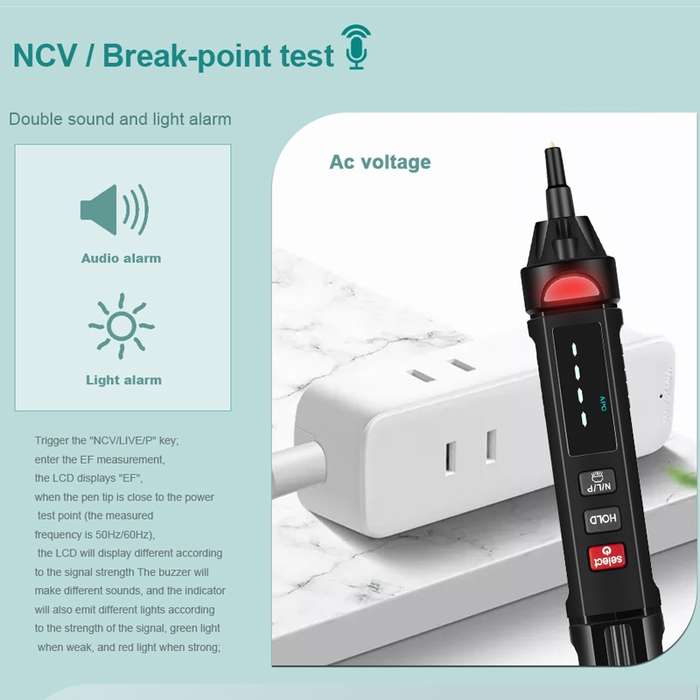

2. Accurately measure non-contact voltage test, AC/DC voltage, current, resistance, continuity, frequency (ET8908 only), capacitance, diode, temperature, wire continuity, battery test.
3. Sensitive and accurate test: according to different input voltage/resistance/, the meter will automatically identify and measure. The machine has stable performance, high precision, high reliability, clear reading and overload protection.
4. Easy to use, with digital LCD display and backlight design, it can clearly display readings in dim ambient areas. (LCD display only ET8908/ET8909)
5. Flashlight design, no fear of dark environment

Specification:

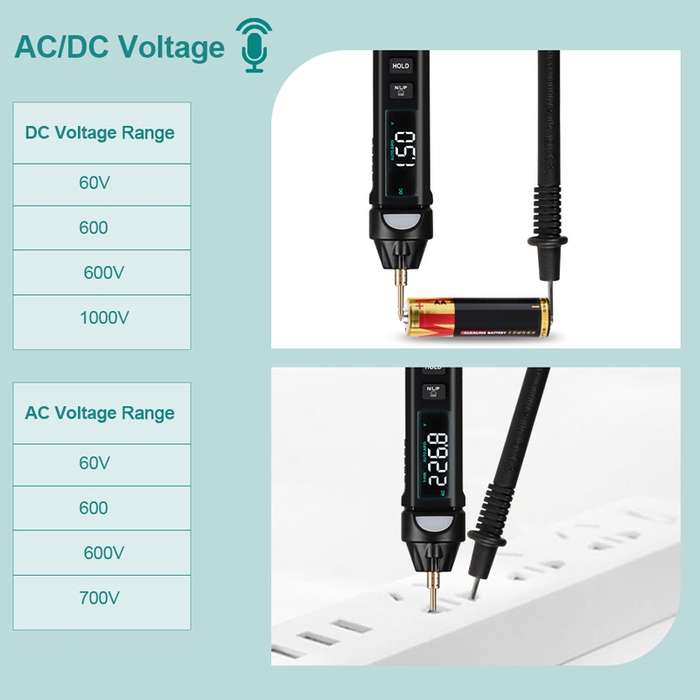

1. DC voltage: 0.8-1000V
2. AC voltage: 0.8-700V
3. Resistance: 0.1-60Mￎﾩ
4. Capacitance: 10nF - 60mF
5. Frequency: 1Hz-10MHz
6. Temperature: - 20-50 degrees Celsius/0-122 degrees Fahrenheit
7. Diode: 3.0V
8. Buzzer: 0.1-50ￎﾩ
9. Power supply: 1.5V 1 x AAA (not included, bring your own)
10. Low voltage reminder: Yes
11. Automatic shutdown: Yes
12. Backlight: Yes
13. Save data: yes
14. Shell material: ABS
15. Dimensions: about 171 x 21 x 21mm/6.73x0.82x0.82inch

Model:
ET8906
-Screen: Ordinary LCD screen
-Multimeter: yes
-Voltage test pen: yes
-Phase sequence table: no
-Voice broadcast: no
-Frequency test: no
ET8908
-Screen: color screen
-Multimeter: yes
-Voltage test pen: yes
-Phase sequence table: Yes
-Voice broadcast: no
-Frequency test: yes
ET8909
-Screen: color screen
-Multimeter: yes
-Voltage test pen: yes
-Phase sequence table: Yes
-Voice broadcast: Yes
-Frequency test: no
