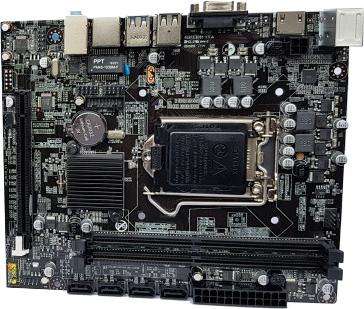

H110 MOTHERBOARD - H110D4
Processors: Intel Core i7/Core i5/Core i3/Pentium / Celeron Processors, Supports Intel 6th, 7th, 8th
And 9th Generation (CPU up to 95 watts)
Supports: Intel 14 nm CPU
Chipset : Intel H110
On-Board graphics: Integrated Graphics Processor-Intel HD Graphics support
Memory Support: Dual Channel DDR4 2133MHz Memory up to 32GB
Dimm: 2 x Memory Slots (Max. up to 16GB each)
LAN: On board Realtek RTL8105E 10/100/1000 Mbps adaptive network card interface
Audio: Chip integrated by Realtek 661 on board, Supports 6-channel audio-out
Slot: 1 x PCI Express x16 Slot
SATA: 4 x SATA port
Internal I/O Ports: 1 x 24-pin ATX Power Connetor
1 x USB 3.0 pin header supports additional 2 USB 3.0 ports
2 x USB 2.0 pin header supports additional 4 USB 2.0 ports
1 x Front panel audio connector
1 x System Panel connector
1 x USB 2.0 keyboard port
1 x USB 2.0 mouse port
Back I/O Ports: 1 x VGA
1 x HDMI
2 x USB 2.0
2 x USB 3.0
1 x LAN jack
3 x Audio jack
BIOS: AMI BIOS
Form Factor: Micro ATX 190 x 170 mm
Accessories: 1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable
