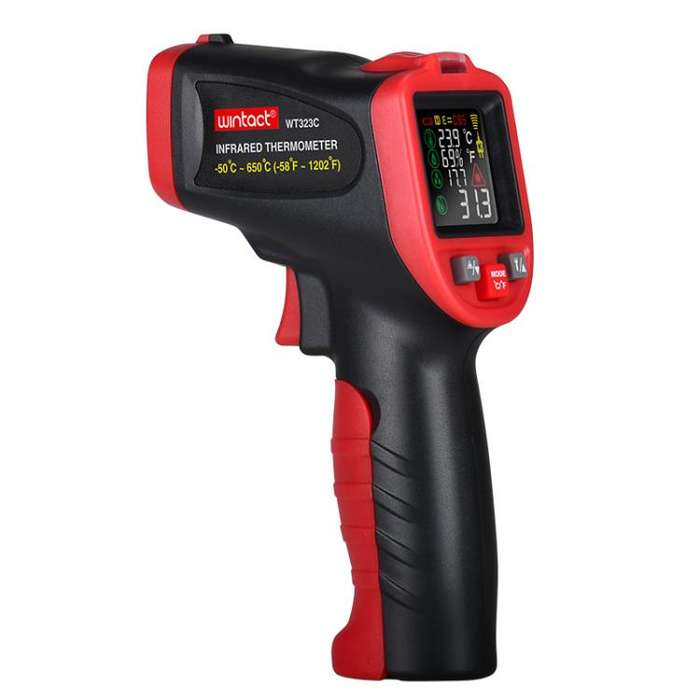

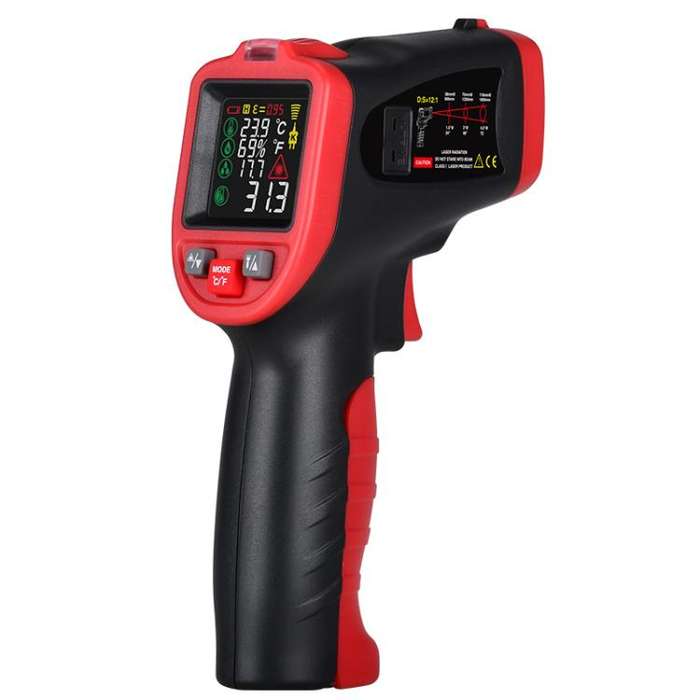

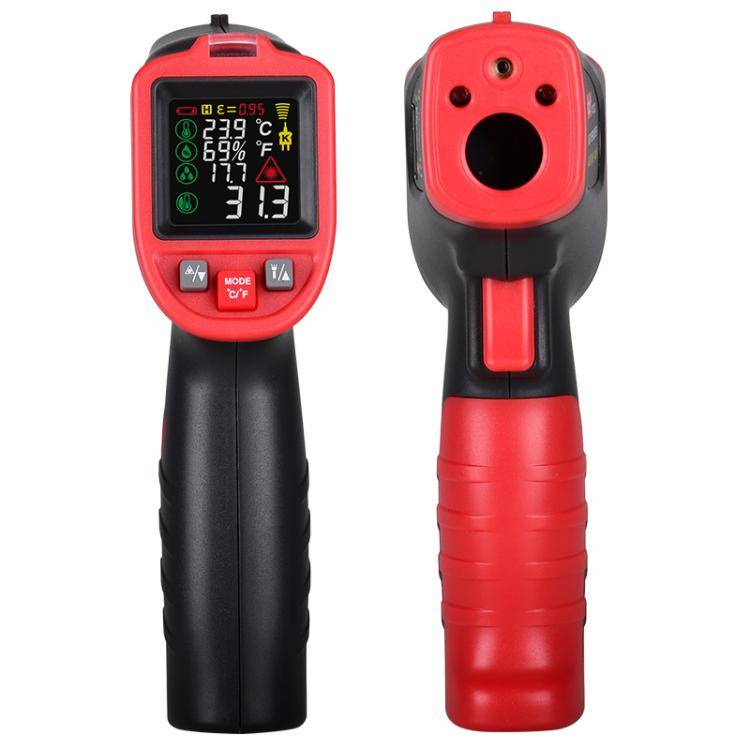

Wintact WT323C Infrared Thermometer Measuring Range -50 to 650 Degrees Celsius

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

Infrared thermometer possesses the following features:
1. Positioning laser
2. Celsius / Fahrenheit temperature unit conversion
3. K-type thermocouple
4. Data retention
5. Low battery indicator
6. Environmental humidity measurement
7. Dew point temperature measurement
8. Surface temperature measurement

Specifications
LCD: Colorful LCD
Temperature measurement range: -50 to 650 degrees Celsius (-58 to 1202 degrees Fahrenheit)
Temperature display accuracy: 0.1 degrees Celsius
Temperature measurement error:
-50 to 0 degrees Celsius(-58 to 32 degrees Fahrenheit): +/-3 degrees Celsius (+/-5 degrees Fahrenheit)
0 to 650 degrees Celsius (32 to 1202 degrees Fahrenheit): +/-1.5% rdg or +/-1.5 degrees Celsius（+/-2.7 degrees Fahrenheit）Take the bigger value
Repeatability: 1% rdg or 1 degrees Celsius Take the bigger value
Reponse time: 0.5s, 95% Response
Emissivity: 0.10 to 1.00 Adjustable (preset as 0.95)

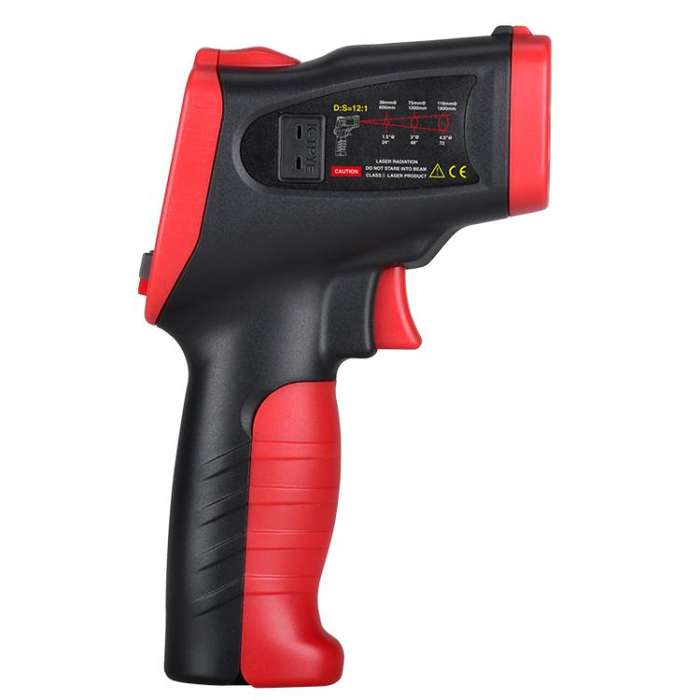

D:S: 12:1
Response wavelength: 5um to 14 um
Laser: Ring light spot
Flashlight: UV light
Working environment temperature: -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit)
Ambient temperature measurement accuracy: +/- 1 degrees Celsius (2 degrees Fahrenheit)
Relative humidity measurement accuracy: +/- 5% RH
Dew point temperature measurement: -10 to 50 degrees Celsius(14 to 122 degrees Fahrenheit): +/- 1.5 degrees Celsius / 3 degrees Fahrenheit

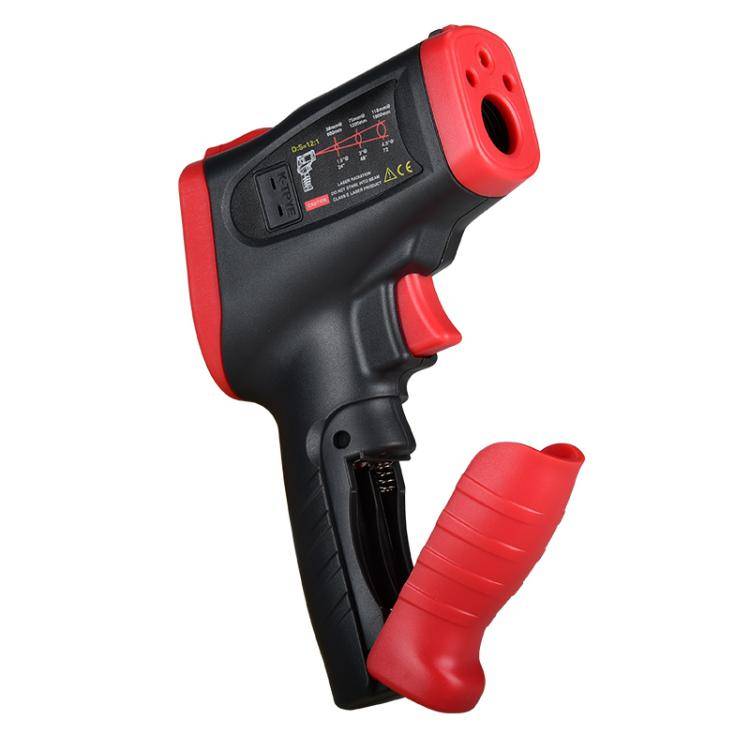

Batteries: 1.5V AAA battery x 2 (Not included)
Low power indicator: Low power indicator for power below 2.4V
Overload indicator: "Hi"/"Lo" displayed on LCD
Dimensions: 108x49x177mm
Weight: 180g

Specifications of K-type thermocouple
Measurement range: 0 to 250 degrees Celsius (300 degrees Celsius for short time)
Measurement error: +/- 2.5 degrees Celsius or 0.75% rdg Take the bigger value
Thermal response time: ＜10s

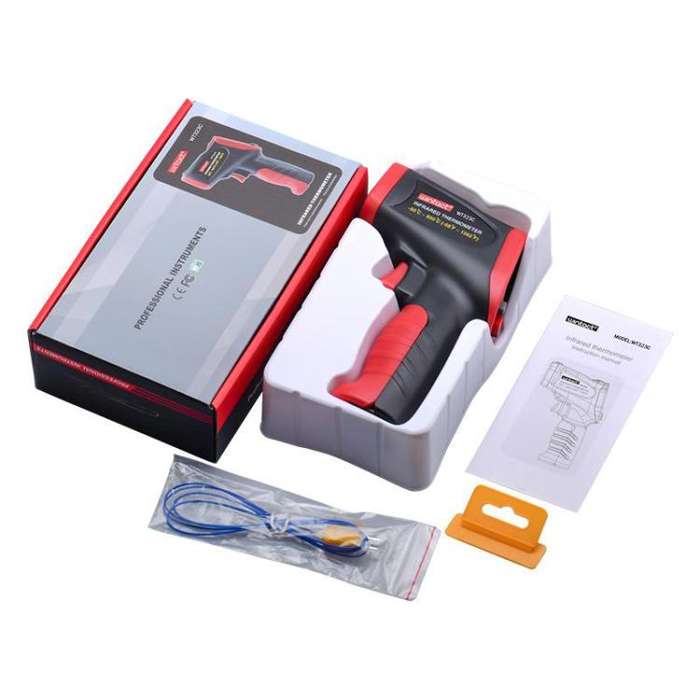

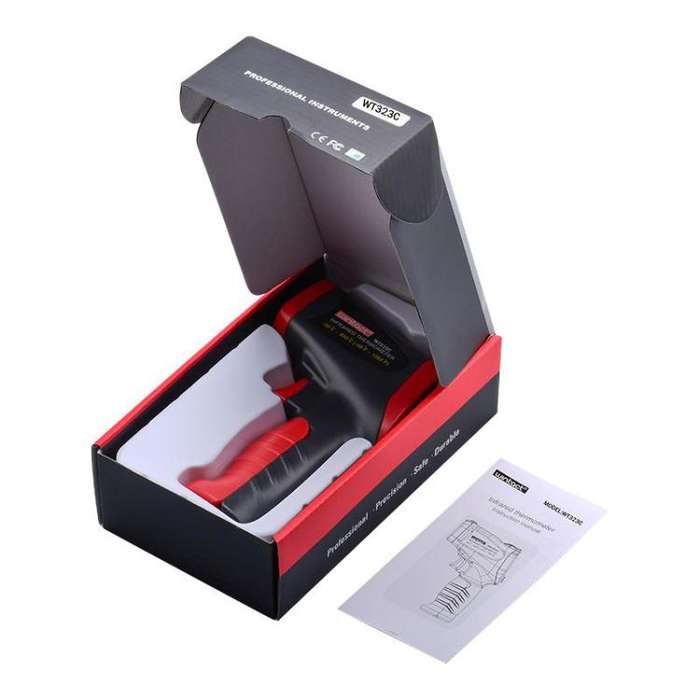

Accessories:
Instructions x 1
Host x 1
K-type thermocouple x 1
Color box x 1
