Wired Mini Camera Monitor Security System CMOS Micro Monochrome Color
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

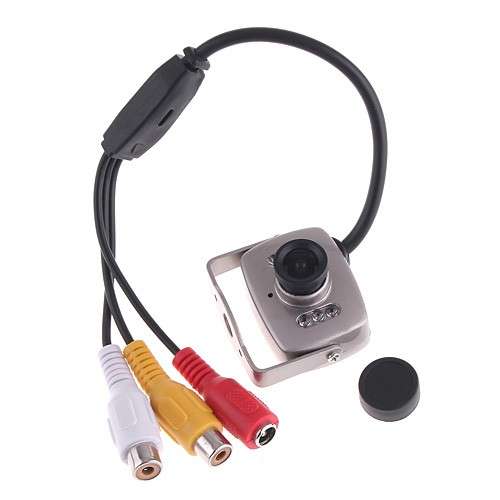

Wired Mini Camera Monitor Security System CMOS Micro Monochrome Color.jpg)
This subminiature camera can work with monitor or TV to achieve monitoring function, and it can be used in various places.
Feature:
Compact volume, low power consumption, high sensitivity, easy to operate, install and hide.
Micro Color Camera tpyes.
The lens: 5.6mm for color type.
It provides audio function, and is equipped with infrared ray.
It can view the objects without outside light source,
Can work together with other equipment including a computer such capabilities as documents filming, photographing, complex video signal PAL(CCR).
With a clip,you can choose the best location hang the clip and adjust the installation angle to ideal level.
The working voltage of this product is DC 9V.
It can be powered on for a long time, but the input voltage can be not exceeded DC+12V, while current can not be exceeded 250MA.
The yellow plug is video output cable, which can be connected with varieties of monitors and TV with video input jack to watch images.
Suitbale for car rearview, video meeting, schools, supermarkets, shops, workshops, warehouses, offices, visual telephone, visual E-mail, PC multi-media-toys, games, monitoring, guardianship, anti-burglary, safeguardor other special tasks.
Specifications:
Image sensor: 1/4" color CMOS
System: PAL/CCIR
Effective pixels: PAL 628*582
Image area: PAL: 5.78x4.19mm
Resolution: 380 TV lines
Scanning frequency: PAL/CCIR 50Hz
Video output level: 1Vpp, 75Ω
Lowest illuminance: 0.2-3 LUX
S/N ratio: 40dB
White balance: Auto
Power source: 9V DC
Power consumption: 200MW
Cable lenght: 22.5cm
Item size: 4 * 3.2 * 3cm
Item weight: 58g
Package size: 6.8 * 5.8 * 4.6cm
Package weight: 68g
Item Includes:
1 * Mini Camera
1 * Manual
