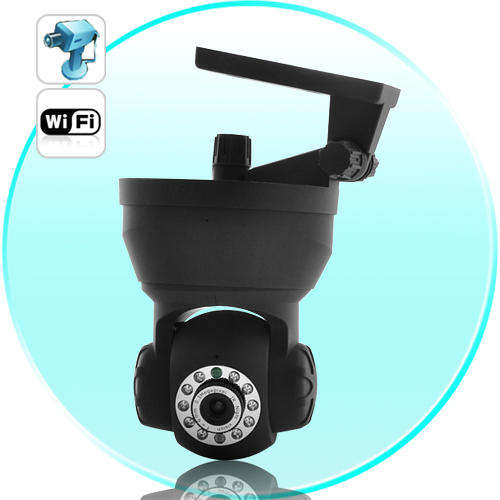

Wired / Wireless IP Surveillance Camera (IR Cut-Off Filter, Angle Control, Motion Detection)

Wired / Wireless IP Surveillance Camera (IR Cut-Off Filter, Angle Control, Motion Detection)

The ultimate Wired / Wireless IP Surveillance Camera that comes with IR filter and motion detection alarm recording function has arrived. Monitor and record from anywhere in the world.

At a Glance...

• IR filter
• Nightvision
• WEP encryption
• Worldwide access
• Both Wired and Wireless
• Connect up to 4 IP cameras
• Motion detect with email alarm
• Connect with WiFi or with LAN cable



Manufacturer Specifications

• Primary function: IP security camera with IR filter and motion detection recording
• Color: black
• Lens: f: 6mm, F:1.8 (IR lens)
• Image compression format: M-JPEG standard
• Image resolution: VGA (640x480), QVGA (320x240), QQVGA
• Sensor: CMOS 1/4 inch, 300000 pixels
• Horizontal rotating angle: 0-270 degrees
• Vertical rotating angle: 0-120 degrees
• Brightness adjustment: automatic (can be used outdoor)
• Alarm mode: motion detection/alarm and I/O alarm
• Video display: Microsoft media player
• Image display: single/quad
• Image transfer velocity: 30fps (QVGA), 25fps (VGA)
• Audio input/output: bidirection audio
• Minimum illumination: 0 LUX
• Video format: AVI
• Network interface: RJ-45/10-100 Base T 802.11b/g
• Network protocol: TCP/IP, DHCP, SMTP, TP, DDNS, UPNP, PPPoE
• Alarm control
  - Output: 1 channel (5V DC, 0.1A)
  - Input: 1 channel (closed trigger)
• Motion detection support: Yes
• Monitoring mode: IE, Firefox and Google browsers
• Software upgrade: automatic
• Security: user management system, password protection, password setting, administer, monitor, scrutiny
• White balance: automatic
• Working Temperature: 0 - 50 degrees, 20-80% PH
• Power adapter: AC 220-110V, 50-60Hz, DC 5V, 2A
• Power consumption: 3W
• System requirement: CPU from 2.0GHz
• Memory: from 256M
• Network card: from 10M
• Display card: yes
• UPNP and automatic port mapping: yes
• QVGA, VGA and max rate frame: yes
• PT speed adjustable function: yes
• Max set up 8 PTZ preset position: yes
• Multi-user remote access at the same time: yes
• FTP and email alarm: yes
• IR distance: 5-12 meters
• Mobile phone browsing: yes
• Both LAN and WAN viewing: yes
• Real-time video capture and recording: yes
• One channel external alarms input/output: yes
• DynDNS.org & Oray.net free DNS service: yes
• iPhone login: yes
• MSN login: yes
• Gmail, Hotmail, Yahoo email: yes
• VLC plug in player mode: yes

Main Screen Software Controls & Displays
• Viewing and recording (visitor)
  - Single screen
  - Multi screen
  - Add time stamp on record
  - OSD color
  - Audio buffer
  - Play, stop, snapshot,
  - Record - Audio, video, MIC record
• Operator
  -270 degrees panning control
  - Viewing options - Reversal, mirror
  - Resolution - 320 x 240, 640 x 480
  - Mode - 50 Hz/60Hz, outdoor
  - Brightness & contrast adjustments
• Administrator
  - User settings - Set up to 8 users
  - Set time & date - Sync with your PC and select from a list of Ntp servers
  - Multi-device options - This feature allows you to setup 4 IP cameras to monitor simultaneously
  - Basic network settings - Use the basic network settings to allocate IP addresses to each individual IP camera*
  - Wireless LAN settings - Comes with WEP encryption security options
  - ADSL settings
  - UPnP settings
  - DDNS service settings
  - Mail service settings - Set up mail alert
  - FTP service settings
  - Alarm service settings - Motion detection, alarm input, send mail on alarm, upload image on alarm


• Connectors/ports
  - Audio
  - Ethernet
  - Antenna
  - I/O alarm
  - DC 5V
• Supported operating systems: Windows 2000/2003/XP/Vista/Windows 7
• Dimensions: 100 x 100 x H:120 (mm)

Package Contents

• IP camera
• Ethernet cable
• Mounting plate
• Wall screws x 2
• Power adapter
• CD (User manual - English, IP camera application)
• Antenna
