Color | Black |

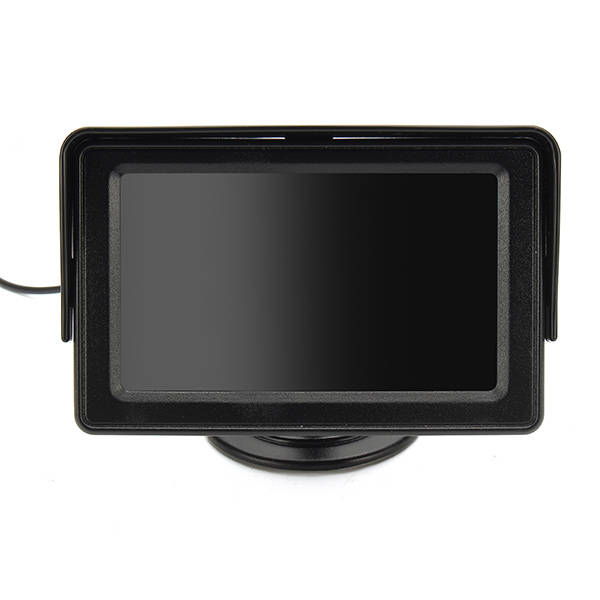

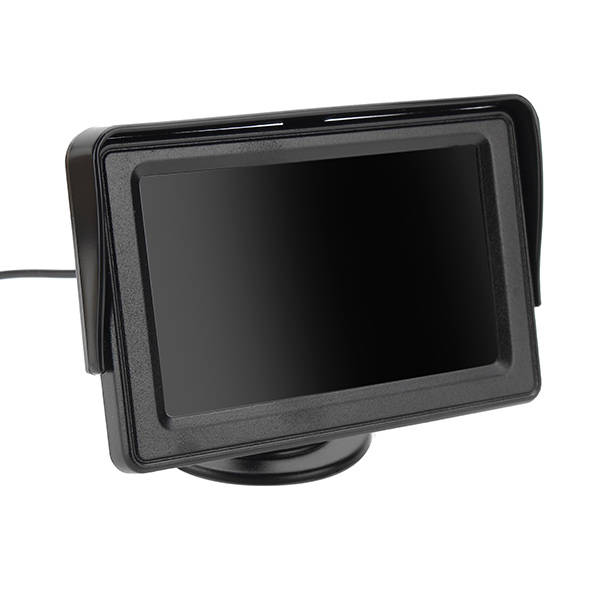

Screen Size | 4.3 inch TFT LCD screen(Best size for rear view) |
Aspectratio | 16:9 or 4:3 |
Power Supply | DC 12V |
Resolution | 480(H) * RGB * 272(V) |
Consumption | ≤ 4.5W |
Video input | AV1/AV2,AV1 connect VCD/DVD video output signal (system default),AV2 connection reversing camera (auto switch when reversing) |
Video System | NRSC/PAL/AUTO,Compatible with all system |
Night vision | Yes |

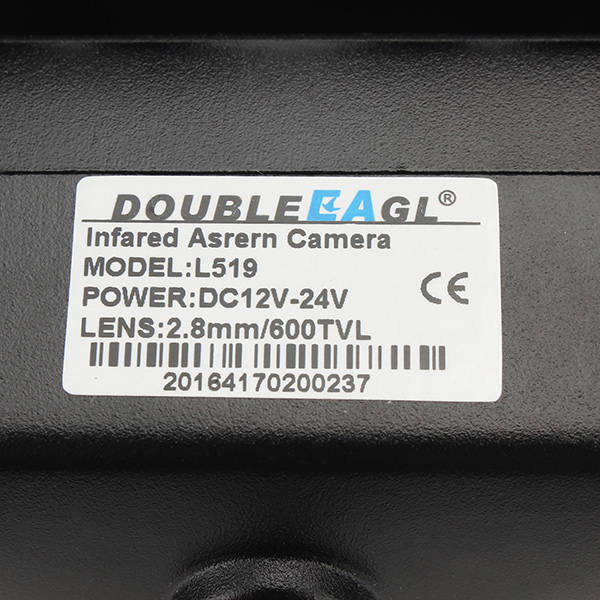

Image Sensor | 1/4 CMOS |
Power Supply | DC 12V-24V |
Resolution | 640*480 |
Active Pixel | 600TVL |
Minimum Illumination | 0.5Lux |
Application Temperature | -30¿¿¿ ~ +70¿¿¿ |
Fill light | infrared |
Waterproof | IP67/68 |
Format | PAL |
Image Rollovers | Mirror image |
Gauge | No |
Viewable Angle | 120 degree |
Transmit Receive Frequency | 2370 MHz |
Output Power | 100MW |
Working Voltage | DC 12V |
Video input | PAL/NTSC Composite video signal |
Transmit Receive Distance | 100M maximum |
Work Temperature | -20¿¿¿ ~ +80¿¿¿ |
Video Output | PAL/NTSC Composite video signal |
Receiving Sensitivity | - 85Dbm |

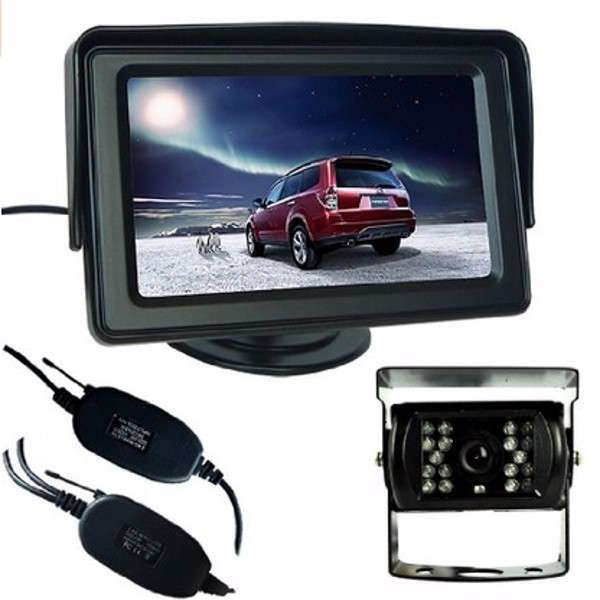

1 X 4.3" Car Monitor | 1 X Car Rear View Camera |
1 X Wireless Transmitter | 1 X Wireless Receiver |
1 X Power Cable | 1 X Monitor Mat |
1 X User Manuals |
