Wireless Audio Visual Intercom System

Wireless Audio Visual Intercom System

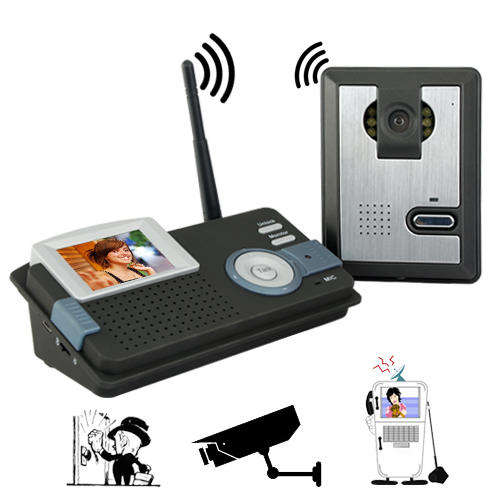

This bilateral (two-way) intercom system is perfect for indoor and outdoor surveillance. It works on the 2.4GHz wireless frequency to securely transmit digital AV signals (audio and video) and comes with an outdoor unit and a portable indoor receiver with a 2.4 inch screen to let you see who's at the door from anywhere in your home. For people and businesses that have an E-Lock mechanism in their doors, then this wireless audio visual intercom system will work even better. At the office, the receiver allows you to unlock the door remotely by connecting your door's E-lock mechanism to the outer unit. So not only can you see who's at the door, you can even unlock the door to let them in. The unit also lets you take snap shots of people knocking at your door, just hold down the monitor button for a couple of seconds and a photo will be captured. The wireless video receiver also displays a signal strength indicator on the screen. This is very useful and lets you know if the unit is still receiving a signal or not. So when you decide to use the receiver as a portable unit you can make sure not to wander out of range from the door. The outer unit comes with 6 LED lights, so even in the darkest lighting conditions you will still be able to know who's there. The audio and visual receiver with viewscreen can be placed on a desk, mounted to a wall, or even used as a portable unit that you can carry around with you - the choice is yours!

Manufacturers Specifications

• Primary Function: Home Audio and Visual Portable Intercom System
• Indoor Unit Specifications:
  - Power Supply - Input 100-240V (50/60Hz) / Output - DC 5V 1A
  - Screen Size - 2.4 inch TFT LCD screen
  - On Screen Indicators - Signal Bar, Battery Bar, Time, Atmosphere Temperature
  - Modulation - GFSK
  - Internal Battery - 3.7V 1200mAh Rechargeable Li-ion Battery
  - Power Consumption - Standby - 0.1W / Working - 12W
  - Frequency - 2.4GHz
  - Channel - 64
  - Transmitting Power - 17dBm
  - Charging Time - 3 Hours
  - Onboard Buttons/Indicators - Unlock Door, View Monitor. Talk Button, MIC, LED Indicator, Mini USB Input, Speaker, Volume -/+, Brightness control -/+, Antenna, Power ON/OFF Switch
  Dimensions: L:102 x W:134 x H:55 (mm)
• Outdoor Unit Specifications:
  - Power Supply - Input 100-240V (50/60Hz) / Output - DC 5V 1A
  - Camera - CMOS 300,000 Pixels
  - Light Source - 6 LEDs
  - Channel - 64
  - Modulation - GFSK
  - Frequency - 2.4GHz
  - Transmitting Power - 17dBm
  - Dimensions: L:127 x W:95 x D:36 (mm)
  - Onboard Buttons/Indicators - Call Button, 6 LED Lights. MIC, Speaker, LED Indicator, Power ON/OFF Switch

• Operating Temperatures: -5 to + 45 Degrees Celsius
• Certification: FCC, CE

Product Notes

• Very Simple to use, easy and straight forward
• Take your time in the bathroom, no need to rush things as long as you have the portable viewscreen receiver with you!
• The outer unit connects via a negative and positive power cable to the e-lock mechanism in your door
• The indoor receiver charges through either the power charger provided or through a USB connection on your computer
• The outdoor receiver comes with 6 LED's to provide light during dark lighting condition, so you can always see who is at the door
• To view captured photos, press the monitor button and hold down for 2 seconds, then you can navigate with the arrow keys and view the photos

Package Contents

• Audio Visual Tow Way Intercom Units, Power Adapter 100-240V x2, Positive Negative Wiring For E-lock System, User manual - English

Frequently Asked Questions

• Does the unit also record video?
  No, you can only take photos with the unit to have a record of who visited.

• What exactly is an E-Lock?
  E-lock stands for electronic lock, if your door comes with an electronic lock then you have connect it to this wireless AV intercom system. If your door does not come with an e-lock, then you can still install the wireless audio visual intercom system, it helps knowing who’s at the door, whether your in the kitchen, garage, bathroom or just taking a nap.
