Main Features:

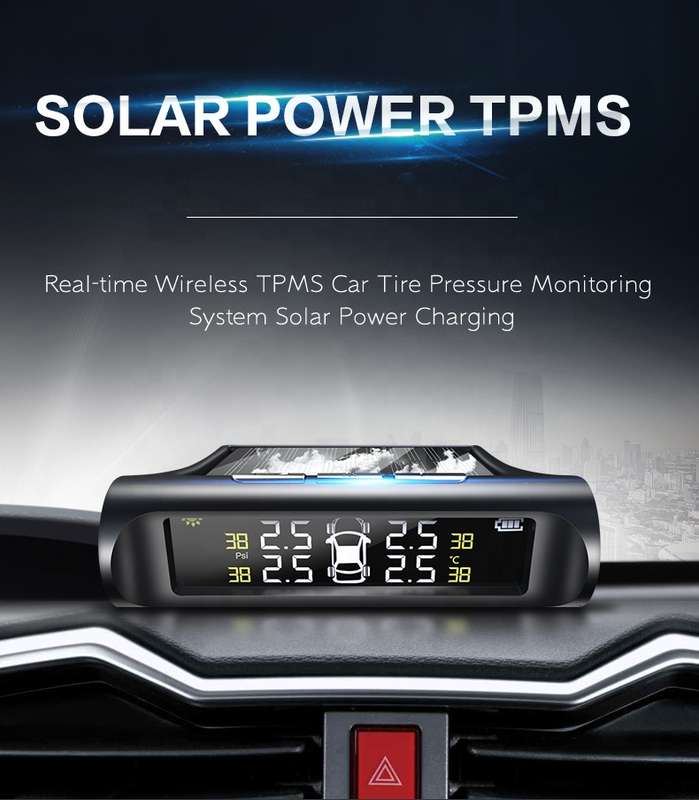

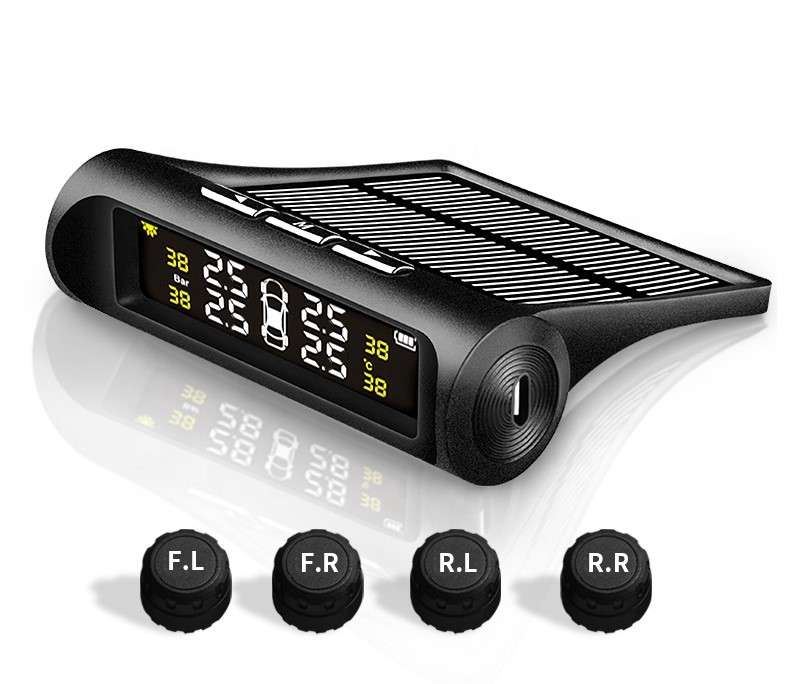

1.Use solar energy to get electricity, with 4 internal or external sensors.

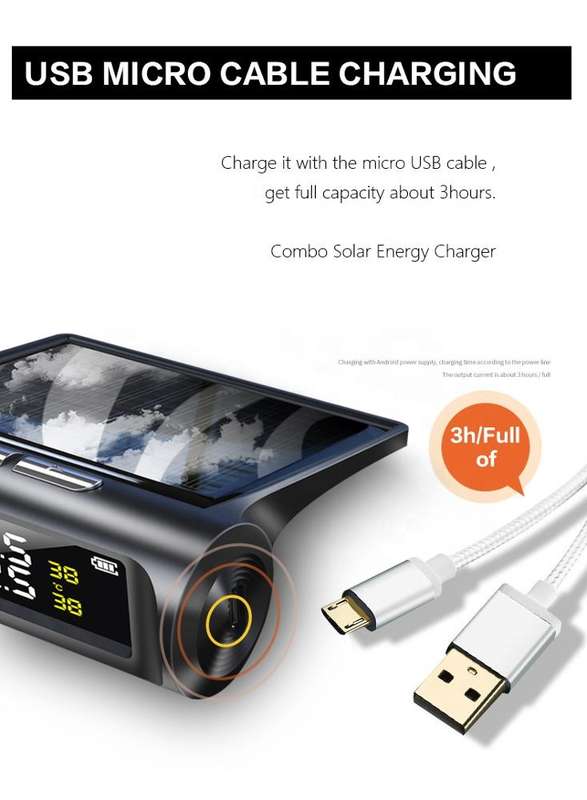

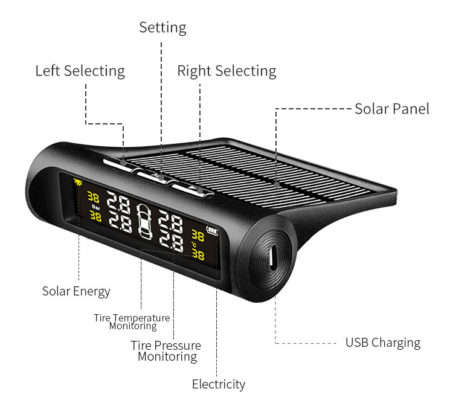

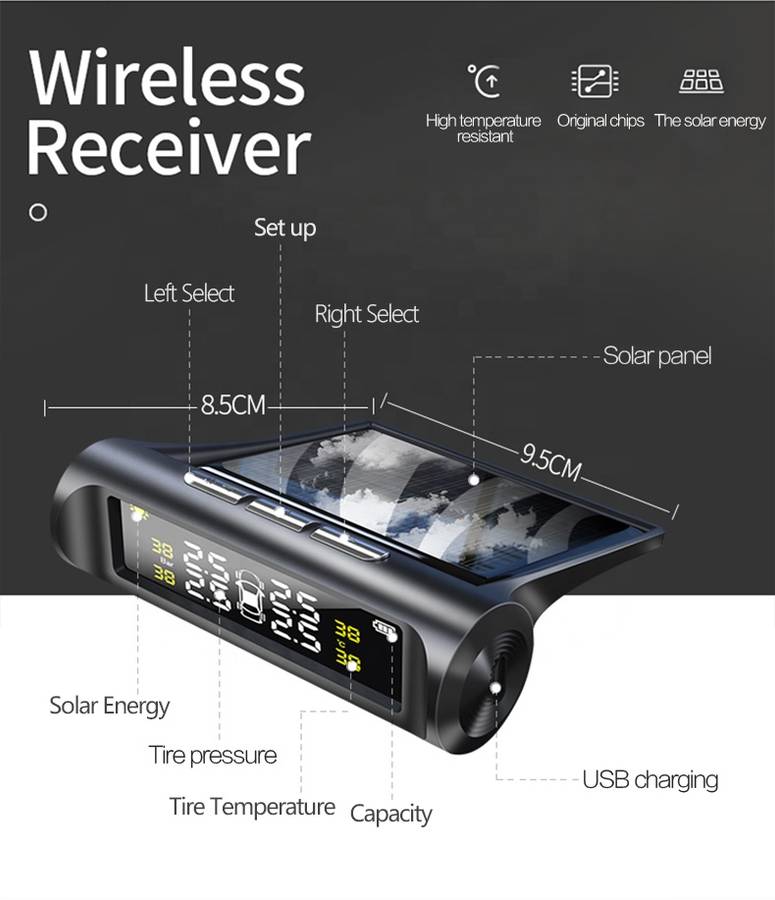

2.LCD panel, with extra Micro USB port for charging.
3.Light weight design for sensor, no need to adjust to be balance when the tire moving.
4.Real-time Monitor the temperature and pressure with high degree accuracy
5.Save fuel, foresee air leakage, reduce tire wear out, balance tire pressure, ensure safety driving.
6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.
7.With two pressure unit "PSI, BAR " and two temperature unit"," for option.
8.Support tire position exchange function.
9.Sensor waterproof grade: IP67.
10.With Infineon Chip and RENATA anti-explosion battery.
11.YB068 Cheapest Good Quality Solar Wireless TPMS Sensors
Quick Details:
Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YB068
Operating voltage: 3.7V-5V
Chip: Infineon/Freescale (Import from Germany/USA)
Working temperature: -30°C-85°C
RF Emission frequency: 433.92MHz±50KHz

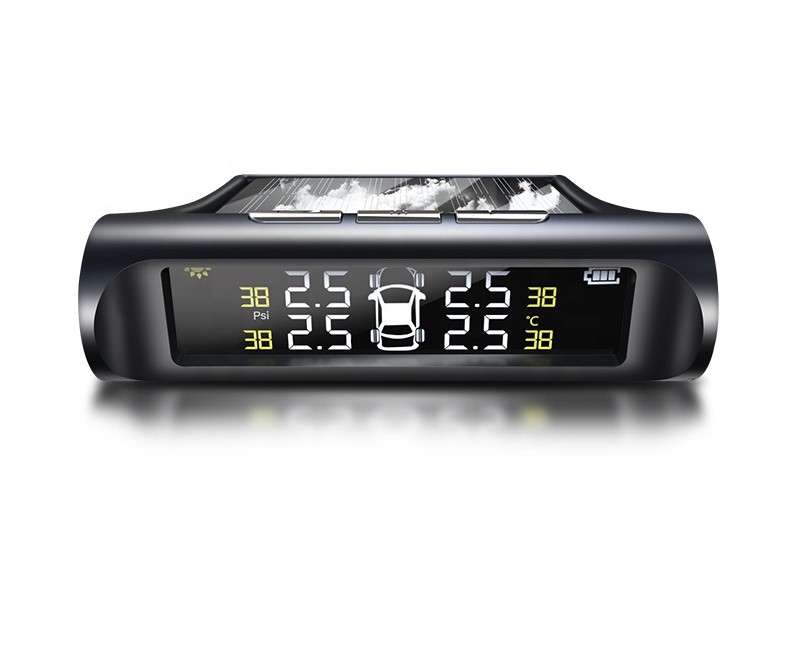

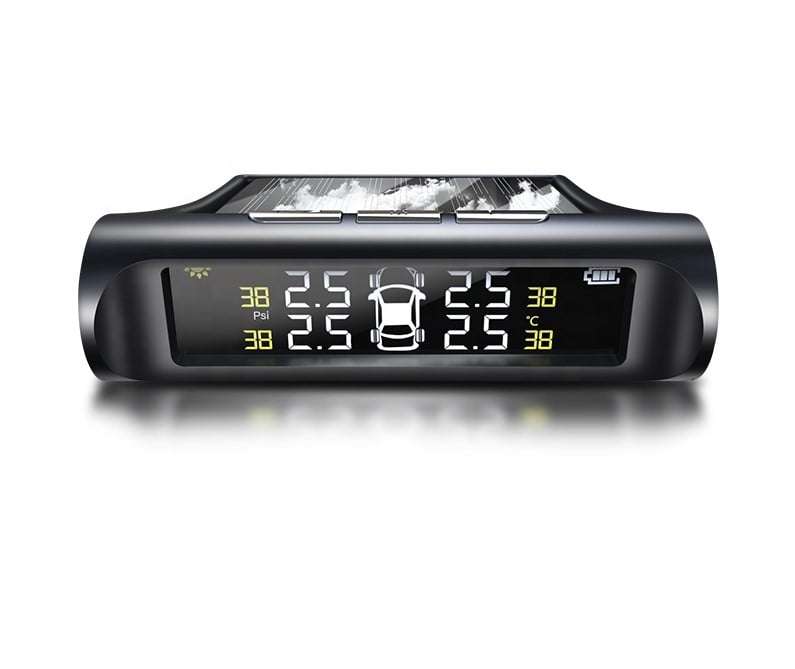

Display: LCD Colour display
Working pressure: 0-73PSI (Infineon chip)
Working Pressure: 0-102Psi (Freescale chip)
Solar Panel Capacity: 400mA
Default Pressure: 26PSI-46PSI (Adjustable)
Specifications:
| Monitor Specification | |
| 1.Operating Voltage | 3.7-5v |
| 2.Storage Temperature | -30-90 |
| 3.Working Temperature | -30-85 |
| 4.RF Emission Frequency | 433.92MHZ+/-50MHZ |
| 5.Monitor Mode | LCD Color Display |
| 6.Working Pressure | 0-116 PSI(Freescale) 0-9PSI(Infineon) |
| 7.Bright Operating Current | 6mA |
| 8.Black Operating Current | 4mA |

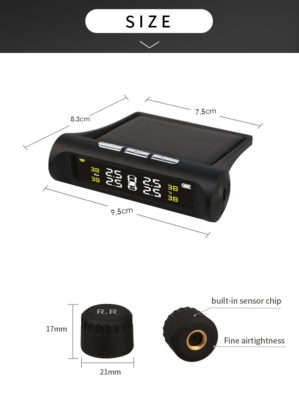

| 9.Size | 95*83*75MM |
| 10.Chip | Infineon (Import Germany)Freescale(USA) |
| 11. Use time/cycle | 10-15days after get full charged |
| 12.Factory Default Pressure | 26-46 PSI |
| 13.Solar Panel Battery Capacity | 400 ma |
| 10.NW | 0.3KG |
| 11.GW | 0.36KG |
| |
| External Sensor Specification | |
| 1. Battery Life | 24months |
| 2.Operating Voltage | 3v |
| 3.Storage Temperature | -30-90 |
| 4.Working Temperature | -30-85 |
| 5.Temperature Resolution | +/-2(25) |
| 6.Pressure Range | 0-7.0Bar |
| 7.Waterproof Grade | IP67 |
| 8.Transmitted Power | 10dBm |
| 9.Transmitted Frequency | 433.92MHZ |
| 10.Size | 21*17mm |
| 11.Weight | 9g |
| 12.Lithium Battery | CR1632 |
| Certification | CE ROHS |
| Aging test | full 72hours aging test |
| QC testing | 100% full inspection before shipping out |

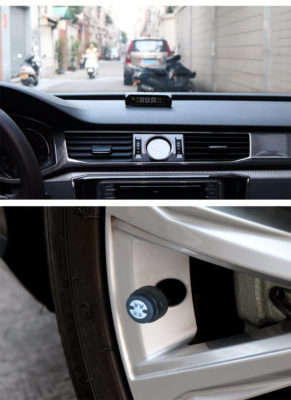

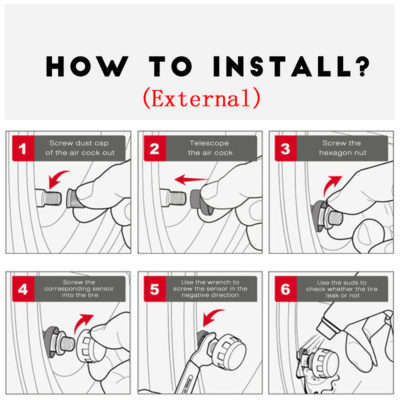

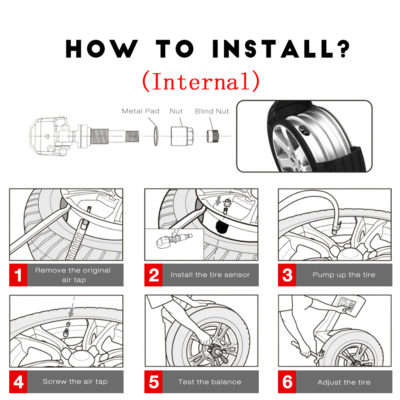

How To Install:

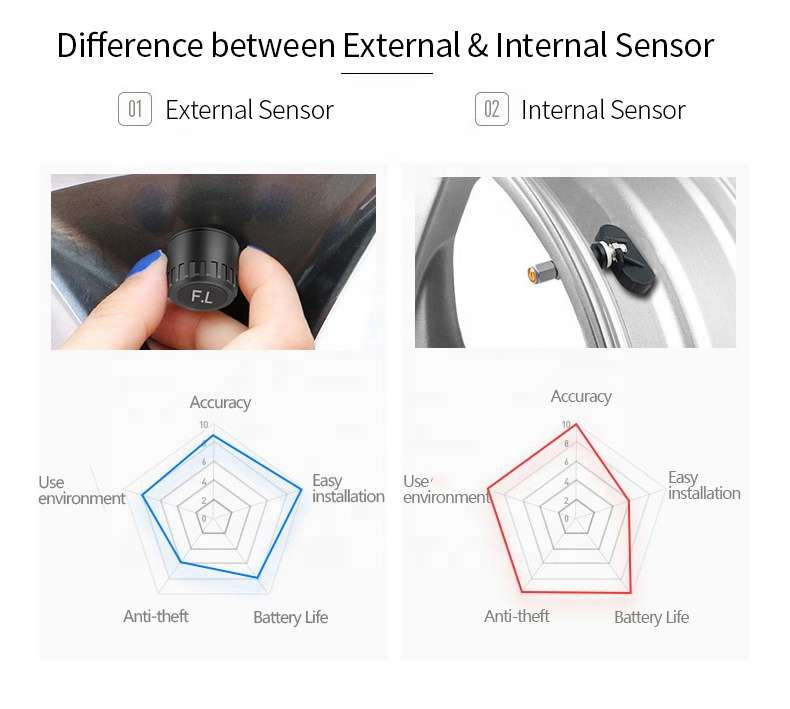

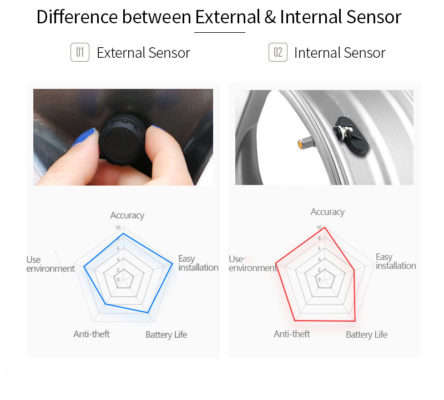

Differences Between An External & Internal Sensor:
