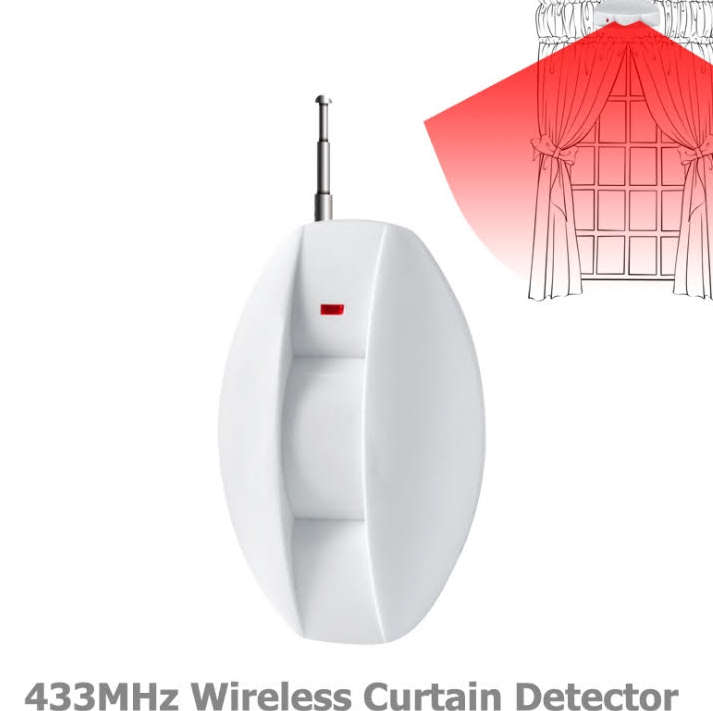

Wireless Curtain Motion Detector 433MHz

PRODUCT DESCRIPTION

**Please Note: Requires a Wireless 433 Alarm host to work, cannot work alone!

• The curtain detector will send the alarm signal to the alarm host if human movement is detected.
• Wireless passive infrared detector with high stability adopted advanced technology in signal processing, provide super high detection ability and anti-error alarm.
• Low power consumption design, longer battery standby time.
• It can be used in summer and cold weather (indoor only).
• If the control panel does not receive a signal 8 times during 4 hours, it will send the fault information about the detector is lost.

PRODUCT SPECIFICATIONS

• Operating voltage: DC 9V-16V (9V 6F22 Battery NOT included)
• Static current: 25uA
• Alarm current: 15mA
• Detecting distance: 6-8m
• Detecting angle: 15-110°
• Frequency: 433.92MHz
• Effective distance: more than 80m (open area)
• Low battery indicator: Blue
• LED Alarm indicator: Red
• LED Sensor: dual element infrared sensor
• Operating temperature: -10 ~ +50
• Environment humidity: 95% RH (no congelation)
• Anti RF interference: 10MHz 1GHz 20V/m
• Installation mode: wall mounted
• Color: White
• Item Size: 11.0*7.0*4.2cm
• Item Weight: 68g
• Package List: 1 x Curtain Infrared Detector 1 x Bracket
• Launch distance: 100 meters open
• Encoding chip: 1527 or 2262
• Dimension: 110 x 69.5 x 40MM
