Wireless Home Surveillance Kit - 4 Nightvision Cameras +Receiver
Free Worldwide Shipping

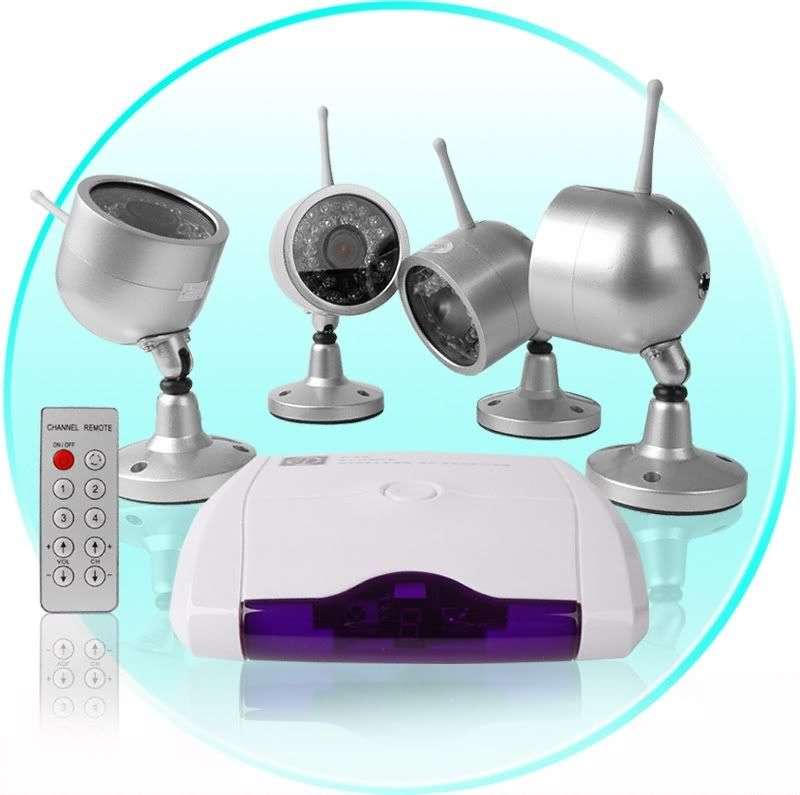

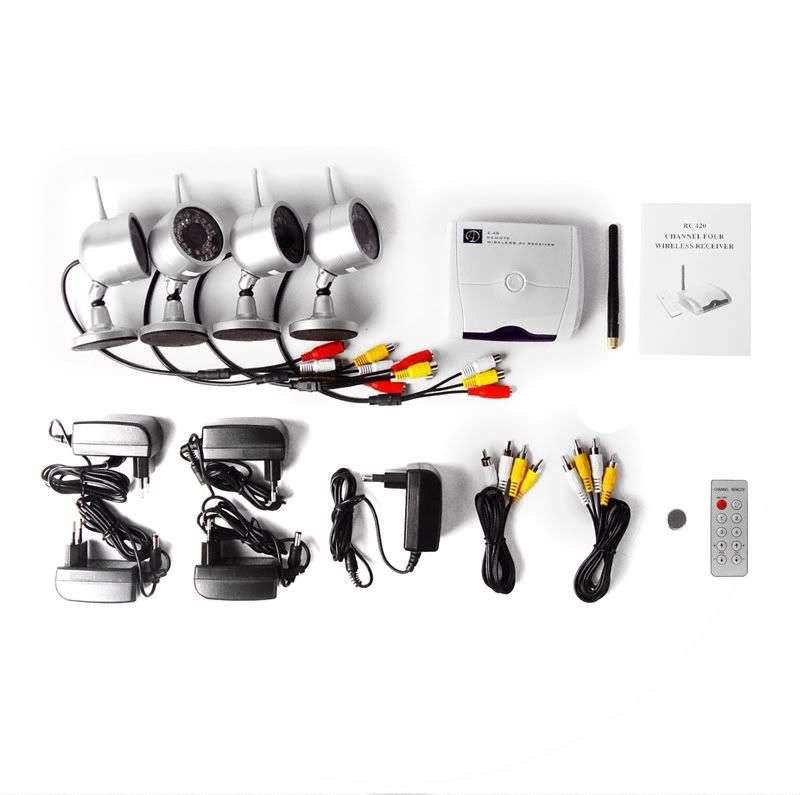

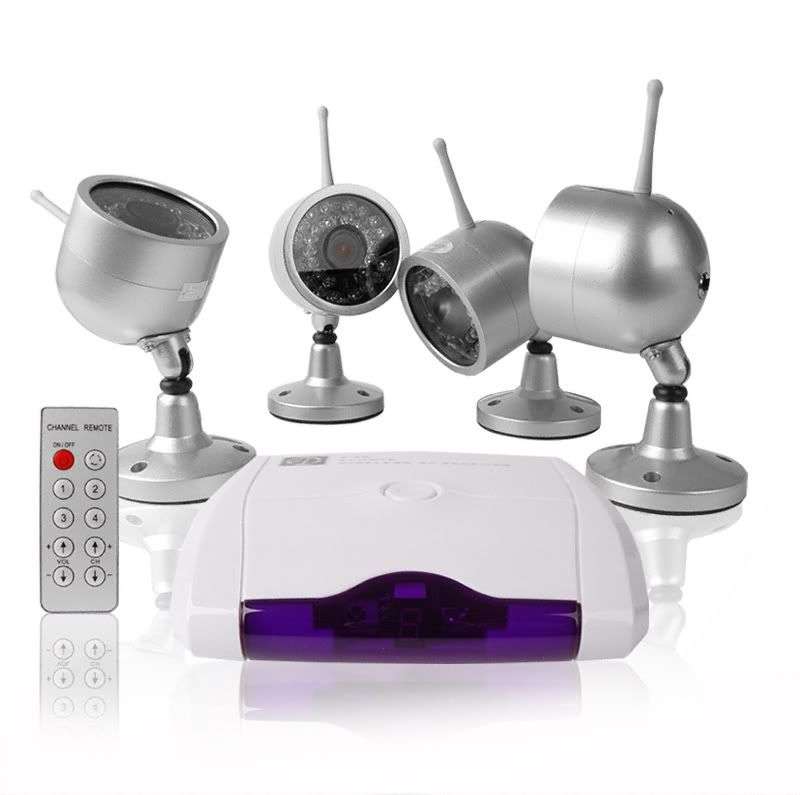

Home Surveillance Kit - 4 Wireless Home Surveillance Kit - 4 Wireless Transmitting Nightvision Cameras + 1 Wireless Receiver - 2.4GHz locked frequency. The open transmission distance can be up to 15 meters. The receiver can also be used by infrared remote control and can plug into monitors with AV IN so you can view what is happening, and record it if the product has recording capability. Night vision distance of the infrared camera is up to 15m. This wholesale product applies to broad fields of surveillance and can have many uses to owners.
This product uses the PAL colour system, although the receiver maybe compatible with both NTSC and PAL cameras the AV output from the receiver will be in the same colour system as the camera.

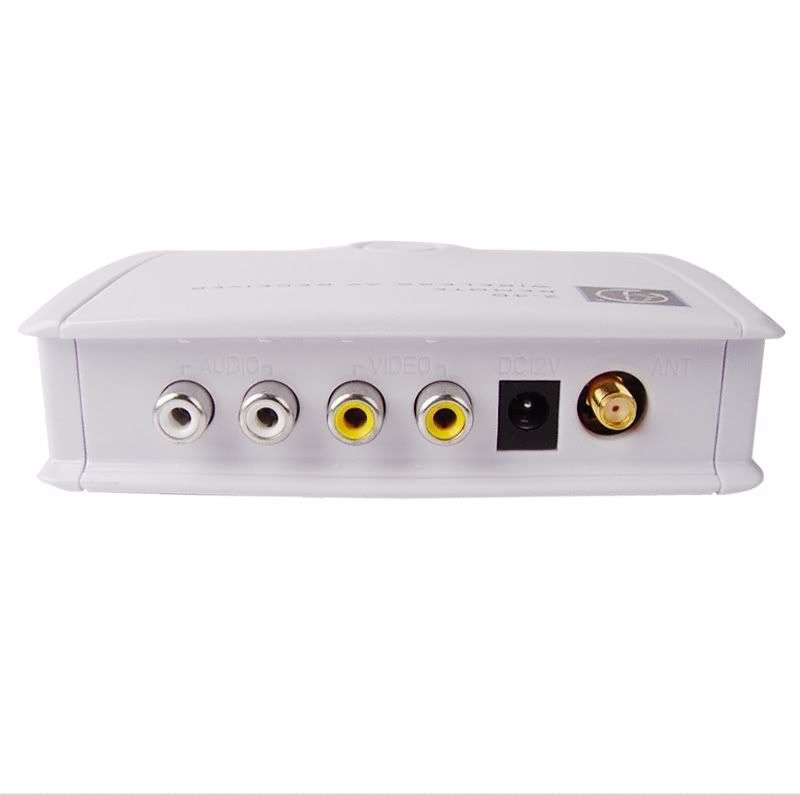

Receiver Specifications
- Receiving Frequency: ISM 2400~2483Mhz
- Intermediate Frequency: 480Mhz
- Frequency Stabilization: +/-100Khz
- Demodulation Mode: FM
- Antenna: 50ohm SMA
- Receiving Sensitivity: <-85dBm
- Video Output: 1Vp-p@75, S/N>38dB
- Audio Output: 1Vp-P@600
- Power Adapter: DC 12V/500mA
- Dimension: 120x99x30mm (LxWxD)
- Manual or Remote Controlled
- Four Channels Available
- Channel Scan and Channel Skip for multiple Cameras

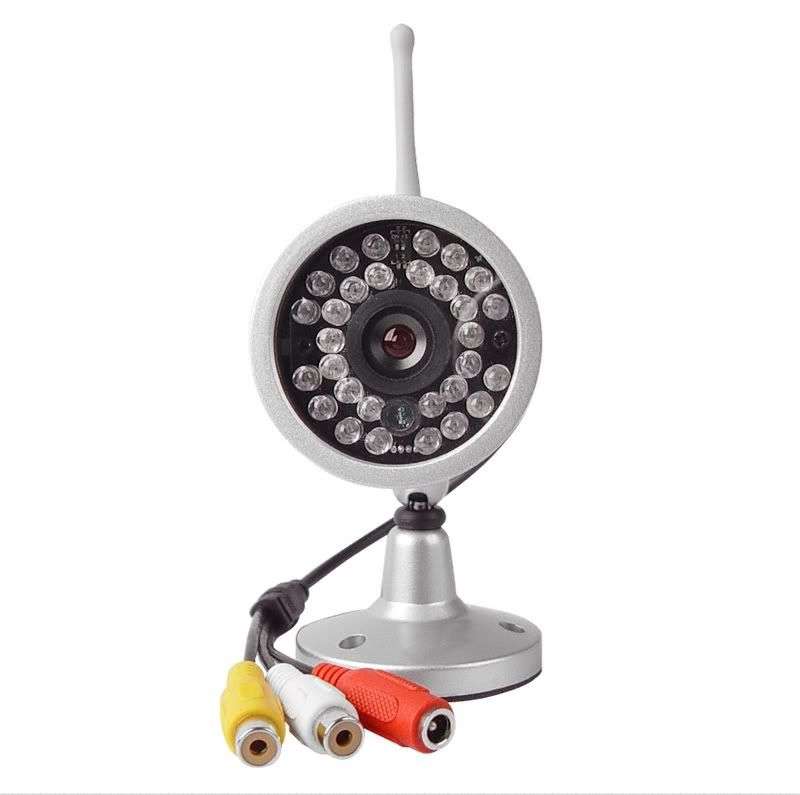

Camera Specifications
- Image Device: 1/3 Inch OmniVision CMOS
- TV system: PAL 628(H)x568(V)
- Horizontal Definition: 380TV Line
- Angular Field of View: 45deg(f=6mm)
- Minimum Illumination: 0Lux
- Built in 30 IR LED for 12m night vision range
- Synchronization System: Internal
- Scanning Freq(H): 15.625KHz PAL
- Scanning Freq(V): 50Hz PAL
- Backlight Compensation: Auto
- Electronic Shutter: 1/50(1/60)~1/100,000sec
- White Balance: Auto
- S/N Ratio: >48dB
- Gamma Correction: >0.45
- Operation Temperature: -10~50 deg C
- Transmission Frequency: ISM 2,400~2483MHz
- Locked Frequencies
- Power Adapter: DC12V/500mA
- Dimension: 44x100 camera circumference x L
- Waterproof
- Built in Microphone
- Recommended Range for Objects: 1-12M. Max effective range 12M.
- Transmission Range: 15m without interference
