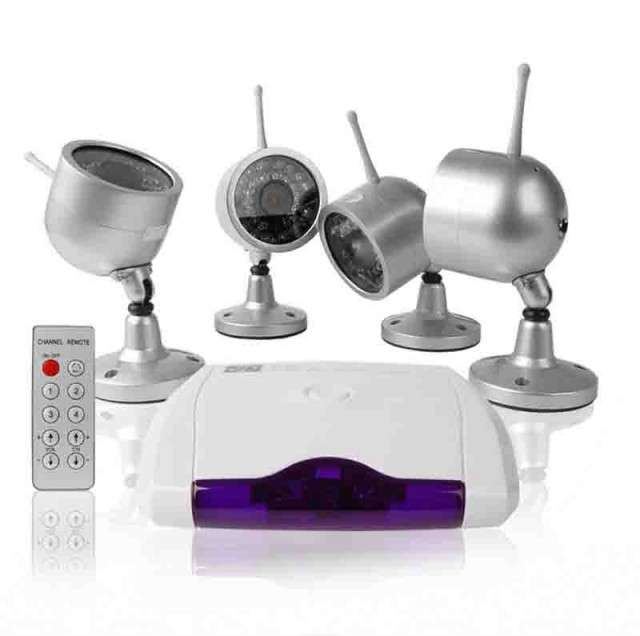

Wireless Home Surveillance Kit - 4 Nightvision Cameras +Receiver

Wireless Home Surveillance Kit - 4 Nightvision Cameras +Receiver

Home Surveillance Kit - 4 Wireless Home Surveillance Kit - 4 Wireless Transmitting Nightvision Cameras + 1 Wireless Receiver - 2.4GHz locked frequency. The open transmission distance can be up to 15 meters.

The receiver can also be used by infrared remote control and can plug into monitors with AV IN so you can view what is happening, and record it if the product has recording capability. Night vision distance of the infrared camera is up to 15m.

This product uses the PAL colour system, although the receiver maybe compatible with both NTSC and PAL cameras the AV output from the receiver will be in the same colour system as the camera.

Receiver Specifications:
Receiving Frequency: ISM 2400~2483Mhz
Intermediate Frequency: 480Mhz
Frequency Stabilization: +/-100Khz
Demodulation Mode: FM
Antenna: 50ohm SMA
Receiving Sensitivity: <-85dBm
Video Output: 1Vp-p@75, S/N>38dB
Audio Output: 1Vp-P@600
Power Adapter: DC 12V/500mA
Dimension: 120x99x30mm (LxWxD)
Manual or Remote Controlled
Four Channels Available
Channel Scan and Channel Skip for multiple Cameras

Camera Specifications:
Image Device: 1/3 Inch OmniVision CMOS
TV system: PAL 628(H)x568(V)
Horizontal Definition: 380TV Line
Angular Field of View: 45deg(f=6mm)
Minimum Illumination: 0Lux
Built in 30 IR LED for 12m night vision range
Synchronization System: Internal
Scanning Freq(H): 15.625KHz PAL
Scanning Freq(V): 50Hz PAL
Backlight Compensation: Auto
Electronic Shutter: 1/50(1/60)~1/100,000sec
White Balance: Auto
S/N Ratio: >48dB
Gamma Correction: >0.45
Operation Temperature: -10~50 deg C
Transmission Frequency: ISM 2,400~2483MHz
Locked Frequencies
Power Adapter: DC12V/500mA
Dimension: 44x100 camera circumference x L
Waterproof
Built in Microphone
Recommended Range for Objects: 1-12M. Max effective range 12M.
Transmission Range: 15m without interference.
