Wireless Mini Nightvision Camera + USB DVR Receiver Set

Wireless Mini Nightvision Camera + USB DVR Receiver Set

 Specifications

• Primary Function: Wireless Nightvision Security Camera with USB Receiver

  Receiver Specifications:

• Receiving Frequency:
  Channel 1: 2.414 GHz
  Channel 2: 2.432 GHz
  Channel 3: 2.450 GHz
  Channel 4: 2.468 GHz
• Demodulation Mode: FM
• Antenna: 50ohm SMA
• Receiving Sensitivity: <-85dBm
• Power: USB
• Dimensions: 82 (L) x 37 (W) x 16 (H) mm

  Camera Specifications

• Image Device: 1/3 CMOS
• Color system: PAL
• Horizontal Definition: 380TV Line
• Angular Field of View: 45deg (f=6mm)
• Lens: 3.6 mm
• Minimum Illumination: 0 Lux
• Synchronization System: Internal
• Scanning Freq(H): 15.625KHz PAL
• Scanning Freq(V): 50Hz PAL
• Backlight Compensation: Auto
• Electronic Shutter: 1/50(1/60) ~ 1/100,000sec
• White Balance: Auto
• S/N Ratio: >48dB
• Gamma Correction: >0.45
• Locked Frequency: Yes
• Motion Detection: Yes
• Email Alert: Yes
• Operation Temperature: -10 ~ +50 deg C
• Recommended Range for Objects: 1-15M
• Max effective range: 15 M
• Transmission Range: 20m Maximum
• Recording Format:
• Picture: JPG
• Video: AVI
• Dimension: Diameter 53 x 62 (L) mm
• Power Adapter: 100-240V

  System Requirement:

• CPU: 1.8 GHz or Higher
• Memory: 256 MB or more
• Hard Drive Space: 100 Mb for Software installation
• OS: Windows 2000/XP/Vista
• USB Connection: USB 2.0 Required

Product Notes

• Great product for security novice or expert
• You can view the camera images with AV line and wireless receiver at the same time, but you can only control camera functions from your computer
• USB DVR Receiver has 4 different frequency channels. It is possible to connect up to four cameras to one USB receiver, but they need to be tuned to different frequency(see Receiver Specification)

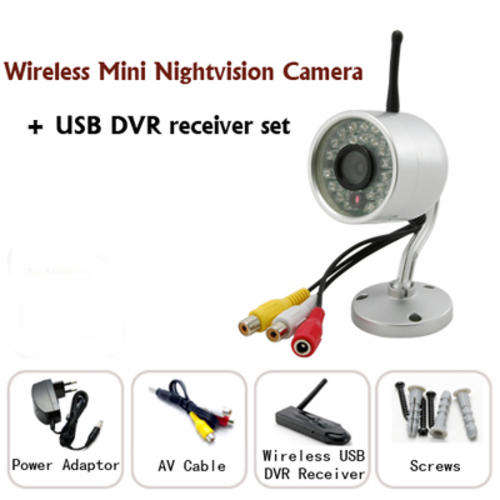

Package Content

• Wireless Mini Security Camera
• Wireless USB DVR Receiver
• Power Adaptor
• AV Cable


FAQ

Can I have 2 or more of this product setup within 10 meters distance from each other?
No, you will need to tune the camera to different frequency if you want to do so. Otherwise, this will cause signal interference and the Wireless DVR will usually pickup the closer one.

Do I have to turn nightvision on manually?
No, the internal light sensor will automatically turn on the nightvision if light condition is low.

Is this AV output compatible with TV systems in SA?
This model is compatible with any modern TV and recording system that can switch between the PAL/NTSC color systems, which includes most security grade DVR's and monitors made in the last 10 years.
