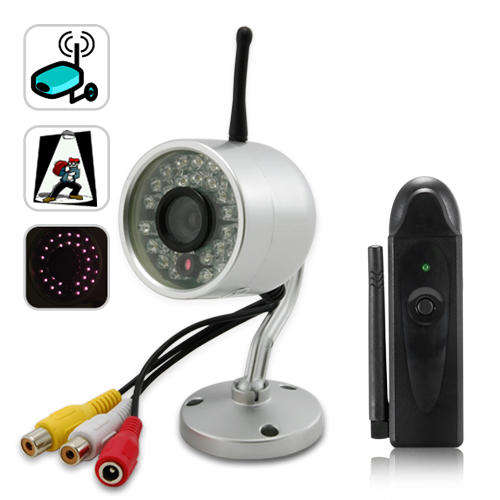

Wireless Mini Nightvision Camera + USB DVR Receiver Set

Wireless Mini Nightvision Camera + USB DVR Receiver Set

Looking for an inconspicuous and economical way to watch over your room or small business? Look no further, the Wireless Mini Nightvision Camera + USB DVR receiver set is simple and affordable solution for keeping your eyes on your home and small business

The Wireless Mini Nightvsion Camera requires only a power source and can be installed on walls, floors or ceilings. The 30 IR LED night vision will automatically turn on to make sure the camera is working for you, day and night. The wireless receiver can be positioned at a distance of up to 15 meters from the camera and works directly from your computer. You can monitor everything from your computer or set up motion detection so the camera will automatically take picture shots when movement is detected. You can also use an AV cable to connect the camera to a monitor or a secondary recoding devices.

Manufacturer Specifications

Receiver Specifications:

• Receiving Frequency:
  Channel 1: 2.414 GHz
  Channel 2: 2.432 GHz
  Channel 3: 2.450 GHz
  Channel 4: 2.468 GHz
• Demodulation Mode: FM
• Antenna: 50ohm SMA
• Receiving Sensitivity: <-85dBm
• Power: USB
• Dimensions: 82 (L) x 37 (W) x 16 (H) mm

Camera Specifications

• Image Device: 1/3 CMOS
• Color system: PAL
• Horizontal Definition: 380TV Line
• Angular Field of View: 45deg (f=6mm)
• Lens: 3.6 mm
• Minimum Illumination: 0 Lux
• Synchronization System: Internal
• Scanning Freq(H): 15.625KHz PAL
• Scanning Freq(V): 50Hz PAL
• Backlight Compensation: Auto
• Electronic Shutter: 1/50(1/60) ~ 1/100,000sec
• White Balance: Auto
• S/N Ratio: >48dB
• Gamma Correction: >0.45
• Locked Frequency: Yes
• Motion Detection: Yes
• Email Alert: Yes
• Operation Temperature: -10 ~ +50 deg C
• Recommended Range for Objects: 1-15M
• Max effective range: 15 M
• Transmission Range: 20m Maximum
• Recording Format:
  Picture: JPG
  Video: AVI
• Dimension: Diameter 53 x 62 (L) mm
• Power Adapter: 100-240V

System Requirement:

• CPU: 1.8 GHz or Higher
• Memory: 256 MB or more
• Hard Drive Space: 100 Mb for Software installation
• OS: Windows 2000/XP/Vista
• USB Connection: USB 2.0 Required

Product Notes

• Great product for security novice or expert
• You can view the camera images with AV line and wireless receiver at the same time, but you can only control camera functions from your computer
• USB DVR Receiver has 4 different frequency channels. It is possible to connect up to four cameras to one USB receiver, but they need to be tuned to different frequency(see Receiver Specification)

Package Content

• Wireless Mini Security Camera, Wireless USB DVR Receiver, Power Adaptor, AV Cable

Frequently Asked Questions

• Can I have 2 or more of this product setup within 10 meters distance from each other?
  No, you will need to tune the camera to different frequency if you want to do so. Otherwise, this will cause signal interference and the Wireless DVR will usually pickup the closer one.
• Do I have to turn nightvision on manually?
  No, the internal light sensor will automatically turn on the nightvision if light condition is low.
